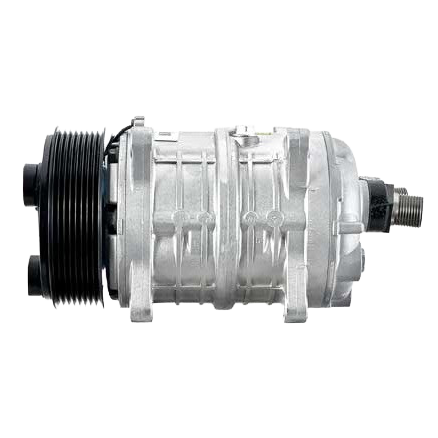

BT5-46122 12V TM16HD/HS A/C Compressor – Ear Mount, 8-Groove 125 mm, C Head

Description

Overview

The BT5-46122 TM16HD/HS compressor is designed for 12-volt mobile A/C systems that demand higher displacement than TM15 platforms while maintaining a compact, serviceable form factor. Because of its ear-mount design, this unit provides stable mounting in high-vibration environments commonly found in on-highway, vocational, and auxiliary HVAC installations.

At the same time, the 8-groove serpentine clutch ensures reliable belt engagement under continuous operating conditions. Additionally, the C-style O-ring pad head allows for clean hose routing in both OEM and aftermarket configurations. As a result, the BT5-46122 serves as a dependable replacement solution across multiple platforms.

---

Key Features

• 12-volt heavy-duty A/C compressor

• TM16HD / TM16HS compressor platform

• Ear-mount configuration

• 8-groove serpentine clutch

• 125 mm clutch diameter

• C-style O-ring pad rear head

• Horizontal #8 / #10 O-ring fittings

• 1-wire bullet electrical connection

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Type: TM16HD / TM16HS

• Manufacturer: Seltec / Valeo

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: CW / CCW

• Displacement: 9.7 cu.in.

• Number of Cylinders: 6

---

Mounting & Drive

• Mounting Style: Ear mount

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 125 mm

• Shaft Type: Splined shaft

---

Head & Fittings

• Head Type: C

• Fitting Port Position: Horizontal

• Fitting Style: Pad with C-style #8 / #10 O-ring manifold

• O-Ring #1: 0013

• O-Ring #2: 0015

---

Oil Specifications

• Oil Type: PAG46

• Factory Oil Charge: 180 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire bullet connector

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5051

---

Interchange / Cross-Reference Numbers

Primary References

• BTRAC: BT5-46122

• MEI / AirSource: 5805C

---

OEM / Manufacturer Numbers

• Seltec / Valeo:
  435-56068, 435-56122, 435-56322
  488-46122, 488-46322
  10056068, 100-56068
  10056122, 100-56122
  10056322, 100-56322

---

Supplier & Industry Cross References

• Texas Truck A/C: 300-6572, 300-6572A

• CoolStar / MEI: 340-2012

• ICE: 2521197, 2521522

• Manex: 03-00740

• Bergstrom: 526209

• Kysor: 1403138

• Kysor (Old): 402878

• Mobile Climate Control: 18-0074-35

• Omega: 20-10268

• Primatech: PTAC5805C

• Roadforce: RF999998521

• Truck Air / MEI: 26724

• TruckAC+: T4897

---

Additional Interchange Numbers

103-56122, 20-10268-HP, 5805C, 75R86132Q, 75R90862A, ABP N83 304228A, QP16-1197, RDT75R90862A, 2521197

---

Typical Applications

• On-highway trucks

• Vocational and fleet vehicles

• OEM and replacement mobile HVAC systems

• Auxiliary and specialty A/C installations
