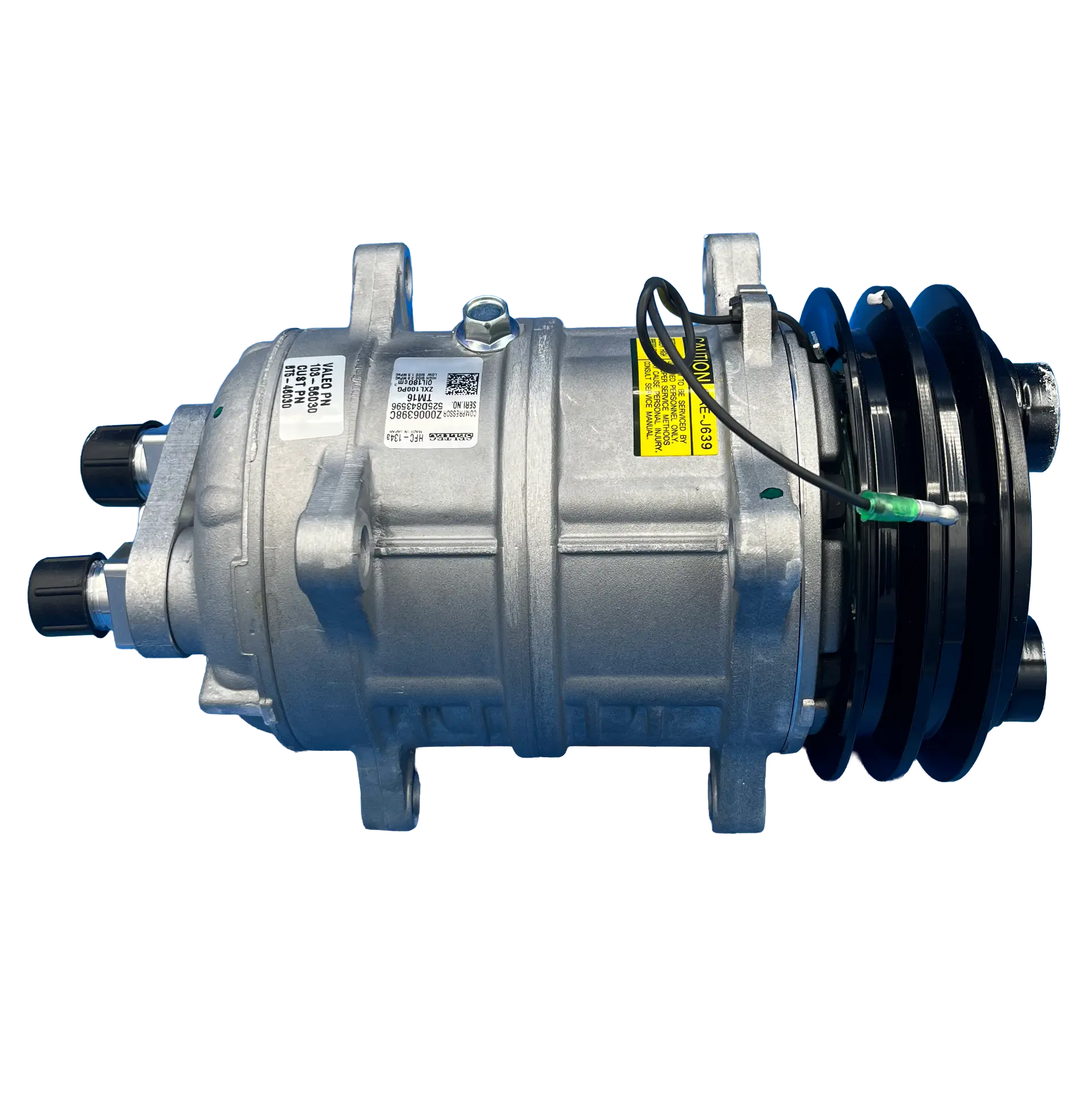

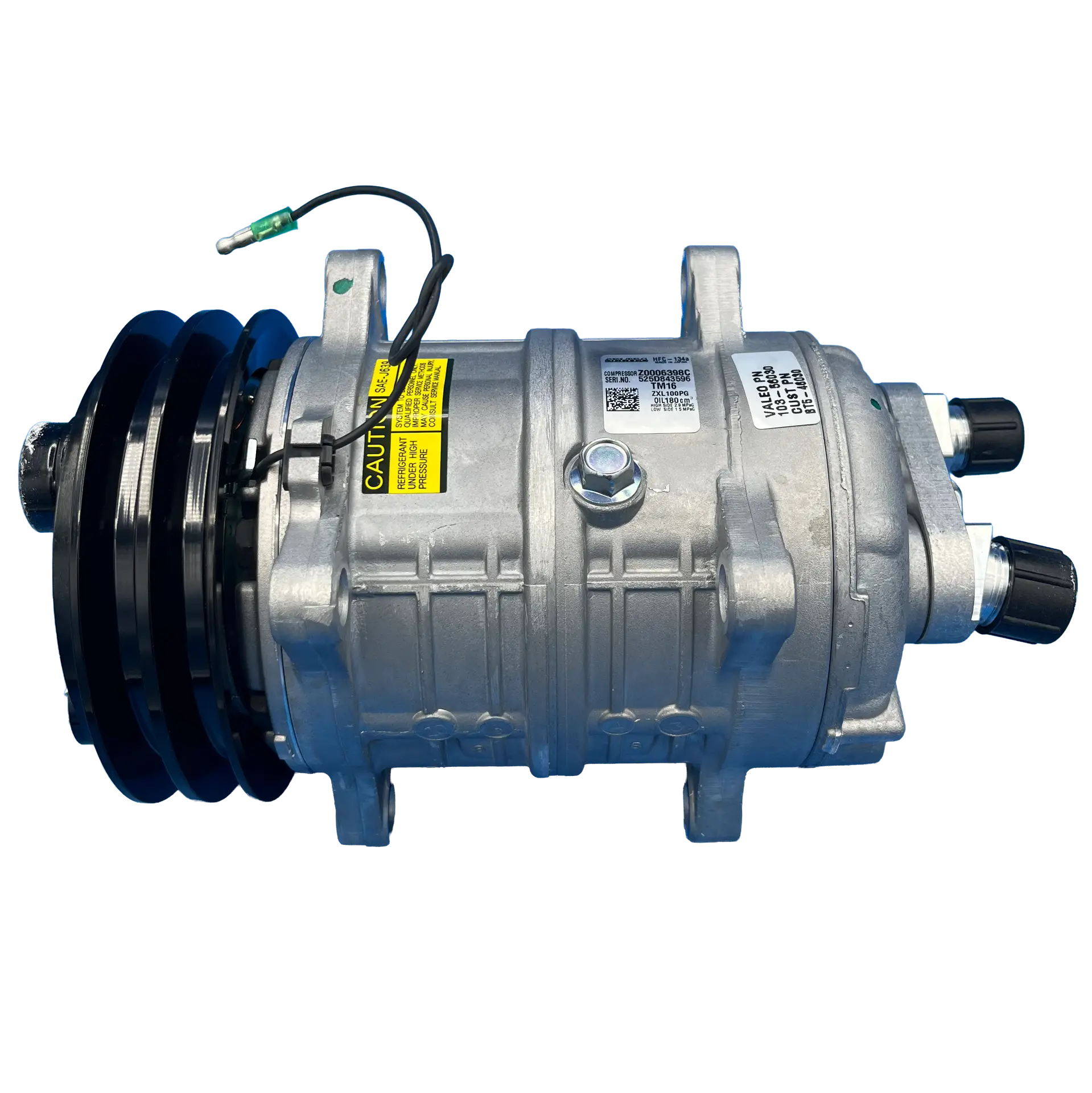

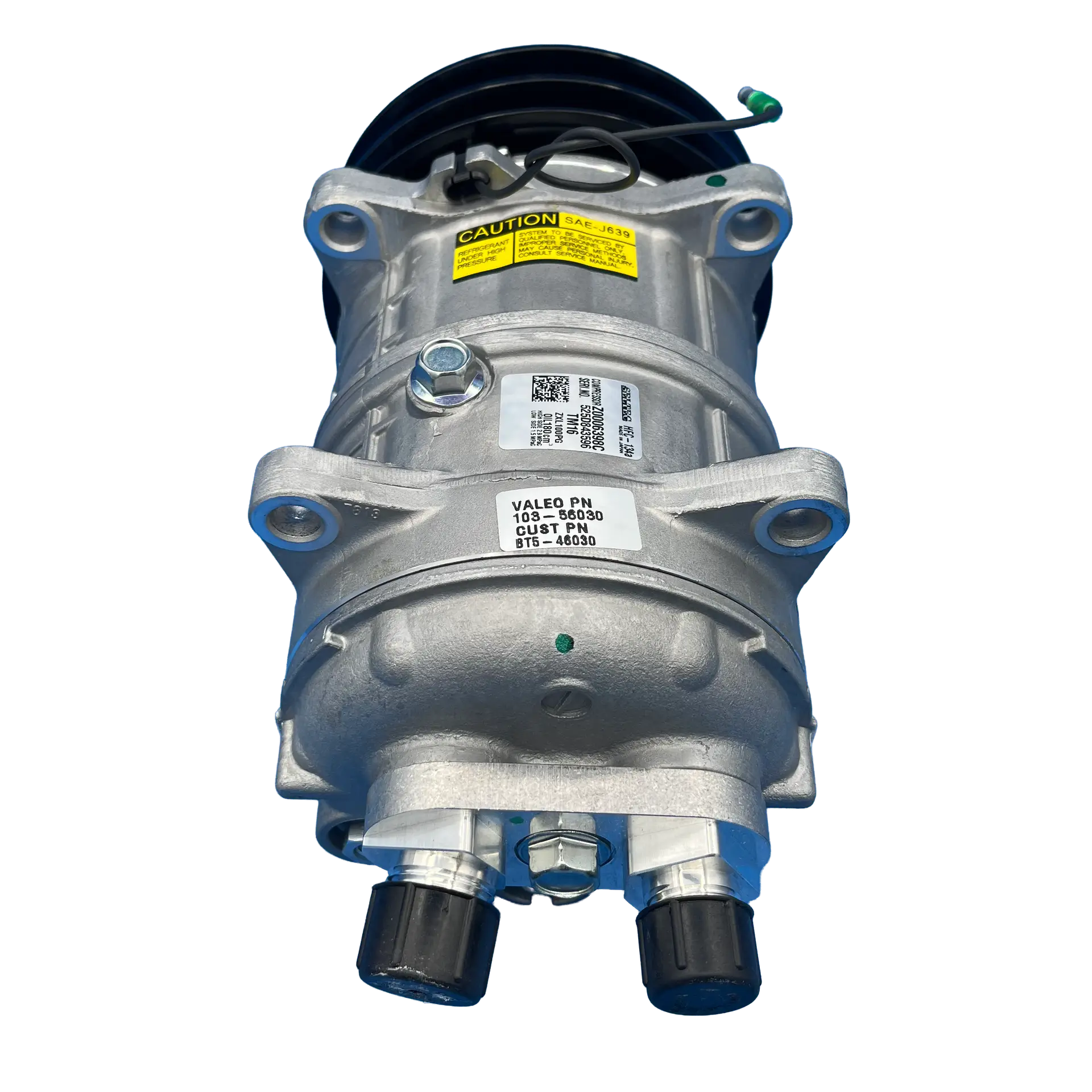

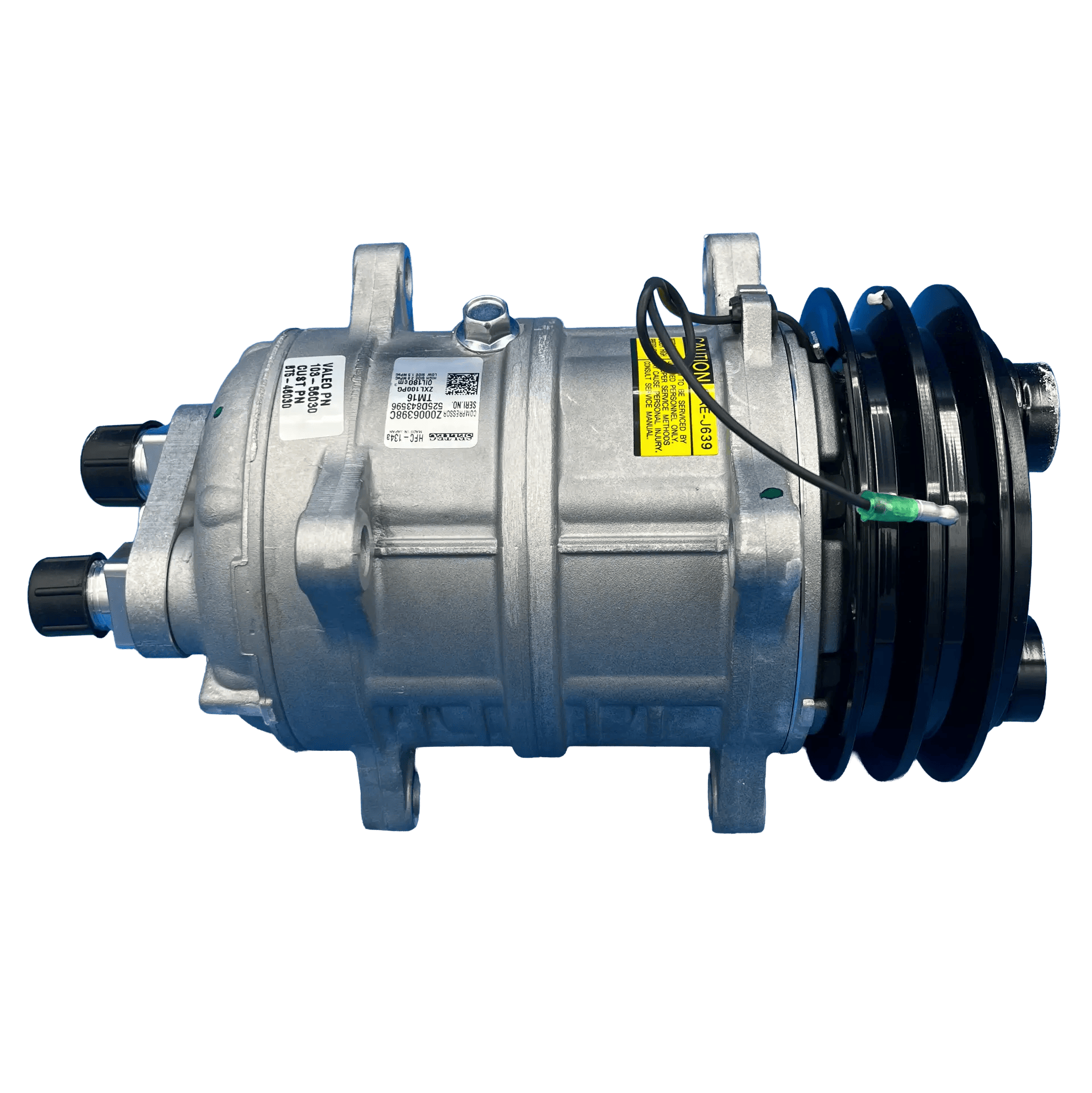

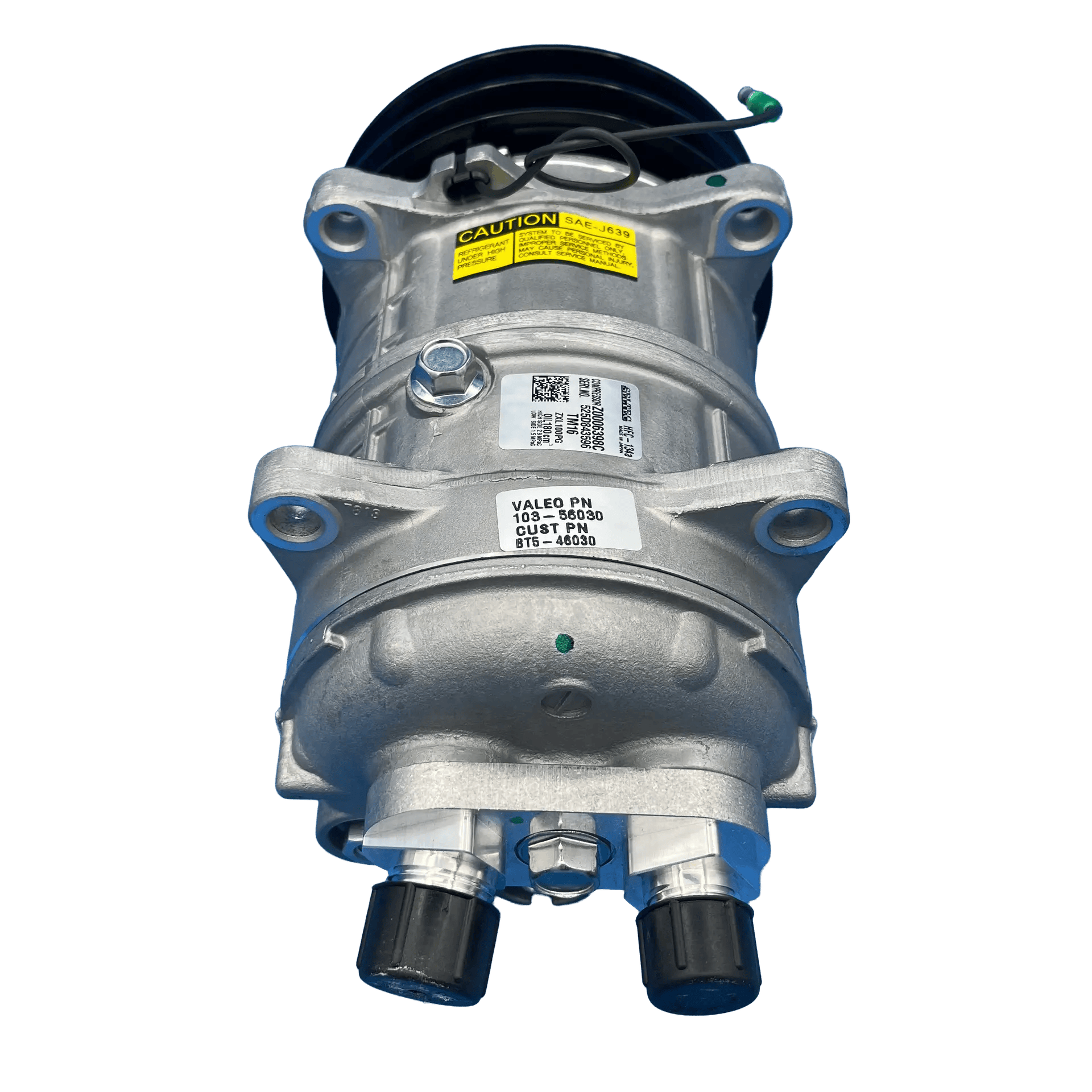

BT5-46030 12V TM-16HS A/C Compressor – Ear Mount, 2-Groove 135mm

Description

Overview

The BT5-46030 TM-16HS compressor is engineered for 12-volt mobile air conditioning systems that require a compact yet robust rotary compressor design. Because of its ear-mount configuration, the unit installs easily across multiple chassis and engine layouts. At the same time, the 2-groove, 135 mm clutch provides stable belt engagement in traditional dual-belt drive systems.

Additionally, this compressor uses a pad-style head with horizontal #8 / #10 O-ring ports, which supports clean hose routing in both OEM and aftermarket installations. As a result, it integrates smoothly into replacement and retrofit systems. Furthermore, its CW / CCW rotation capability simplifies application matching across various platforms.

---

Key Features

• 12-volt heavy-duty A/C compressor

• Valeo TM-16HS rotary compressor platform

• Ear-mount configuration

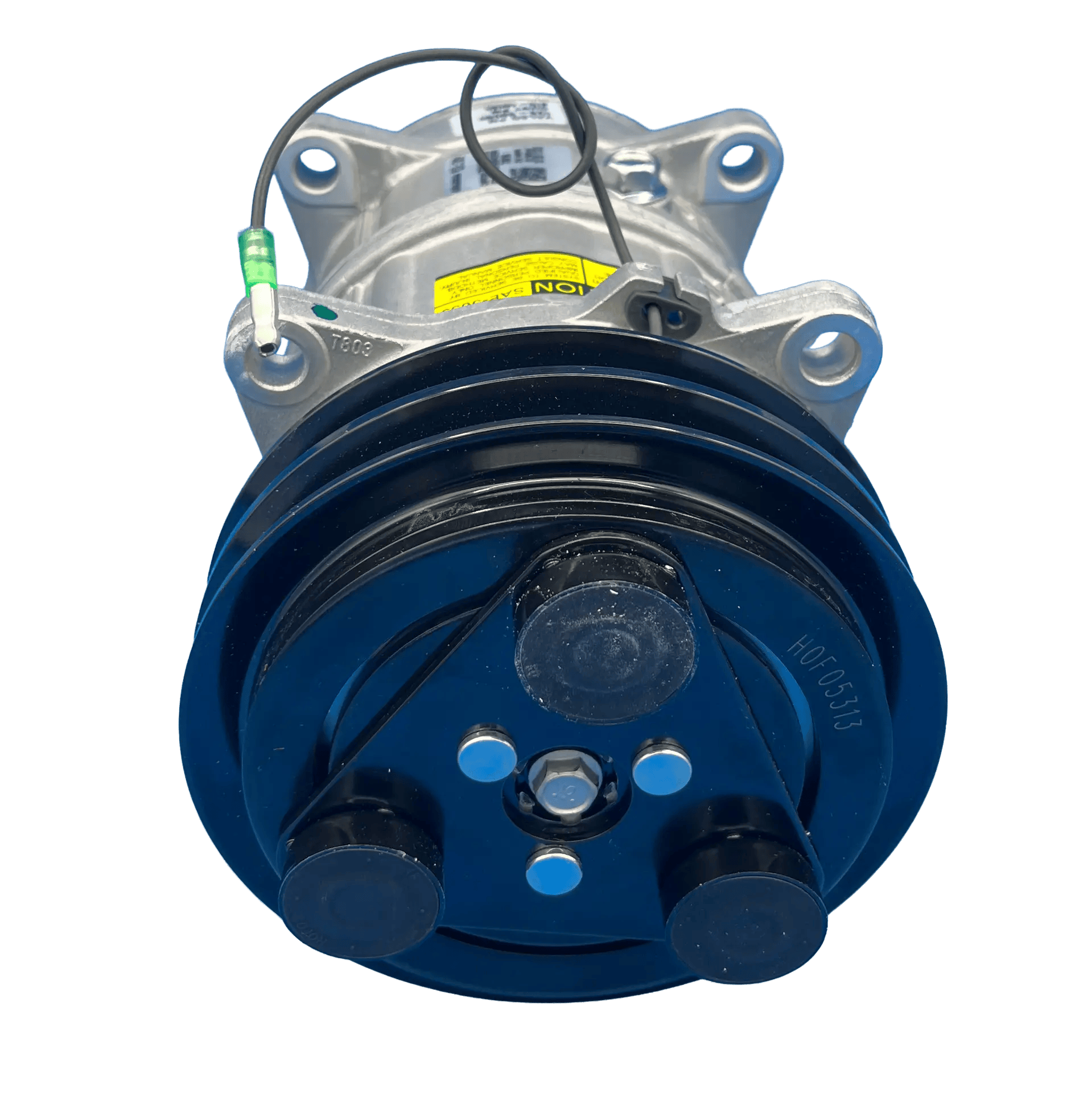

• 2-groove clutch for dual V-belt systems

• 135 mm clutch diameter

• Pad-style head with #8 / #10 O-ring fittings

• CW / CCW rotation capability

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Model: TM-16HS

• Manufacturer: Valeo / Seltec

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: CW / CCW

---

Mounting & Drive

• Mounting Style: Ear mount

• Drive Type: Belt-driven

• Clutch Grooves: 2 (A-groove)

• Clutch Diameter: 135 mm

• Hub Type: 3E

• Shaft Type: Splined

---

Head & Fittings

• Head Type: Pad style

• Fitting Type: O-ring

• Fitting Sizes: #8 / #10

• Fitting Orientation: Horizontal

---

Oil Specifications

• Oil Type: PAG46

• Factory Oil Charge: Approx. 180 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire bullet connector

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-46030

• OEM / Valeo: 103-56030, 488-46030

Aftermarket & Supplier Cross References

• Texas Truck A/C: 300-6571

• ACME: 1645-RR3-001

• AirSource / MEI: 5790

• Bergstrom: 525972

• CoolStar / MEI: 340-1812

• Fleetrite: ZGG705030

• ICE: 2521186, 2521523

• Kysor: 1403129

• Kysor (Old): 402861

• Omega: 20-46030, 20-46030-HP

• Primatech: PTAC5790

• Red Dot (Aftermarket): 75R86202, 75R86222

• Red Dot (Factory): RD-5-11523-0

• Roadforce: RF999997397

• Seltec / Valeo: 103-56330*, 488-46030

• Truck Air / MEI: 16862

• TruckAC+: T4836

• TTA/C: 50-4065

• Volvo: 85100563

---

Typical Applications

• Heavy-duty on-highway trucks

• Fleet and vocational vehicles

• OEM and replacement mobile HVAC systems

• Industrial and municipal equipment
