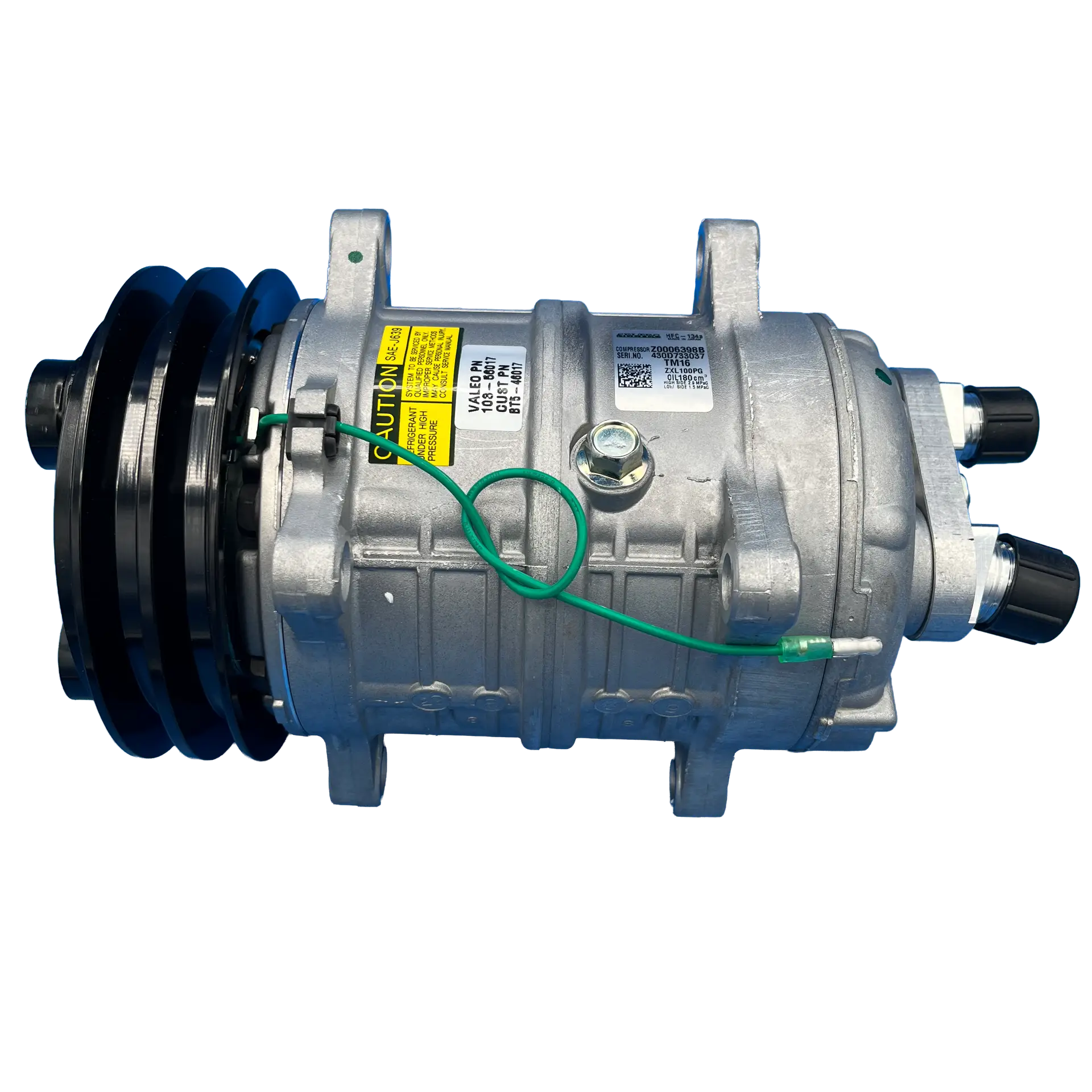

BT5-46017 24V TM-16HS A/C Compressor – Ear Mount, 2-Groove 135mm

Description

Overview

The BT5-46017 TM-16HS compressor is engineered for 24-volt mobile air conditioning systems that require a compact rotary-style compressor with dependable belt alignment. Because of its ear-mount design, the compressor installs easily in a wide range of OEM and retrofit applications. At the same time, the 2-groove, 135 mm clutch supports stable belt engagement in traditional V-belt drive systems.

Additionally, this unit uses horizontal O-ring ports, which allow for clean hose routing and secure sealing in mobile HVAC installations. As a result, it integrates smoothly into replacement systems while maintaining long-term reliability under continuous operation.

---

Key Features

• 24-volt heavy-duty A/C compressor

• TM-16HS rotary compressor platform

• Ear-mount configuration

• 2-groove clutch for dual V-belt systems

• 135 mm clutch diameter

• Horizontal O-ring fittings

• Designed for R134a refrigerant

• Built for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Type: TM-16HS (rotary)

• Voltage: 24V

• Refrigerant Type: R134a

• Condition: New

---

Mounting & Drive

• Mounting Style: Ear mount

• Drive Type: Belt-driven

• Clutch Grooves: 2

• Clutch Diameter: 135 mm (≈ 5.3″)

---

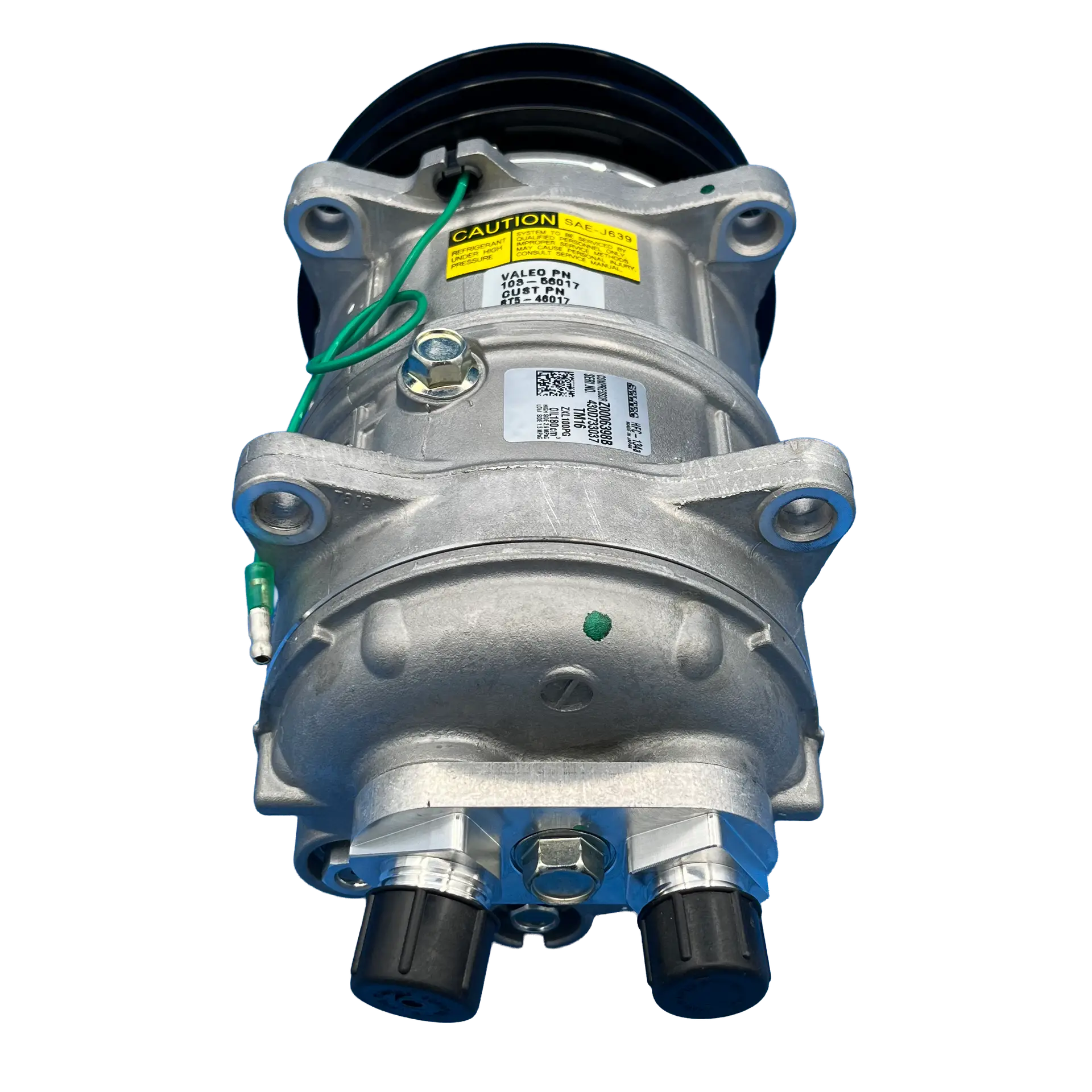

Head & Fittings

• Fitting Type: O-ring

• Fitting Orientation: Horizontal

---

Oil Specifications

• Oil Type: PAG

• Oil Quantity: Confirm per application

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-46017

OEM / Aftermarket Interchange:
103-56017, 20-46017-HP, 75R90854A, QP16-1182, RDT75R90854A, 2521182

---

Typical Applications

• Heavy-duty trucks with 24V systems

• Fleet and vocational vehicles

• Industrial and municipal equipment

• Replacement mobile HVAC installations
