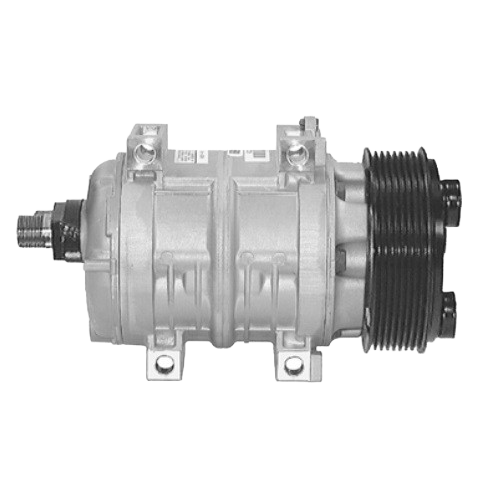

BT5-45084 12V TM15 A/C Compressor – Direct Mount, 8-Groove 125mm, C Head

Description

Overview

The BT5-45084 TM15 compressor is engineered for 12-volt mobile air conditioning systems that require a direct-mount design paired with a serpentine belt drive. Because of this configuration, the compressor provides improved alignment and reduced vibration compared to traditional ear-mount designs. At the same time, the 8-groove, 125 mm clutch supports stable belt engagement on high-accessory engines.

Additionally, this unit uses a C-style head with horizontal O-ring pad ports, which allows for clean hose routing in both OEM and aftermarket installations. As a result, it integrates easily into replacement and retrofit systems. Furthermore, its CW / CCW rotation capability simplifies application matching across multiple engine layouts.

---

Key Features

• 12-volt TM15 mobile A/C compressor

• Direct-mount configuration for improved alignment

• 8-groove serpentine clutch

• 125 mm clutch diameter

• C-style cylinder head

• Horizontal #8 / #10 O-ring pad fittings

• CW / CCW rotation capability

• Designed for multi-fit mobile HVAC applications

---

Compressor Specifications

General

• Compressor Type: TM15

• Manufacturer: Seltec / Valeo

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: CW / CCW

• Displacement: 9.0 cu.in.

• Number of Cylinders: 6

---

Mounting & Drive

• Mounting Style: Direct mount

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 125 mm

• Shaft Type: Splined shaft

---

Head & Fittings

• Head Type: C

• Fitting Port Position: Horizontal

• Fitting Style: Pad with C-style O-ring manifold

• Fitting Size: #8 / #10

---

Oil Specifications

• Oil Type: PAG46

• Factory Oil Charge: 150 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-wire bullet connector

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5051

• Replacement Head Assembly: 5591

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-45084

• MEI: 5767

• CoolStar: 340-1440

• ICE: 2521281

• Seltec / Valeo: 435-55084, 488-45084

• Truck Air: 03-3657

Additional Interchange References:
103-55084, 20-45084, 4379-RD5103281P, 75R86162Q, ABP N83 304489Q, ACC6440, CO 4084I, QP15-1281, RDHRD5103281P, RDT75R86162Q

---

Typical Applications

• Multi-fit mobile A/C systems

• Fleet and vocational vehicles

• Retrofit and replacement HVAC installations

• Direct-mount TM15 compressor applications
