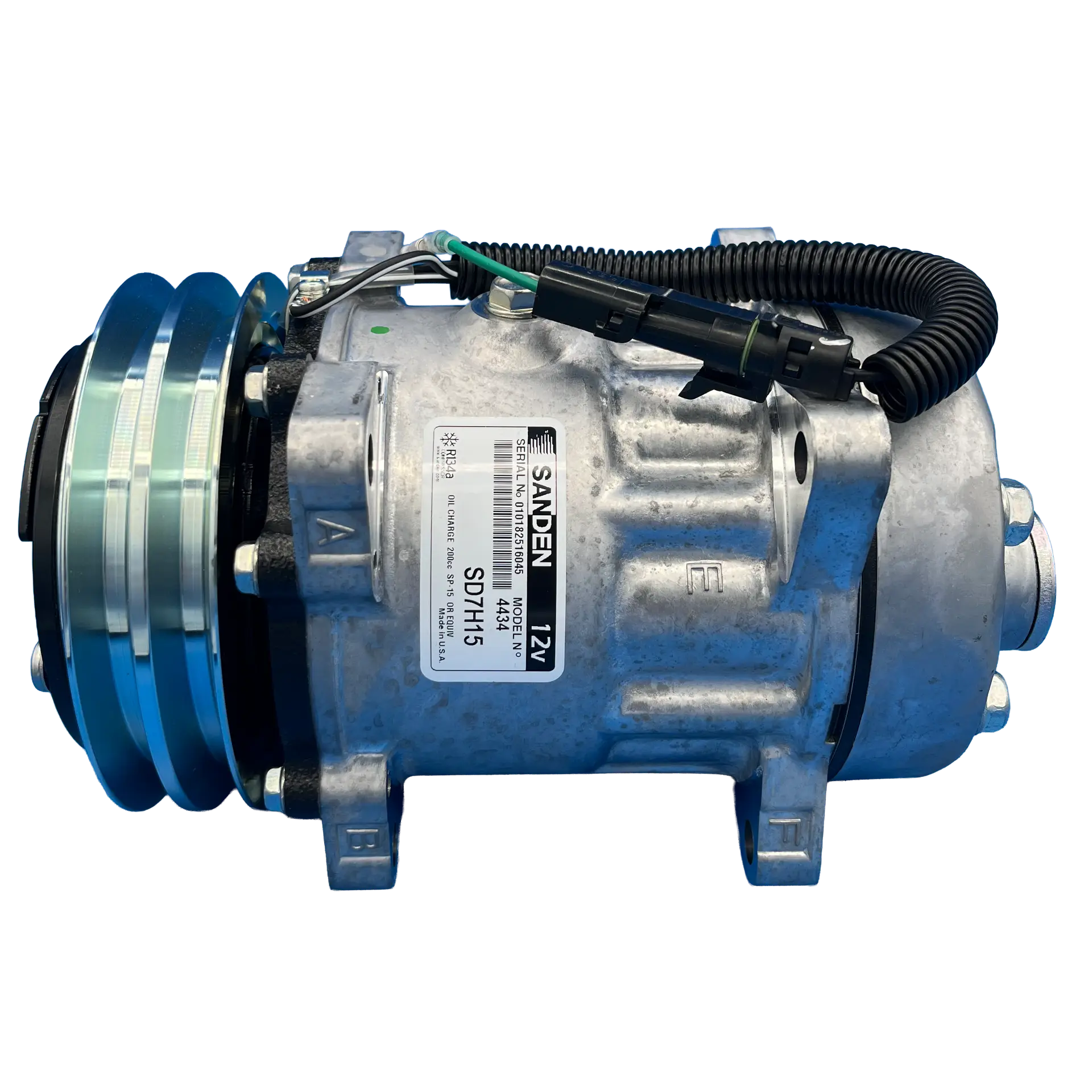

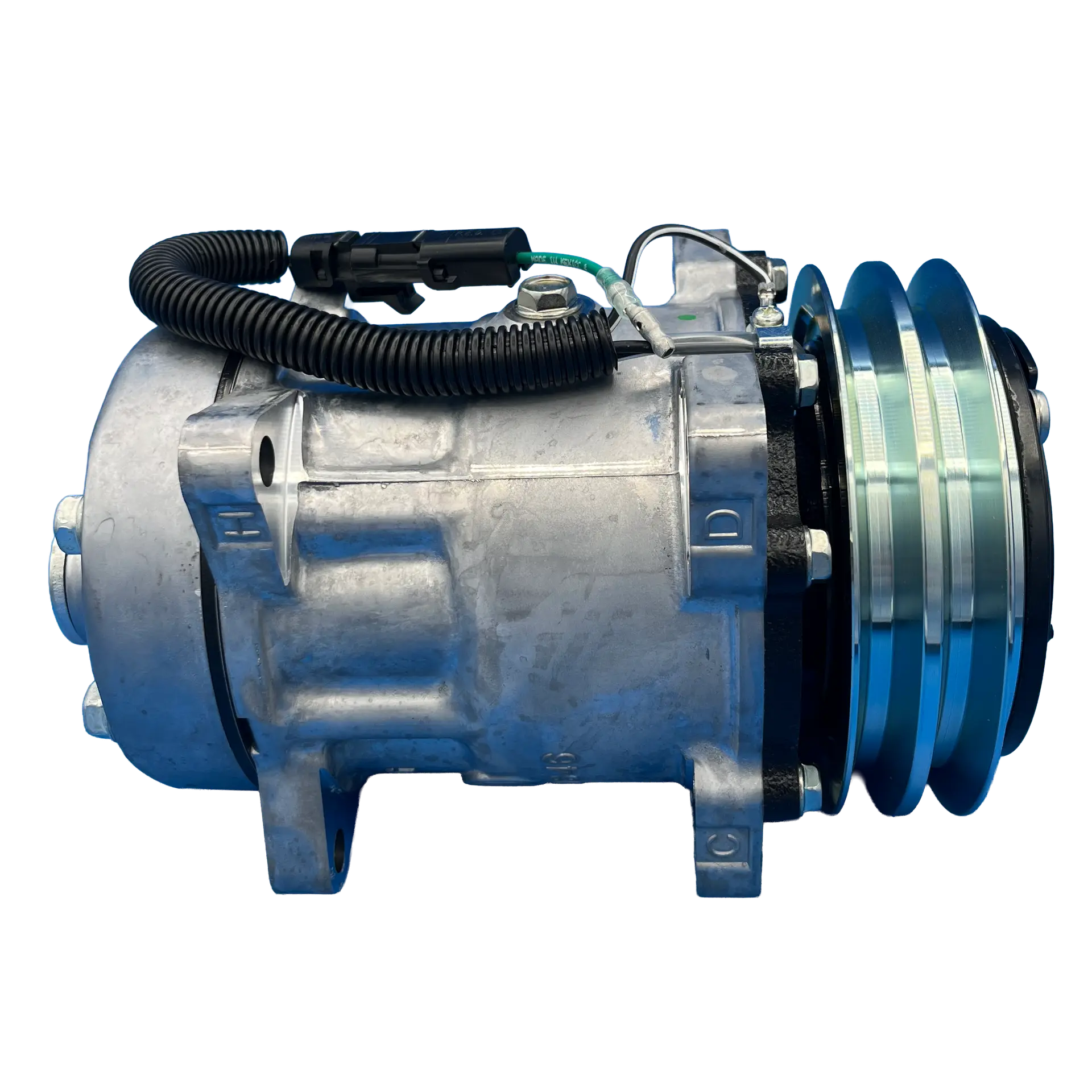

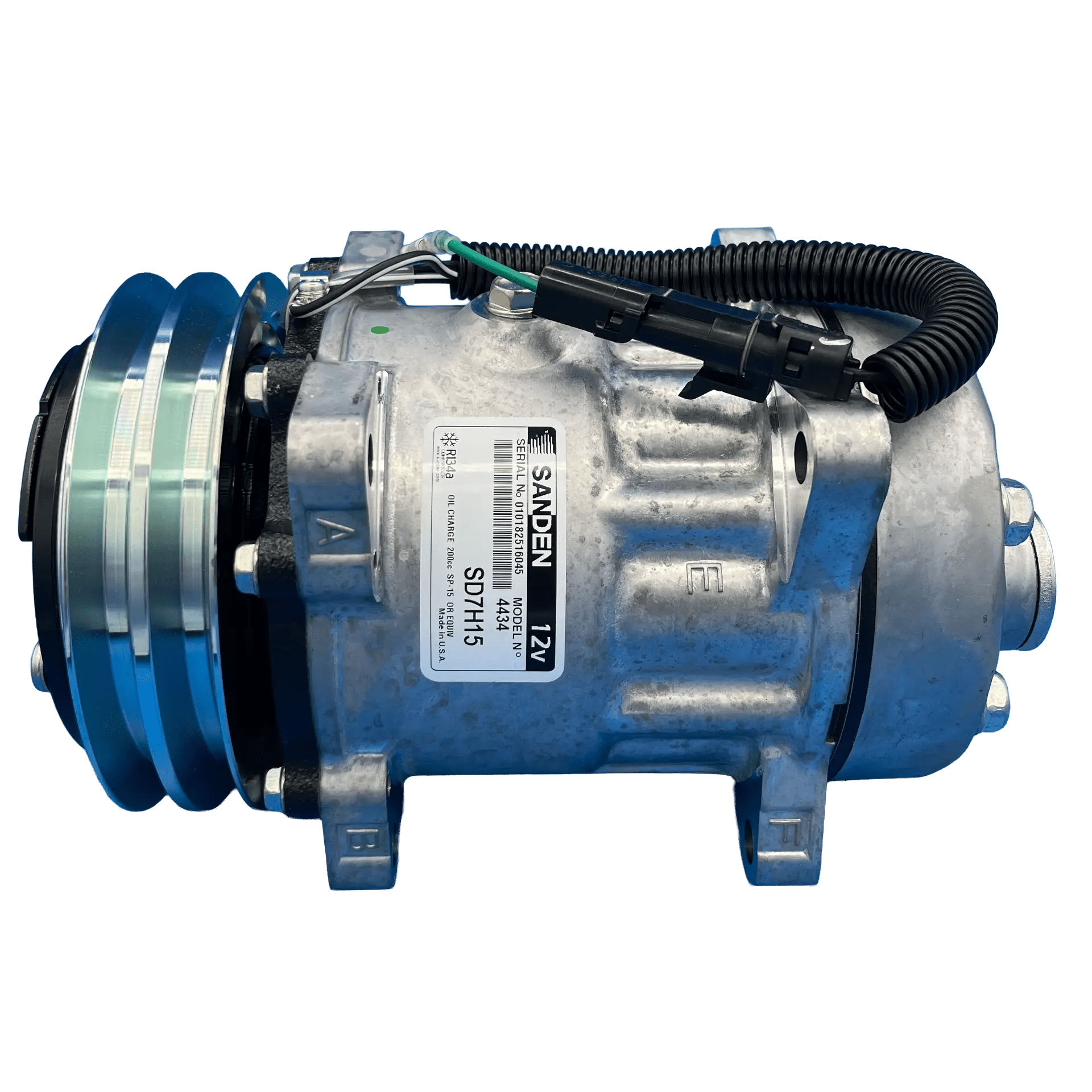

BT5-4458 12V Heavy-Duty A/C Compressor – SD7H15HD-FLX7, Ear Mount, 2-Groove 132mm

Description

Overview

The BT5-4458 SD7H15HD-FLX7 compressor is engineered for 12V heavy-duty mobile HVAC systems that rely on traditional dual 1/2-inch V-belt drives. Because of its ear 8-long mounting design, the compressor provides improved stability in applications exposed to vibration and harsh operating conditions. At the same time, the 2-groove, 132 mm clutch supports consistent belt engagement across a wide range of OEM and aftermarket platforms.

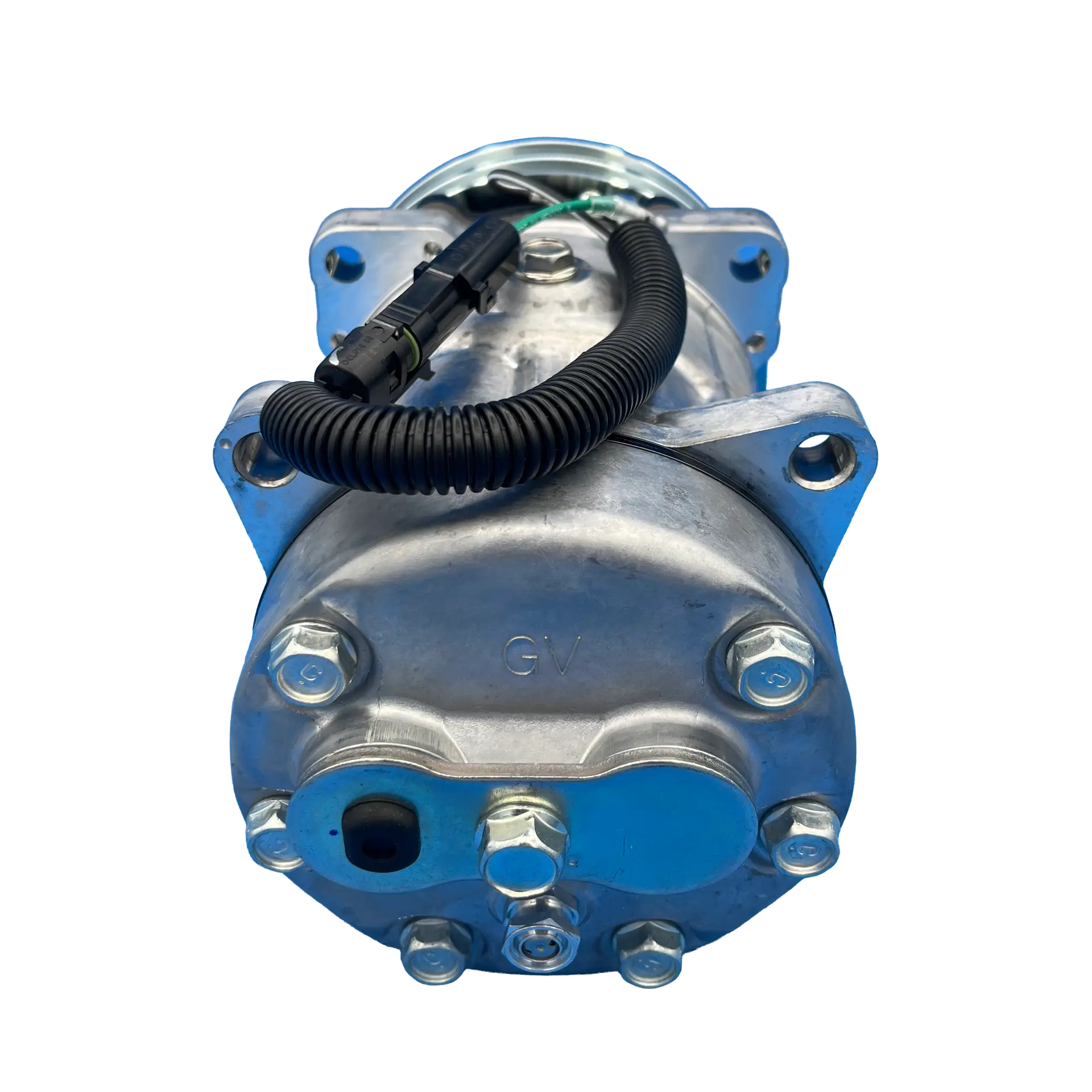

Additionally, this unit uses a GV-style cylinder head with rear universal O-ring FLX-7 pad fittings, which allows for flexible hose routing in multi-fit installations. As a result, it integrates easily into both replacement and retrofit systems. Furthermore, clockwise rotation and a 1-wire Packard electrical interface with integrated diode protection ensure compatibility with standard heavy-duty compressor control circuits using R134a refrigerant.

---

Key Features

• 12-volt heavy-duty A/C compressor for mobile HVAC systems

• SD7H15HD-FLX7 compressor platform

• Ear 8-long mounting configuration for vibration resistance

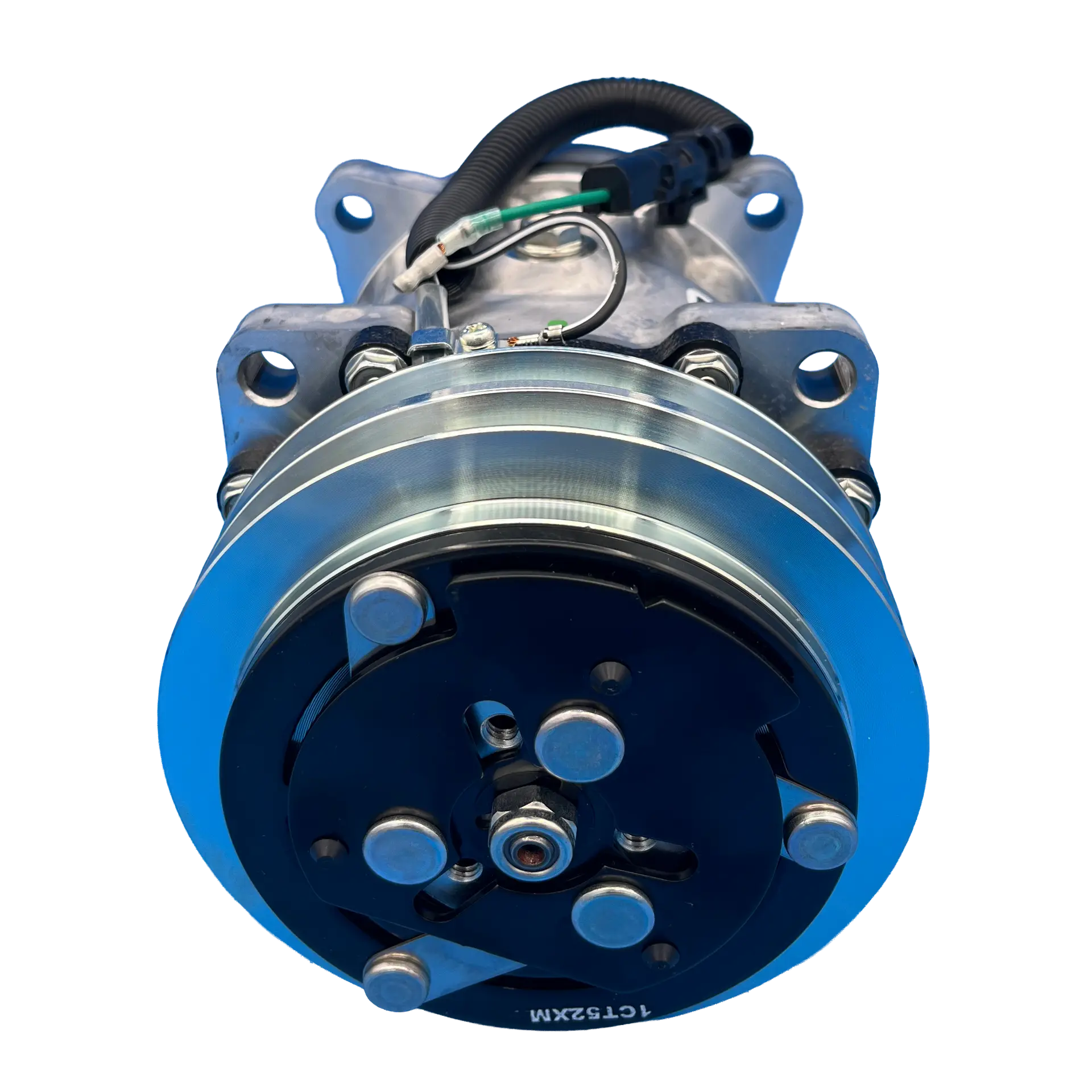

• 2-groove clutch for dual V-belt systems

• 132 mm clutch diameter for stable belt engagement

• GV cylinder head for proven durability

• Rear universal O-ring FLX-7 pad fittings

• Clockwise rotation for standard system compatibility

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15HD-FLX7

• Style: Heavy Duty (HD)

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in. (155 cc)

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Ear, 8 Long

• Drive Type: Belt-driven

• Belt Type: Dual 1/2″ V-Belts

• Clutch Grooves: 2

• Clutch Diameter: 132 mm

• Shaft Type: Long Key Shaft

---

Head & Fittings

• Head Type: GV

• Fitting Port Position: Horizontal

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 200 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-Wire Male Packard

• Connector Part Number: 12015791

• Diode Protection: Integrated

• Jumper: Bullet jumper included

---

Service & Replacement Components

• Replacement Clutch Assembly: 5116

• Replacement Head Assembly: 50003

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4458

• MEI: 5290

• Alliance: 304064, 304234

• CoolStar: 330-1710

• DTAC: 01-05434

• Sanden: 4434, 4447

• School Bus Manufacturers: 1887-RR3-004

• Trans Air: 512267

• Truck Air: 03-3709

Additional Interchange References:
1401225, 1410032, 20-14434, 240-9719, 300-5503, 402323, 4379-RD5108990, 4379-RD5108990P, 4525, 4529, 6630, 6642, 6677, 6678, 75R89422, ABP N83 304064, ACC2710, RDHRD5108990P, RDT75R89422, ZGG705181, 509-571

---

Typical Applications

• School buses and transit vehicles

• Fleet and vocational trucks

• Multi-fit OEM and replacement HVAC systems

• Mobile and auxiliary air conditioning applications
