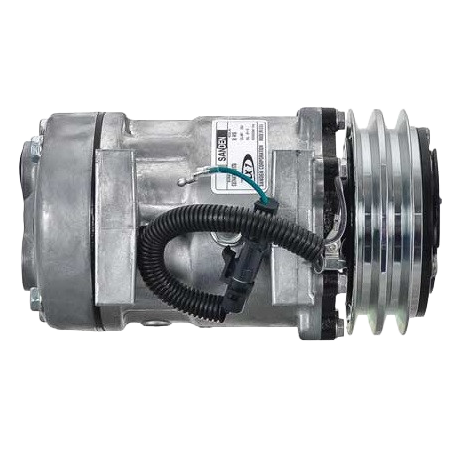

BT5-4419 12V Heavy-Duty A/C Compressor – SD7H15HD, Direct Mount, 2-Groove 125mm

Overview

The BT5-4419 SD7H15HD compressor is engineered for 12V heavy-duty and fleet HVAC systems that utilize traditional dual 1/2-inch V-belt drives. Because of its direct long-mount design, the compressor provides rigid installation and improved stability under continuous operation. At the same time, the 2-groove, 125 mm clutch supports reliable belt engagement in legacy and mixed-platform vehicle configurations.

Additionally, this compressor uses a GV-style cylinder head with rear universal O-ring FLX-7 pad fittings, which allows for flexible hose routing across multiple OEM and aftermarket installations. As a result, it integrates easily into existing systems. Furthermore, clockwise rotation and a 1-wire Packard electrical interface with integrated diode protection ensure compatibility with standard heavy-duty compressor control circuits operating on R134a refrigerant.

Key Features

• 12-volt heavy-duty A/C compressor

• SD7H15HD compressor platform

• Direct long-mount configuration

• 2-groove clutch for dual V-belt systems

• 125 mm clutch diameter

• GV cylinder head

• Rear universal O-ring FLX-7 pad fittings

• Clockwise rotation

• Designed for continuous mobile HVAC operation

Compressor Specifications

General

• Compressor Family: SD7H15

• Model: SD7H15HD

• Style: Heavy Duty (HD)

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in. (155 cc)

• Number of Cylinders: 7

Mounting & Drive

• Mounting Style: Direct, Long

• Drive Type: Belt-driven

• Belt Type: Dual 1/2″ V-Belts

• Clutch Grooves: 2

• Clutch Diameter: 125 mm

• Shaft Type: Long Key Shaft

Head & Fittings

• Head Type: GV

• Fitting Port Position: Horizontal

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

• Fitting Size: Pad M10

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 200 cc

Electrical Specifications

• System Voltage: 12V

• Wire Type: 1-Wire Male Packard

• Connector Part Number: 12015791

• Wire End: T3D / J1

• Diode Protection: Integrated

• Jumper: Bullet jumper included

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4419

• MEI: 5288

• Sanden: 4401, 4419

• Alliance: 304094

• Carrier: 18-00093-14

• CoolStar: 330-1504, 330-3404

• DTAC: 01-05419

• Kysor: 1410030

• School Bus Manufacturers: 1888-RR3-006

• Truck Air: 03-3702T, 03-3802T

Additional Interchange References:
1401200, 20-14419, 247-3514, 300-5504, 402297, 4379-RD5110060, 4379-RD5110060P, 4428, 75R89462, ABP N83 304094, ACC2504, CTT00002335, FLTAC2014419, LE44280, RDHRD5110060P, RDT75R89462, ZGG705138

Typical Applications

• On-highway heavy-duty trucks

• School buses and transit vehicles

• Vocational and fleet equipment

• Multi-fit OEM and replacement mobile HVAC systems
