BT5-4417 12V Heavy-Duty A/C Compressor – SD7H15HD, 8-Groove 119mm, Direct Mount

Description

Overview

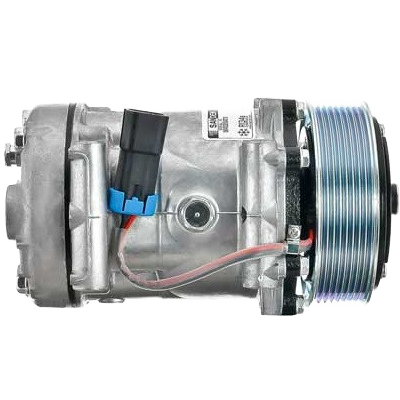

The BT5-4417 SD7H15HD compressor is designed for 12V heavy-duty mobile A/C systems that require a direct long-mount configuration and a serpentine belt drive. Its 119 mm 8-groove clutch supports consistent belt engagement in modern high-accessory-load applications commonly found in on-highway and vocational vehicles.

This compressor features a GH cylinder head with horizontal slimline pad fittings, allowing for compact hose routing and OEM-style integration. Clockwise rotation and a 2-wire Packard electrical connector with diode protection make it compatible with standard heavy-duty compressor control circuits using R134a refrigerant.

---

Key Features

• 12-volt heavy-duty A/C compressor

• SD7H15HD compressor platform

• Direct long-mount configuration

• 8-groove serpentine clutch

• 119 mm clutch diameter

• GH cylinder head

• Horizontal slimline pad fittings

• Clockwise rotation

• Designed for continuous mobile HVAC operation

---

Compressor Specifications

General

• Compressor Model: SD7H15HD

• Voltage: 12V

• Refrigerant Type: R134a

• Rotation: Clockwise (CW)

• Displacement: 9.5 cu.in.

• Number of Cylinders: 7

---

Mounting & Drive

• Mounting Style: Direct, Long

• Drive Type: Belt-driven

• Belt Type: Serpentine

• Clutch Grooves: 8

• Clutch Diameter: 119 mm

• Shaft Type: Long Key Shaft

---

Head & Fittings

• Head Type: GH

• Fitting Port Position: Horizontal

• Fitting Style: Pad with slimline connections

• Fitting Size: H Pad

• O-Ring: 0140

---

Oil Specifications

• Oil Type: PAG100

• Factory Oil Charge: 300 cc

---

Electrical Specifications

• System Voltage: 12V

• Wire Type: 2-Wire Female Packard

• Connector Part Number: 15300002

• Wire End: T5D

• Diode Protection: Yes

---

Interchange / Cross-Reference Numbers

• BTRAC: BT5-4417

• MEI: 5333

• Alliance: 304003, 304123, 304543, 304783

• CoolStar: 330-2210

• DTAC: 01-04417

• Industry ID: 20-04485, 20-04485-AM

• Kysor: 1401338, 1401346, 1410007

• Murray: 275066

• Navistar: 2602821C91, 2602821-C91

• Sanden: 4417, 4485, 4818, 4884

• Truck Air: 03-0609

• OEM: ABP N83 304543

---

Typical Applications

• On-highway heavy-duty trucks

• Vocational and fleet vehicles

• OEM and replacement mobile HVAC systems

• Medium to severe-duty air conditioning applications
