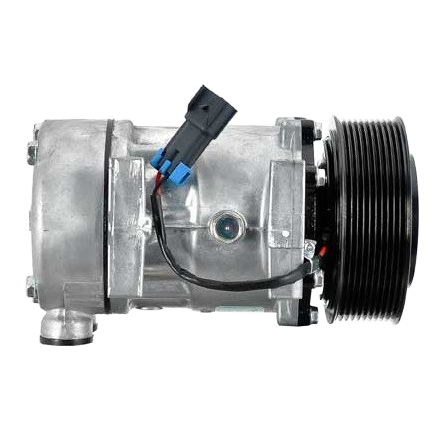

BT5-4384 12V Super Heavy-Duty A/C Compressor – SD7H15 Super HD, 10-Groove 126mm

Description

Product Overview

The BT5-4384 is built on Sanden’s proven SD7H15 Super HD platform, making it well suited for vehicles and equipment that demand consistent cooling under continuous operation. Its 10-groove serpentine clutch provides strong belt contact while maintaining efficient power transfer.

Additionally, the compressor supports R134a refrigerant systems and uses a GQ-style head with lateral 90-degree O-ring pad ports, which helps ensure clean hose routing and reliable sealing. As a result, it delivers OEM-level fitment, durability, and service life in heavy-duty and vocational environments.

---

Key Features

• SD7H15 Super HD compressor platform

• 12V electrical system compatibility

• 126 mm 10-groove serpentine clutch

• Direct short-mount design

• GQ cylinder head with lateral 90° pad fittings

• Designed for R134a refrigerant

• Factory-filled with PAG100 oil

• Diode and thermal fuse electrical protection

---

Essential Specifications

• Compressor Family: SD7H15 Super HD

• Style: Super Heavy Duty

• Mount Type: Direct, Short

• Refrigerant: R134a

• Displacement: 9.5 cu.in.

• Rotation Direction: Clockwise (CW)

• Oil Type: PAG100

• Oil Quantity: 300 cc

• Cylinder Head: GQ

• Port Position: Lateral

• Fitting Style: O-Ring Pad @ 90°

• Shaft Type: Long Key Shaft

• Number of Cylinders: 7

---

Pulley & Clutch Specifications

• Clutch Diameter: 126 mm

• Number of Grooves: 10

• Belt Type: Serpentine

---

Electrical Specifications

• Voltage: 12V

• Wire Type: 2-Wire Female Packard

• Connector Part Number: 15300002

• Protection: Diode and thermal fuse

---

Service & Replacement Components

• Replacement Clutch Assembly: 50412S

• Replacement Head Assembly: 50001

• O-Ring #1: 0013

• O-Ring #2: 0015

---

Interchange Numbers

1000712782, 1401446, 1CC4696, 300-4296, 4384, 525749, 5360, 75R84272, 97551, ABP N83 304143, ACC2900, F69-6003-141, RDT75R84272, 54384, 509-6472

---

Applications

Commonly used in:

• Heavy-duty trucks

• Vocational and fleet vehicles

• Severe-duty mobile HVAC systems

• Specialty and high-accessory-load equipment

---

Installation Notes

Always verify belt alignment, clutch clearance, and port orientation prior to installation. Proper evacuation and charging procedures are required to ensure correct lubrication and long compressor service life.
