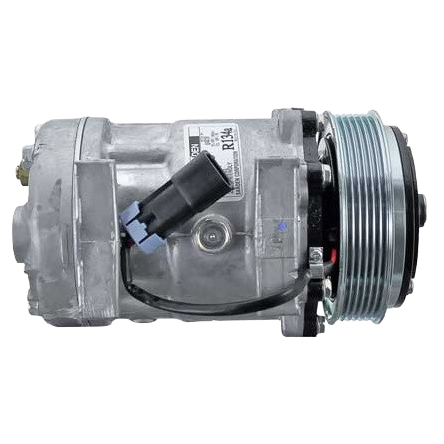

BT5-4019 Compressor – Sanden SD7H15E 12V R134a, 119mm 6-Groove Clutch, GH Head

Description

The BT5-4019 compressor is built on the Sanden SD7H15E platform, a high-capacity 7-cylinder design engineered for continuous-duty mobile HVAC systems such as buses and people movers.

This unit operates on 12 volts, uses R134a refrigerant, and is factory filled with 300cc of PAG100 oil. The GH head configuration incorporates horizontal slimline pad fittings, allowing reduced hose profile and improved clearance in tight engine compartments common to bus installations.

A 119mm 6-groove serpentine clutch ensures reliable belt engagement under sustained load, while the long key shaft and direct-long mount provide OE-correct installation. The 2-wire female Packard connector with diode protection supports proper clutch operation and electrical system protection.

---

Key Features

• Sanden SD7H15E compressor platform

• Designed for bus HVAC applications

• 12V operation with R134a refrigerant

• High displacement (13 cu. in.) output

• 119mm 6-groove serpentine clutch

• GH head with slimline pad fittings

• Direct-long mount with long key shaft

• Factory-filled with PAG100 oil

---

Essential Specifications

• BTRAC SKU: BT5-4019

• MEI Part No.: 54019

• Sanden Model: SD7H15E

• Sanden Part No.: 4019

• Application: Bus Applications

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: CW

• Number of Cylinders: 7

• Displacement: 13 cu. in.

• Mounting Type: Direct Long

• Shaft Type: Long Key Shaft

• Head Type: GH

• Fitting Port Position: Horizontal

• Fitting Style: Pad w/ Slimline Connections

• Clutch Diameter: 119mm

• Number of Grooves: 6

• Belt Type: Serpentine

• Oil Type: PAG100

• Factory Oil Charge: 300cc

• Wire Type: 2-Wire Female Packard #15300002

• Diode Protection: Yes

---

Service Information

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: 50000

---

OEM & Interchange Numbers

• Freightliner: 22-64073-000

• Truck Air: 03-3815

• Omega: 20-04019

• Texas Truck AC: 300-4261

• Sanden: 4019, 4019U1

• MEI: 54019

• Red Dot: 75R89792

---

Applications

• Transit and coach bus HVAC systems

• Heavy-duty mobile air conditioning

• 12-volt R134a bus A/C applications
