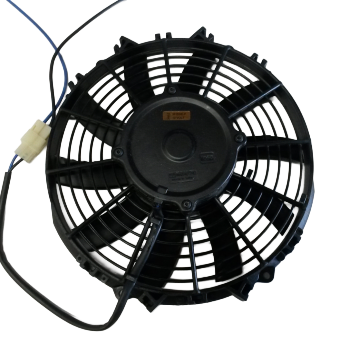

BT3-0151 Fan – 10 Inch Reversible, 12V
$70.21
The BTRAC BT3-0151 is a 10-inch, 12-volt low-profile reversible axial fan designed for mobile HVAC and equipment cooling applications. It delivers high airflow, supports both pusher and puller configurations, and features a sealed, long-life motor for harsh operating environments.
In stock (can be backordered)
Description
The BTRAC BT3-0151 axial fan is engineered for mobile HVAC and equipment cooling systems operating on 12-volt electrical platforms. It is based on the Maradyne Champion Series M103K platform and uses a 10-inch low-profile axial design to deliver strong airflow while maintaining minimal installation depth.
Because the fan is reversible, it can operate as either a pusher or a puller, depending on application needs. As a result, it adapts easily to condenser, radiator, and auxiliary cooling layouts. In addition, the S-Blade fan design is dynamically balanced, which helps provide smooth operation and reduced noise during continuous use.
The fan uses a sealed, waterproof, and dustproof motor rated to IP68, which supports reliable performance in environments exposed to moisture, dust, vibration, and temperature extremes. Therefore, it is well suited for on-highway trucks, off-highway equipment, and vocational vehicles.
Furthermore, the BT3-0151 delivers up to 950 CFM of airflow at zero static pressure, while maintaining efficient current draw. Because of this performance balance, it serves as a dependable OEM-style replacement fan for high-demand mobile cooling systems.
Specifications
Electrical
-
Voltage: 12V DC
-
Motor Power: 130W
-
Current Draw: 7.9 amps
Fan & Performance
-
Fan Type: Axial
-
Diameter: 10 in
-
Airflow (Free Flow): 950 CFM
-
Direction: Reversible (pusher or puller)
-
Blade Design: S-Blade
Construction
-
Motor Type: Long-life sealed motor
-
Ingress Protection: IP68 (waterproof & dustproof)
-
Balance: Dynamically balanced for smooth operation
-
Connector: Locking mating pigtail connector (included)
Physical
-
Overall Depth: 2.62 in
-
Approximate Weight Class: Low-profile fan assembly
Cross Reference Numbers
M103K
Important Notes
-
Designed for 12-volt mobile HVAC and cooling systems
-
Reversible operation supports both pusher and puller configurations
-
IP68-rated motor supports extreme operating environments
-
Low-profile design helps fit tight installations
-
Always verify mounting clearance, airflow direction, and electrical compatibility before installation
Additional information
| Weight | 4.51875 lbs |
|---|---|
| Voltage |
