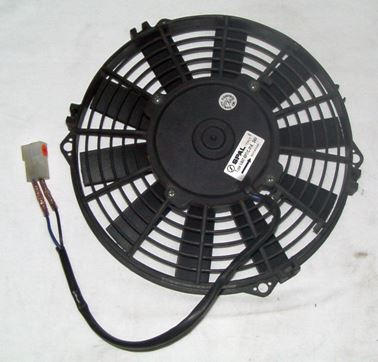

9″ Low-Profile Puller Fan, Straight Blade, 24V (BT3-0102-4)

Description

Overview

Choose BT3-0102-4 when space is tight yet airflow matters.
It pulls air through dense cores; meanwhile, the thin shroud clears guards and brackets.
Plus, the sealed motor handles dust and moisture, so uptime stays high.

Key Features

• 9″ puller fan with straight blades for strong draw through condensers

• Low profile for tight installs; sealed motor for harsh sites

• 24V DC operation; ~625–645 CFM airflow with ~3.4–4.2 A draw

Specifications

• Part Number: BT3-0102-4

• Configuration: Puller (suction) • Straight blade

• Voltage: 24V DC

• Airflow: ~625–645 CFM (typ.)

• Current Draw: ~3.4–4.2 A (typ.)

• Blade Diameter: 9″ (≈225 mm)

• Overall Diameter: ≈9.7″

• Thickness: ≈2.0″

• Mounting Centers (ref.): ~8-1/8″ and ~5-1/2″

• Motor Protection: Sealed (axial family)

• Unit: Each

• Cross-references (SEO/internal only): SPAL 30100344 / VA07-BP7/C-31A

Applications

Use it on heavy truck, bus, off-road, ag, and industrial builds.
It fits condensers, auxiliary radiators, and oil coolers; also, it helps where a thin fan must clear belts or shields.

Installation Notes

First, mount the fan flat to the shroud or bracket.
Then confirm puller direction before final wiring.
Next, fuse the 24V feed for peak current.
Finally, check blade clearance and verify airflow.
