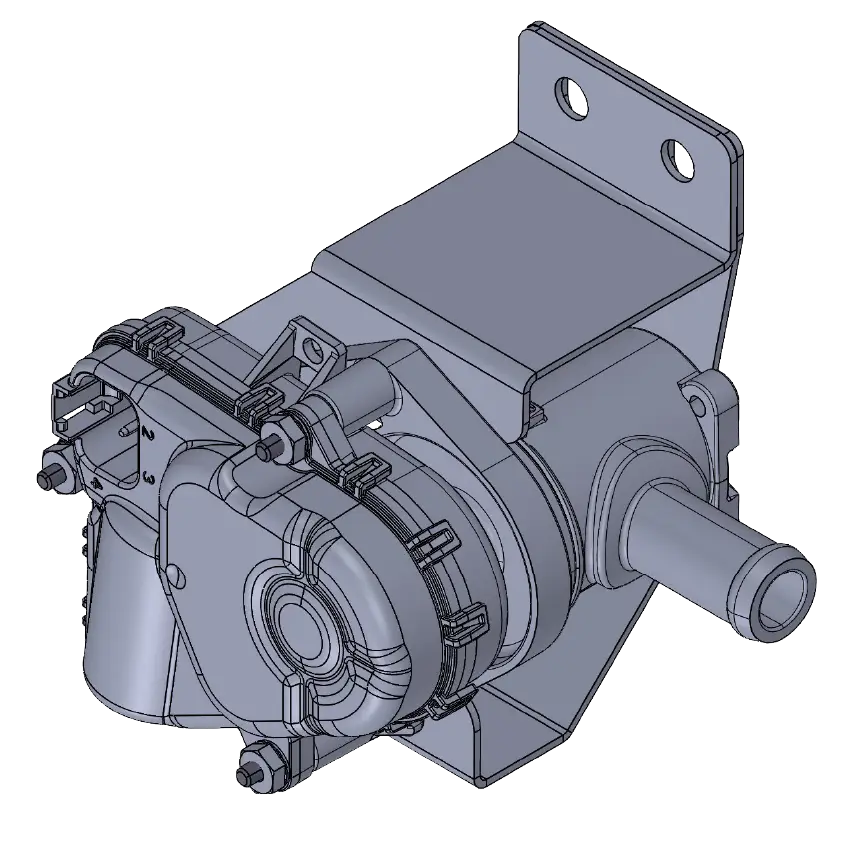

BT2-4604-1 – Electric Water Valve Assembly w/ 2-Piece Bracket

Description

Overview

The BT2-4604-1 Water Valve Assembly is a bracketed electric heater valve solution designed for mobile and heavy-duty HVAC systems where mounting flexibility is required. This version uses a two-piece bracket configuration, allowing installers to adapt the valve position to varying space constraints while maintaining proper hose routing.

At its core, the assembly utilizes the proven Red Dot RD-1-4604-0 electric water valve, offering dependable coolant shutoff and heater flow control.

---

Key features

• Electric heater water valve assembly

• Includes Red Dot RD-1-4604-0 electric water valve

• Two-piece mounting bracket system for added installation flexibility

• Designed to minimize hose interference

• Serviceable valve, brackets, and hardware

---

Assembly contents (BOM / service parts)

This assembly includes the following components:

1. RD-1-4604-0 – Electric Water Valve Assembly (Qty 1)

2. BT2-0141 – Bracket, Water Valve (Qty 1)

3. BT2-0142 – Bracket, Water Valve (Qty 1)

4. 27271 – Screw, 6-32 Hex Head, 1.5″ (Qty 3)

5. 1137405 – Nut, KEPS 6-32, Zinc (Qty 3)

Fasteners are installed in a specific orientation to prevent interference with hose routing.

---

Water valve details

• Valve type: Electric water valve

• Function: Heater coolant shutoff and flow control

• Actuation: Electrically controlled

• Core valve: Red Dot RD-1-4604-0

---

Mounting details

• Two-piece bracket design

• Allows adaptable mounting positions

• Supports improved alignment in confined installations

• Maintains secure valve positioning under vibration

---

Typical applications

• Cab and sleeper heater systems

• Mobile HVAC heater circuits

• Heavy-duty and vocational vehicles

• Off-highway and industrial equipment
