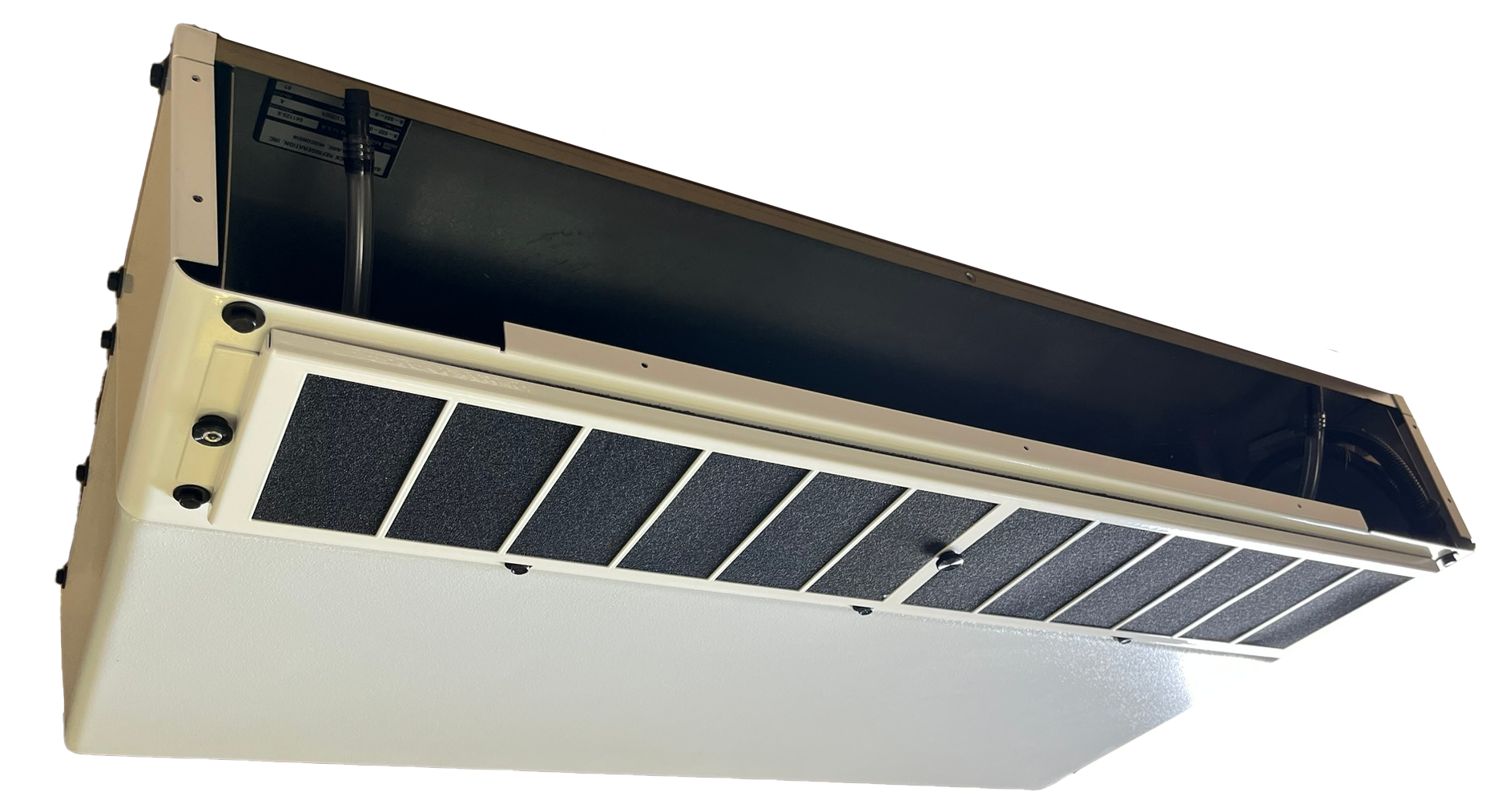

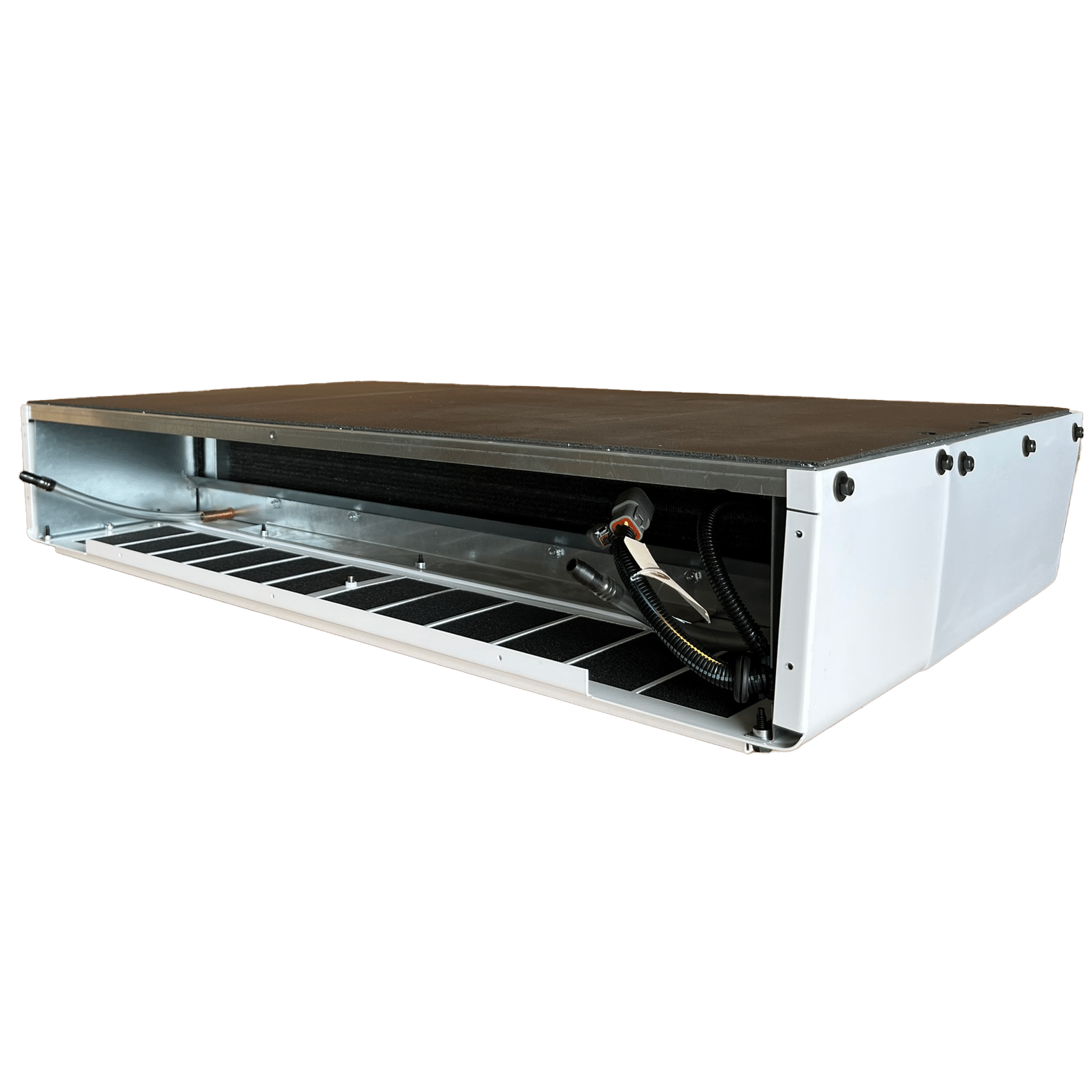

The B-932-1 is a ceiling-mount evaporator unit built for high-capacity mobile A/C applications where you need strong cooling performance and a clean overhead install.
With 60,000 BTU of cooling, it’s a great fit for larger cabs and equipment enclosures that need serious airflow and dependable temperature control. It also includes three blower speeds, so operators can adjust comfort as conditions change.
Key Features
-
Ceiling-mount evaporator layout for space-efficient installs
-
High cooling output: 60,000 BTU
-
3-speed blower operation (12VDC) with published amp draws
-
Serviceable design with a defined replacement/service parts list
-
Rear plate (optional use) noted on the dimensional drawing
Performance Specifications
-
Cooling Capacity: 60,000 BTU
-
Amp Draw @ 12VDC:
-
Low speed: 11A
-
Medium speed: 23A
-
High speed: 32A
-
Dimensions
-
Overall Length: 41.40 in.
-
Overall Width/Depth: 23.48 in.
-
Unit Thickness (side view): 7.45 in. max (6.81 in. at base shown)
Service Parts (B-932-1)
Major components listed:
-
BA-932-080-3 — Housing Left Side / Blower Mount
-
BA-932-080-4 — Housing Right Side
-
BA-932-080-8 — Housing Back Plate
-
BA-932-080-1 — Housing Cover
-
BA-932-080-5 — Housing Bottom
-
BA-932-080-10 — Drain Pan (Galv.)
-
BA-932-080-7 — Recirc Panel
-
BA-932-080-6 — Recirc Mount Brkt
-
BA-932-080-9 — Filter Guard
-
BA8-1072 — Unit Shroud
-
BA3-0650 (x3) — Blower 12V
-
BA2-2044 (x2) — Louver Small
-
405787 (x2) — Louver Large
-
BA1-2005 — Expansion Valve
-
BA-932-080-2 — Coil Evap
-
BA6-4001 — (listed on sheet)
Not shown (listed):
-
BA1-5162 — Wire Harness
-
BA1-5164 — Extension Harness
-
RD-6-5916-0 — Electronic T-Stat Kit
