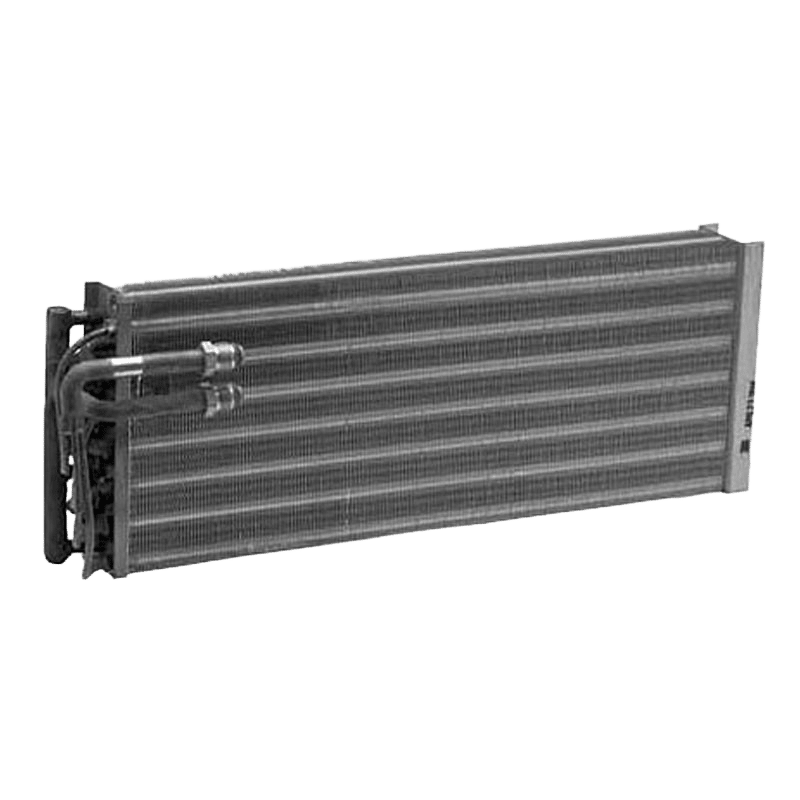

If your Red Dot system isn’t cooling like it should, a worn evaporator can be the culprit. The Red Dot 76R5700 evaporator assembly is designed for Red Dot unit model R-9800 applications and provides a direct-fit replacement using verified identifiers and dimensions.
Because correct fitment matters, this evaporator is defined by its overall size and by the full interchange set you provided. That makes it easier to cross-check older fleet references, service software, and shop ordering habits.
Confirm Fit Before You Order
This evaporator assembly is commonly referenced for Red Dot R-9800 systems. Compare the overall measurements below, and then verify by cross-reference if your application is listed under one of the interchange numbers.
Key Benefits
-
Built for Red Dot R-9800 unit applications
-
Known overall dimensions help confirm compatibility
-
Interchange coverage supports fleet, OEM, and aftermarket lookup
Note: Fin/tube layout and port-specific configuration details were not included in the data provided, so they are not listed here.
Product Specifications
-
Part Type: Evaporator Assembly
-
Series: 76R Series
-
Red Dot Part No.: 76R5700
-
Red Dot Factory Part No.: RD-2-2885-0P (also referenced as RD-2-2885-0)
-
Application: Red Dot Unit Applications
-
Confirmed Unit Model: Red Dot R-9800
-
Overall Height: 7 7/64 in.
-
Overall Length: 17 1/2 in.
-
Overall Width: 2 5/32 in.
Interchange Numbers
-
232-9529
-
2609001
-
27-4785
-
400-5612
-
4379-RD228850
-
4379-RD228850P
-
61-1506
-
76R5700
-
ABP N83 307645
-
RD-2-2885-0
-
RD-2-2885-0P
-
RDHRD228850P
-
RDT76R5700
-
T3374
Cross-References
-
Texas Truck A/C: 400-5612
-
Red Dot – Aftermarket: 76R5700
-
Red Dot – Factory: RD-2-2885-0 / RD-2-2885-0P
-
TruckAC+: T3374
-
TTA/C: 61-1506
-
Alliance: ABP N83 307645
-
Mack: 4379-RD228850
-
Volvo: RDHRD228850P
