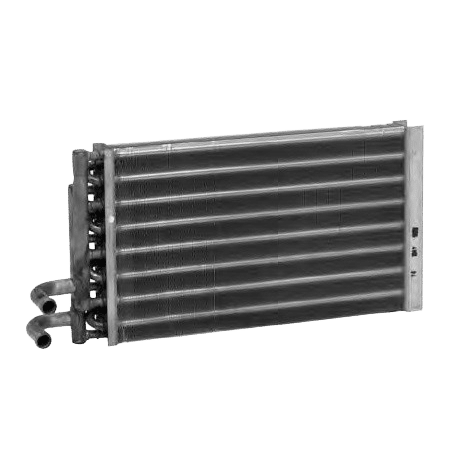

The 76R3420 Heater Core (RD-1-1603-0P) is a replacement heater core designed for use in heater and heater/air conditioner models R-1620 and R-9510, as well as select off-road equipment applications. This core measures 8 inches in height, 13 inches in length, and 1 1⁄2 inches in thickness, and features 5⁄8″ O.D. inlet and outlet connections for proper coolant flow. It is engineered for reliable heat transfer in mobile HVAC systems and serves as a direct-fit replacement for Link-Belt excavators equipped with compatible heater or A/C units.
Applications
-
Heater / Heater-Air Conditioner R-1620
-
Heater / Heater-Air Conditioner R-9510
-
Link-Belt Excavators
-
4300 Series
-
5800 Series
-
6000 Series
-
Equipped with heater or A/C units R-1620-1-24P or R-1625-0-24P
-
Dimensions
-
Height: 8″
-
Length: 13″
-
Thickness: 1 1⁄2″
Connections
-
Inlet: 5⁄8″ O.D.
-
Outlet: 5⁄8″ O.D.
OEM Reference
-
OEM Number: RD-1-1603-0
Cross Reference Numbers
-
Mack: 4379-RD116030
-
Volvo: RDHRD116030P
Interchange Numbers
232-9507
28-1877
4379-RD116030
4379-RD116030P
76R3420
ABP N83 315525
RDHRD116030P
RDT76R3420
