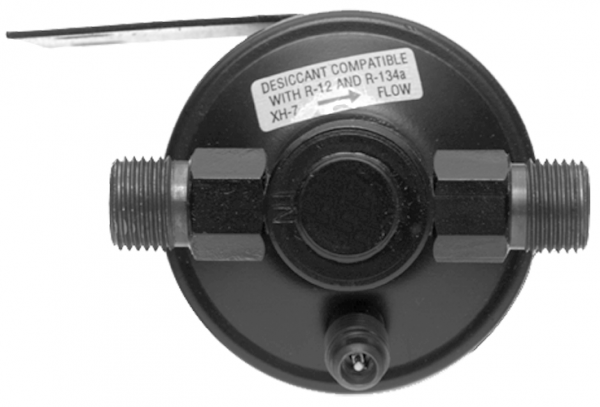

74R1106 Inline Receiver Drier with Side Port – Heavy-Duty Mobile A/C

Description

The BTRAC 74R1106 Inline Receiver Drier protects mobile air conditioning systems by removing moisture and debris from the refrigerant circuit. As a result, it helps prevent corrosion, supports steady cooling, and extends compressor life in demanding environments.

This receiver drier uses an inline configuration with #6 male O-ring fittings, which allows easy integration into common mobile A/C hose layouts. In addition, the side service port provides convenient access for diagnostics, evacuation, and charging without disturbing hose routing. Because of this, technicians can service the system faster and with less risk of leaks.

The cylindrical body measures 2.5 inches in diameter and 7-11/16 inches in overall length. Therefore, it fits well in space-limited installations while still providing effective moisture control. Since many fleet and vocational systems run long duty cycles, this balanced size supports reliable A/C performance over time.

---

Key Features

• Heavy-duty inline receiver drier for mobile A/C systems

• #6 male O-ring inlet and outlet

• Side service port for easier diagnostics and charging

• 2.5″ diameter x 7-11/16″ length cylindrical body

• Compatible with R-134a refrigerant

• Designed for fleet, vocational, and off-highway applications

---

Specifications

• Receiver Type: Inline receiver drier

• Body Diameter: 2.5 inches

• Overall Length: 7-11/16 inches

• Inlet Connection: #6 male O-ring

• Outlet Connection: #6 male O-ring

• Service Port: Side port

• Refrigerant Compatibility: R-134a

• Application Type: Mobile / heavy-duty A/C systems

---

OEM Application Notes

Based on validated interchange positioning, the 74R1106 receiver drier is commonly used in:

• Fleet and vocational trucks with mobile A/C systems

• Agricultural and utility equipment requiring side-port access

• Construction and off-highway machinery using inline receiver driers

• Heavy-duty HVAC systems where service access is important

Applications are confirmed at the system level and are intended for service identification rather than VIN-specific fitment.

---

Interchange Numbers

07-5019A, 088046-00, 088273-00, 1999040, 232-8907, 3039149M91, 37-10852, 402815, 4379-RD575590, 4379-RD575590P, 7480, 74R1106, 800-1504, 825-3253, 910731, ABP N83 304604, RD11504, RDHRD575590P, RDT74R1106
