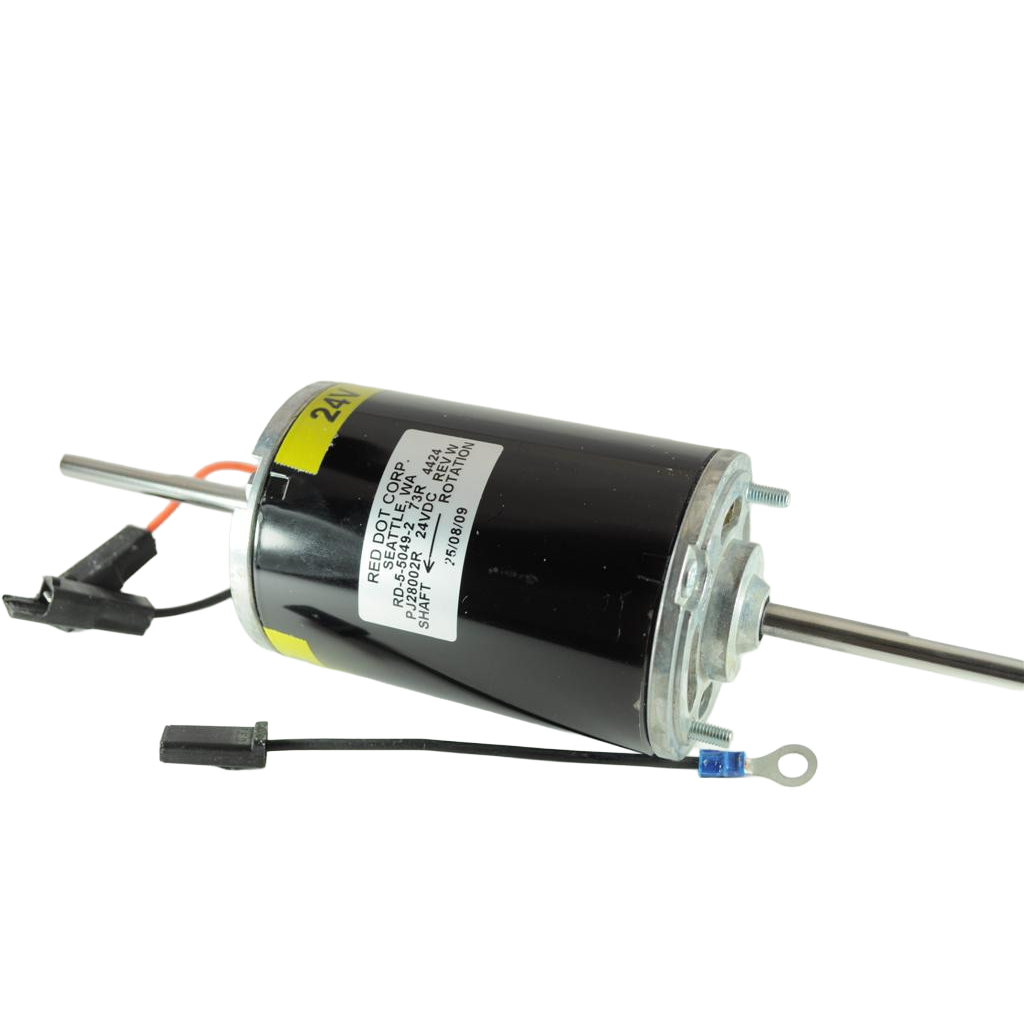

73R4424 Fan Motor – 24V Single Speed, Double Shaft
$72.84
The BTRAC 73R4424 is a 24-volt, single-speed double-shaft condenser fan motor designed for mobile HVAC applications that require balanced airflow on both sides of the motor. It features a permanent magnet design, vented housing, and Packard blade-terminal electrical connection.
In stock (can be backordered)
Description
The BTRAC 73R4424 fan motor is built for mobile air conditioning and HVAC condenser assemblies operating on 24-volt electrical systems. It uses a single-speed, permanent magnet motor design to deliver consistent airflow in demanding mobile environments.
Because the motor uses a double-shaft configuration, it supports applications that drive dual fan blades or symmetrical airflow layouts. As a result, cooling performance remains balanced across wide condenser cores. In addition, the strap or stud mounting style allows the motor to install securely on many standard condenser shrouds and brackets.
The motor features a vented housing, which helps manage internal heat during extended operation. Therefore, it performs well in applications where airflow demand remains constant for long duty cycles.
Electrical connection is handled through a two-conductor Packard connector (#2984528) with 1/4-inch blade terminals. As a result, wiring remains secure and compatible with common mobile HVAC harnesses. Furthermore, the wide interchange coverage makes the 73R4424 a practical replacement option across many OEM and aftermarket motor references.
Motor Specifications
Electrical
-
Voltage: 24V
-
Speed: Single speed
-
Motor Type: Permanent magnet
Mechanical
-
Shaft Configuration: Double shaft
-
Shaft Diameter: 5/16 in
-
Shaft Length: 2-7/8 in (each side)
-
Mounting Style: Strap / stud mounted
-
Mounting Span: 2-5/16 in
Dimensions
-
Motor Body: 5-5/16 in × 4-1/2 in × 3 in
Housing & Connection
-
Housing Style: Vented
-
Connector: Two-conductor Packard #2984528
-
Terminal Type: 1/4-inch blade
Interchange Numbers
06-3111
111-1016
150-3603
203154
232-8825
26-3342
3472
4379-RD550492
4379-RD550492P
482-9974
ABP N83 301129
ABP N83 301368
AT262536
BM21116
HF15450
PH28005R
RD5-5049-2
RDHRD550492P
RDT73R4424
Important Notes
-
Designed for 24-volt mobile HVAC systems
-
Double-shaft motor supports dual-fan configurations
-
Single-speed operation only
-
Verify shaft length, mounting span, and connector type before installation
-
Fan blades and mounting hardware sold separately unless noted
Additional information
| Weight | 3.51375 lbs |
|---|---|
| Voltage |
