73R0532 Fan Motor – 12V Single Speed, Single Shaft (RFI)
$72.63

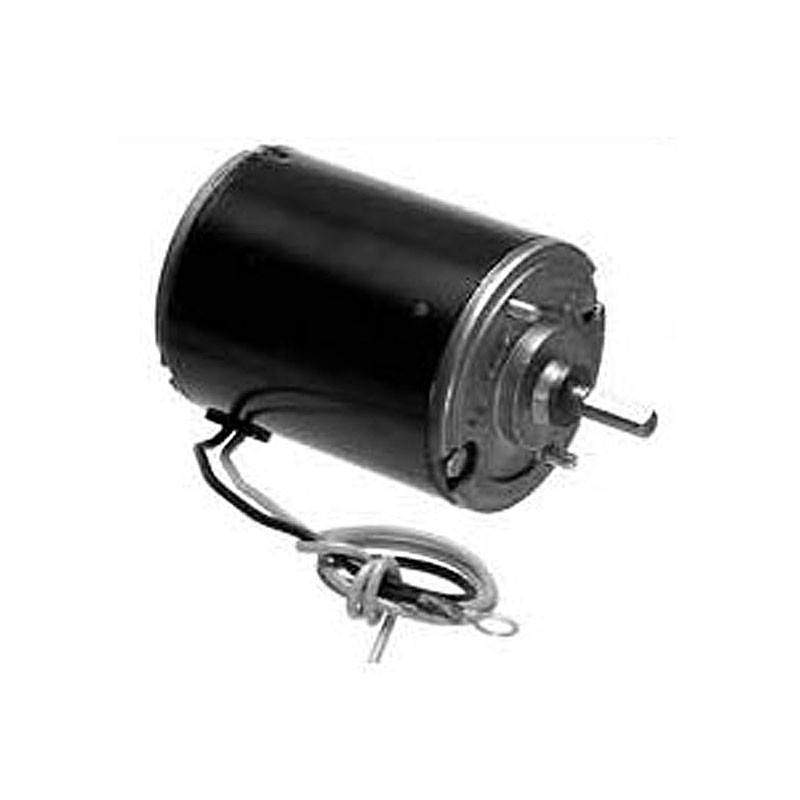

The BTRAC 73R0532 is a 12-volt, single-speed condenser fan motor designed for mobile HVAC applications that require steady airflow and electrical noise suppression. It features a permanent magnet motor design, clockwise rotation, and a ring-terminal electrical connection.
In stock (can be backordered)
Description
The BTRAC 73R0532 fan motor is built for mobile air conditioning and HVAC condenser assemblies that operate on 12-volt electrical systems. It uses a single-speed, permanent magnet motor design to deliver reliable airflow in demanding mobile environments.
Because the motor rotates clockwise and uses a single output shaft, it supports predictable airflow through the condenser. As a result, system cooling remains consistent during continuous operation. In addition, the strap or stud mounting style allows the motor to install securely on a wide range of condenser shrouds and brackets.
This motor includes RFI (radio frequency interference) suppression, which helps reduce electrical noise in vehicle systems. Because of this feature, it is well suited for applications where sensitive electronics are present.
The motor features a non-vented housing, which helps protect internal components from moisture and debris. Therefore, it performs well in mobile and vocational equipment exposed to vibration, dust, and changing weather conditions.
Electrical connection is handled through a two-conductor lead with ring terminals, allowing for direct, secure wiring. Furthermore, the broad interchange coverage makes the 73R0532 a practical replacement option across many OEM and aftermarket applications.
Motor Specifications
Electrical
-
Voltage: 12V
-
Speed: Single speed
-
Rotation: Clockwise
-
Motor Type: Permanent magnet
-
RFI Suppression: Yes
Mechanical
-
Shaft Diameter: 5/16 in
-
Shaft Length: 1.00 in
-
Mounting Style: Strap / stud mounted
-
Mounting Span: 2-5/16 in
Dimensions
-
Motor Body: 4-7/8 in × 4 in × 3 in
Housing & Connection
-
Housing Style: Non-vented
-
Connector: Two-conductor lead with ring terminals
Interchange Numbers
102-5028
117783-C1
117783C1
150-4479
176113
203132
203174
275160
2790-275160
2809-515-019
2809-540-003
2809-540-081
2809-541-005
2819-540-425
3130
3918242
3927
4379-RD536901P
4379-RD55435-0P
539047-R2
539047R2
66390-C1
70257681-0
HV33208
80417384
ABP N83 301031
ABP N83 301382
AR82005
BM02528
BSM203178
HA17000
PF2847Q
PH26014Q
PM3604
RDHRD536901P
RDT73R0532
ZGG701009
Important Notes
-
Designed for 12-volt mobile HVAC systems
-
Single-speed operation only
-
Includes RFI suppression
-
Verify rotation direction, shaft length, and wiring style before installation
-
Fan blade and mounting hardware sold separately unless not
Additional information
| Weight | 3.64 lbs |
|---|---|
| Voltage |
