71R1702 12V 5-Terminal Relay (SPST, 40/20 Amp)

Description

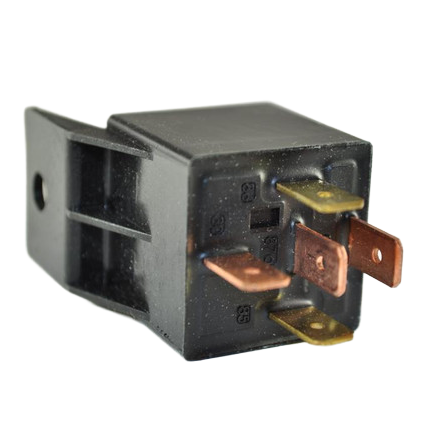

Relays do the heavy lifting behind the scenes, so reliability is everything. The Red Dot 71R1702 12V relay is a 5-terminal SPST relay designed for mobile HVAC and vehicle electrical systems that need dependable switching under load.

Because it uses standard 1/4″ male blade terminals, it works well with common harnessing. In addition, the compact footprint helps it fit in crowded panels and relay centers, while still supporting a 40/20 amp rating for typical control and blower circuits.

Use the dimensional callouts and cross-references below to confirm the correct match before ordering.

Product Specifications

• Part Type: Relay

• Red Dot Part No.: 71R1702

• Factory Number: RD-5-4417-0P

• Voltage: 12V

• Amperage: 40/20 AMP

• Pole: SPST

• Terminal/Harness: 5 Terminal

• Terminal Type: 1/4″ Male Blade

• Dimension A (Base Length): 1 1/8″

• Dimension B (Base Width): 1″

• Dimension C (Overall Length): 2.05″

• Dimension D (Blade Length): 1/2″
