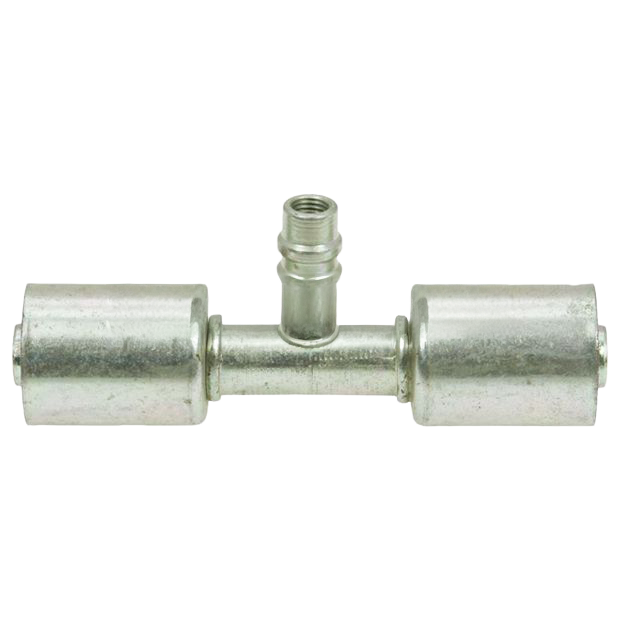

70R2072S Red Dot 12 × 12 Straight Splicer Steel Fitting with R134a Quick-Disconnect Service Port (13 mm)

The Red Dot 70R2072S Straight Splicer with R134a Quick-Disconnect Service Port is designed to join two same-size 12 × 12 refrigerant hoses in mobile HVAC systems. Because it uses a straight splicer design, it allows clean, inline repairs without changing hose routing.

This fitting features a 13 mm R134a quick-disconnect service port, which allows technicians to evacuate, charge, and service the system using standard R134a couplers. As a result, it improves service speed and reduces the need for additional fittings.

In addition, the steel construction increases strength and helps extend service life in high-pressure A/C environments. Therefore, it performs well in trucks, buses, and off-highway equipment that operate in demanding conditions.

Because this fitting appears across many OEM and aftermarket catalogs, technicians often rely on it as a trusted replacement part for mobile refrigeration service.

Product Specifications

• Red Dot Part Number: 70R2072S

• Red Dot Factory Number: RD-5-7075-0P

• Type: Straight

• Fitting Style: Splicer with quick-disconnect service port

• Material: Steel

• Hose Size: 12 × 12

• Service Port: 13 mm (R134a quick-disconnect)

• Thread: N/A

Common Applications

This straight splicer fitting with R134a service port is commonly used for:

• Mobile A/C refrigerant hose repair

• Inline hose splicing with modern service access

• Truck and bus HVAC systems

• Construction and agricultural equipment

• Custom refrigerant hose assemblies

As a result, it works well for both service repairs and system builds that require R134a quick-connect charging capability.

Cross References / Interchange Numbers

This part commonly interchanges with:

• Air Source / MEI: 4581S

• Alliance: ABP N83 311551

• Kysor: 2610904

• Fleetrite: ZGG722051S, ZGG722052S

• Mobile Climate Control: 302-436P, 313-195

• Truck Air / MEI: 08-3424BS

• Trans Air: 313195

Additional aftermarket references include:
550-SB5013-6, SB6104-3, 605-2423, 605-2424, FT32424, RDHRD570750P, RDT70R2072S

Product Summary

• Configuration: Straight splicer with quick-disconnect service port

• Material: Steel

• Hose Compatibility: 12 × 12

• Service Access: 13 mm R134a quick-disconnect

• Application: Mobile HVAC / A/C systems
