25.3020.05.0000 – Eberspächer Airtronic XL3 D8L 24V Diesel Air Heater (Commercial)

Description

When large cabins or compartments require dependable heat, output matters. The Eberspächer Airtronic XL3 D8L is engineered to deliver powerful, consistent air heating for demanding commercial applications without relying on engine operation.

This 24-volt diesel air heater produces up to 7.6 kW (approximately 26,000 BTU) of clean, dry heat. Because it heats air directly, warmth is available quickly, even in extreme cold conditions. In addition, its stepless heat control maintains stable temperatures rather than cycling on and off.

The Airtronic XL3 is designed for installations where high air throughput is critical. As a result, it is well suited for large truck cabs, buses, personnel carriers, and cargo or equipment compartments that require reliable engine-off heat.

This part number (25.3020.05.0000) is supplied as a heater-only assembly with metering pump. Installation components, controllers, ducting, and accessories are selected separately to allow maximum configuration flexibility.

---

Key Features & Benefits

• Produces up to 26,000 BTU (7.6 kW) of diesel-fired air heat

• High airflow output for large interior volumes

• Engine-off heating reduces idling and fuel consumption

• Stepless heat control for consistent comfort

• Ventilation mode for air circulation without heat

• Designed for heavy-duty commercial applications

• EPA Verified for North American on-road use

---

What’s Included

This heater-only package includes:

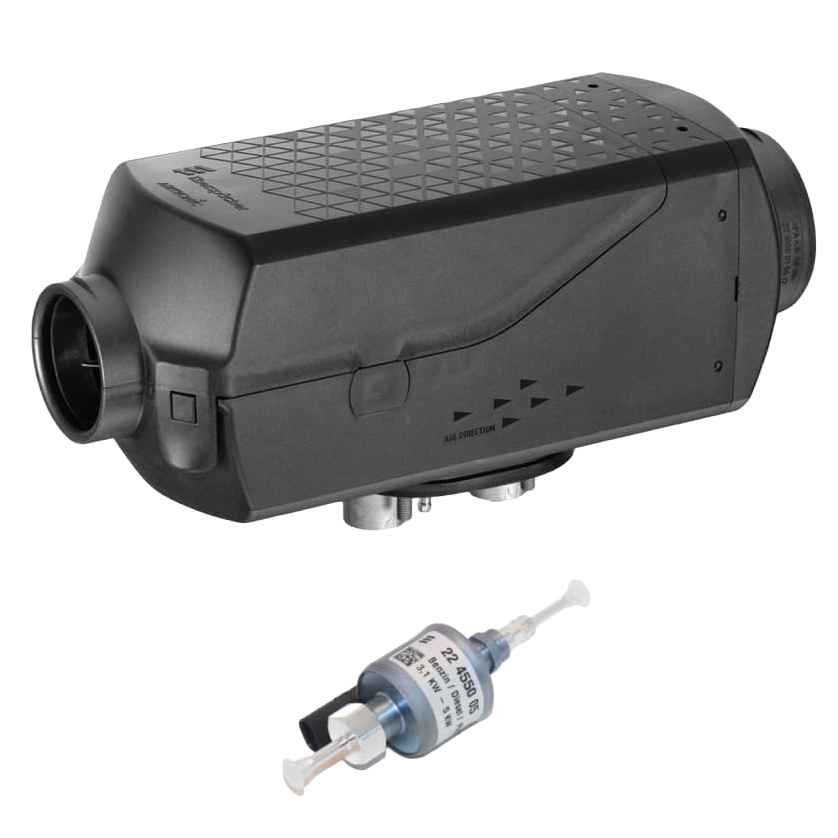

• Airtronic XL3 D8L diesel air heater

• Fuel metering pump

Note:
Installation kits, wiring harnesses, controllers, ducting, exhaust, and intake components are not included and must be ordered separately.

---

Technical Specifications

Heater Model: Airtronic XL3 D8L
Voltage: 24V
Fuel Type: Diesel (EN 590; up to 30% FAME permitted)
Heating Medium: Air
Heating Output Range: Up to 7.6 kW (≈ 26,000 BTU)
Fuel Consumption: Approximately 0.23 – 1.01 L/hr
Electrical Power Consumption (Operation): Approx. 8 – 130 W
Electrical Power Consumption (Start): ≤ 90 W
Air Throughput (without backpressure): Up to 300 kg/hr
Control Type: Stepless heat control
Ventilation Mode: Available

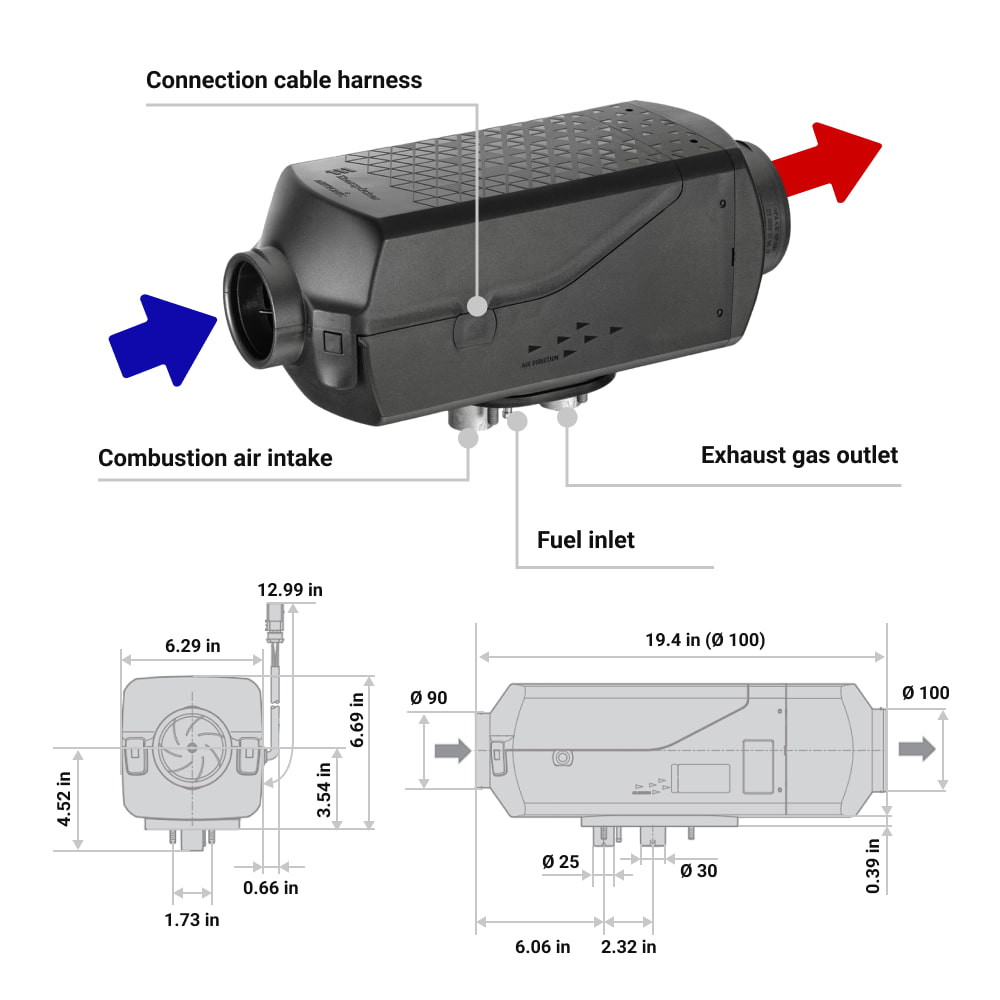

Dimensions (L × W × H): 493 × 160 × 170 mm
Weight (empty): Approx. 8.5 kg
Interference Suppression: Class 5 (DIN EN 55025)

---

Applications

• Large commercial truck cabs

• Coaches and buses

• Personnel carriers

• Cargo and equipment compartments

• Specialty and industrial vehicle heating

---

Installation Notes

• Designed for 24V diesel systems only

• Heater-only configuration for replacement or custom builds

• Requires compatible controller, harness, ducting, exhaust, and intake components

• Professional installation is strongly recommended
