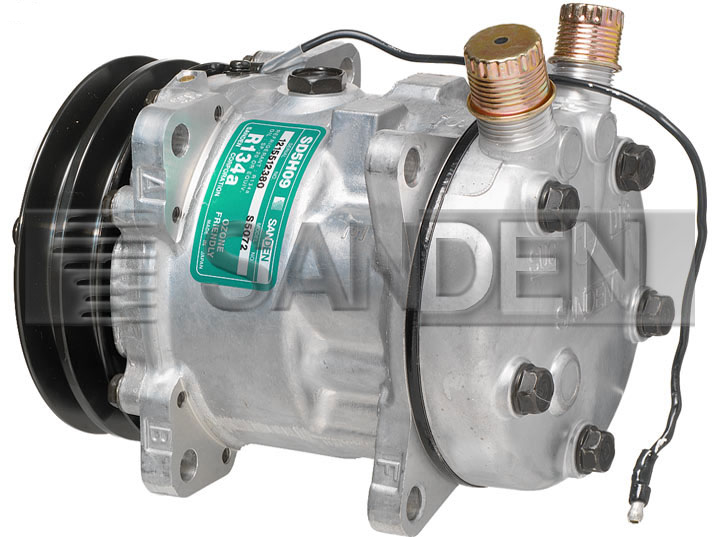

Compressor BT5-5072

Description

Interchange Numbers:
1401391, 20-10062, 20-10062, 232-9202, 300-4209, 330-1310, 4379-RD5103070, 4379-RD5103070, 4379-RD5103070P, 4379-RD5103070P, 5072, 5786, 75R82102, ABP N83 304622, ABP N83 304622, ACC2310, RDHRD5103070P, RDT75R82102, RDT75R82102, TCU18904,

ESSENTIAL SPECIFICATIONS
Compressor Family: SD5H09
Style: STD
Mount Type: Ear 8 Short
Ear ID: 67.3
Refrigerant: R134A
Displacement: 81.90
Rotation Direction: CW
Oil Qty (cc): 100
Cylinder Head: FL
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8
Rotor Size: 125
Rotor Groove: A2
Gauge Line
to First Groove: 20.85
Gauge Line
to Middle Groove: 0.00
Gauge Line
to End Groove: 36.60
Coil Voltage: 12
Connector: 1 Wire Male Bullet
