Coyote 4″ La Mesa Louver without Adapter, Fixed Grille (06-2022-1A)

Overview

The Coyote 06-2022-1A La Mesa Louver delivers reliable, maintenance-free performance through a clean, fixed-grille design.
Because it lacks adjustable vanes or a hose adapter, it’s optimized for systems where continuous airflow is required.
The 4″ face opening provides steady air movement with minimal restriction, making it perfect for return vents or passive exhaust ports.
In addition, its simple, low-profile design gives panels a professional, OEM-grade appearance.

Function and Performance

This La Mesa Series louver provides balanced, consistent airflow through fixed directional fins.
Because the grille is non-adjustable, it maintains steady air delivery with minimal turbulence.
As a result, it’s ideal for constant-flow or open-return applications that don’t require directional control.
In addition, the open-face design reduces static pressure, helping HVAC systems operate more efficiently.

Durability and Design

Coyote molds the 06-2022-1A from high-strength black ABS plastic formulated to resist impact, heat, and UV exposure.
Because the grille is fixed in place, there are no moving parts to wear out or loosen over time.
The satin finish gives it a refined appearance that matches other Coyote louvers and vents.
In addition, the smooth internal structure helps minimize dust buildup and simplifies cleaning.

Installation

Installation is quick and simple.
Mount the La Mesa Louver directly into the panel opening using standard retainers or fasteners.
Because it doesn’t use a hose adapter, it installs flush and fits well in shallow panels.
The fixed grille requires no adjustment, reducing setup and maintenance time.
As a result, it’s an easy choice for OEM and retrofit ventilation designs.

Applications

The Coyote 06-2022-1A La Mesa Louver is used in buses, RVs, off-road machinery, trucks, and industrial HVAC systems.
It’s perfect for return air vents, passive cooling, or open exhaust systems that need durable, consistent airflow.
Because of its fixed design, it’s also used in enclosures, wall panels, and electrical housings for general ventilation.

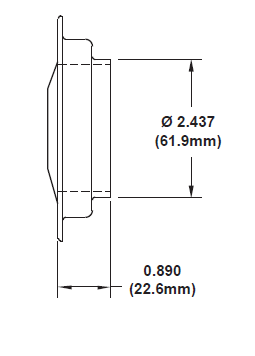

Specifications

• Series: La Mesa Louvers

• Part Number: 06-2022-1A

• Face Diameter: 4″ (101.6 mm)

• Mounting Style: Panel-mount, no hose adapter

• Grille Type: Fixed, non-adjustable

• Material: Black ABS plastic

• Applications: Return air, constant-flow, ventilation panels

• Features: Fixed grille, steady airflow, low maintenance, durable ABS construction
