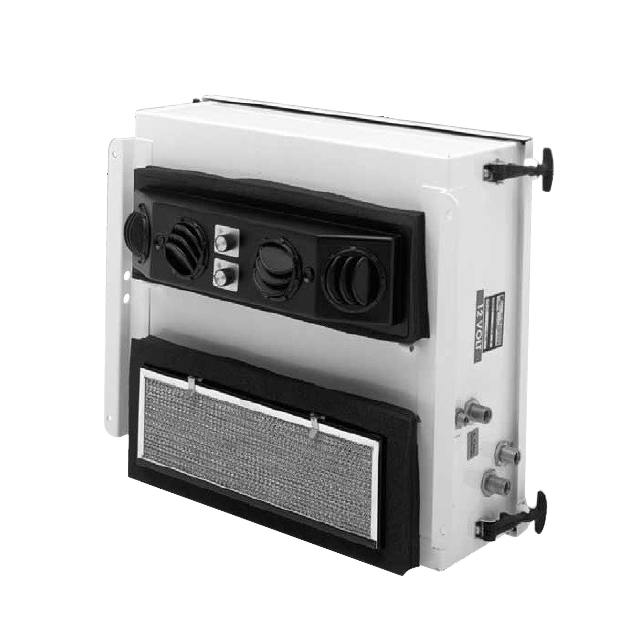

R-9800-0P Red Dot Off-Road Rooftop or Side-Mount Air Conditioner with Heat – 12V, R-134a

Description

The Red Dot R-9800-0P Off-Road Heater/Air Conditioner is engineered for rugged environments where installation flexibility and serviceability matter. The unit can be mounted vertically or horizontally (rooftop or side mount) to fit your available space, and the control panel can be remote-mounted for operator convenience.

Designed for easy maintenance, rubber tie-downs unlatch to provide quick access to internal components. The system delivers 25,000 BTU/hr of cooling and 45,000 BTU/hr of heating, paired with strong airflow for fast pull-down and consistent cab comfort. Operating on 12V DC and using R-134a refrigerant, the R-9800-0P is well suited for construction, mining, agricultural, and specialty equipment.

Optional accessories—such as a remote-mount filter and in-line booster blower—are available to help create a pressurized, dust-free cab (sold separately).

---

Product Specifications

• Manufacturer: Red Dot

• Model Series: R-9800

• Model Number: R-9800-0P

• System Type: Rooftop or Side-Mount A/C with Heat

• Voltage: 12 VDC

• Refrigerant Type: R-134a

Cooling Performance

• Cooling Capacity: 25,000 BTU/hr

  • @ 36°F refrigerant temperature

  • 80°F (26.7°C) wet bulb entering air

  • 7.3 kW @ 2.2°C

Heating Performance

• Heating Capacity: 45,000 BTU/hr

  • @ 100°F air temperature rise

  • 13.2 kW @ 37.8°C

Air & Electrical

• Air Flow: up to 400 CFM (680 m³/h) (catalog)

• Motor: One 12 VDC, three-speed

• Current Draw: 22.7 amps @ 13.6 VDC

  • Includes 4 amps for A/C clutch

Mounting & Service

• Mounting Orientation: Vertical or horizontal

• Controls: Panel can be remote-mounted

• Service Access: Rubber tie-downs for easy servicing

Physical

• Weight: ~73 lbs (listed)

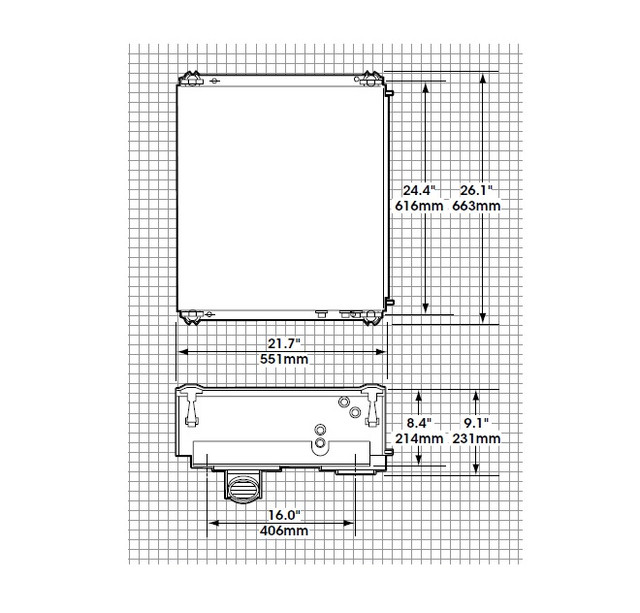

• Dimensions: See product image #3

Options (Sold Separately):

• Remote-mount filter

• In-line booster blower (for pressurized, dust-free cab)

Installation Notes:

• Professional installation is required.

• Backwall, rooftop, and headliner A/C units require connection to an external A/C compressor (compressor and connection components not included).

• Additional components may be required to complete installation.

---

Cross Reference Numbers

• Texas Truck A/C: 950-1260-3-12

• AirSource – MEI: 44854

• CoolStar – MEI: 990-9620

• Primatech: PTAC10-9620

• Red Dot Aftermarket: R-9800-0

• Truck Air – MEI: 50-9620

• TruckAC+: T5518

• TTA/C: 90-9800-0

---

Interchange Numbers

• 10-9620

• 232-7898

• 4379-R98000P

• R-9800-0P
