R-9750-9-24P Red Dot Off-Road Headliner Air Conditioner with Heat – 24V, R-134a

Description

The Red Dot R-9750-9-24P Off-Road Headliner Air Conditioner with Heat is engineered for compact overhead installations in construction, mining, and agricultural equipment. Mounted in the headliner, this unit filters recirculating cab air and distributes airflow efficiently through four multi-directional louvers, delivering comfort exactly where operators need it.

The system provides 17,000 BTU/hr of cooling using R-134a refrigerant and a heater option rated at 25,600 BTU/hr, ensuring reliable performance across changing seasons. Strong airflow (240 CFM) supports consistent temperature control, while rugged construction is built to withstand vibration and harsh operating conditions.

Designed for 24V DC systems, the R-9750-9-24P is a direct solution for higher-voltage equipment. 12V and A/C-only variants are also available to match specific application requirements.

---

Product Specifications

• Manufacturer: Red Dot

• Model Series: R-9750

• Model Number: R-9750-9-24P

• System Type: Headliner A/C Unit with Heat

• Voltage: 24 VDC

• Refrigerant Type: R-134a

Cooling Performance

• Cooling Capacity: 17,000 BTU/hr

  • @ 36°F refrigerant temperature

  • 80°F (26.7°C) wet bulb entering air

  • 5.0 kW @ 2.2°C

Heating Performance

• Heating Capacity: 25,600 BTU/hr

  • @ 100°F air temperature rise

  • 7.5 kW @ 37.8°C

Air & Electrical

• Air Flow: 240 CFM (408 m³/h)

• Current Draw: 6.5 amps @ 27.2 VDC

  • Includes 2 amps for A/C clutch

Physical

• Weight: 44 lbs (20 kg)

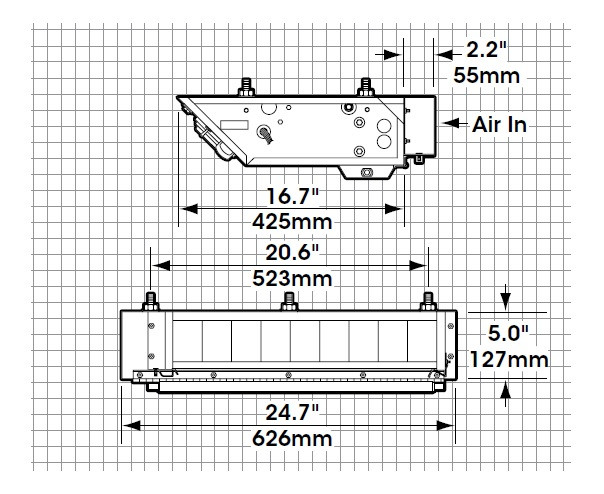

• Dimensions: See product image #2

Applications

• Construction

• Mining

• Agriculture

Installation Note:
Additional components may be required to complete an A/C system installation.

---

Cross Reference Numbers

• Texas Truck A/C: 950-1160-3-24

• AirSource – MEI: 13424

• CoolStar – MEI: 990-9736

• Primatech: PTAC10-9736

• Red Dot Aftermarket: R-9750-9-24

• Truck Air – MEI: 50-9736

• TruckAC+: T3882

• TTA/C: 90-9750-9-24

---

Interchange Numbers

• 10-9736

• 232-7885

• 4379-R9750924

• 4379-R9750924P

• R-9750-9-24P

• R-9753-1-24P

• RDH R9750 9 24
