R-9725-3P Red Dot Remote Mount Condenser – Dual Fan, 12V, R-134a

Description

The Red Dot R-9725-3P Remote Mount Condenser is engineered for rugged performance and installation flexibility. Its dual-fan design provides the airflow needed to handle the full range of Red Dot auxiliary A/C systems, delivering reliable heat rejection in demanding environments.

This condenser can be mounted vertically or horizontally, making it well suited for construction, mining, agricultural, and specialty vehicles where traditional radiator or rooftop mounting is not feasible. Built with copper tubing, aluminum fins, and plated steel headers, the R-9725-3P is designed for durability and long service life.

The unit operates on 12V DC power and is compatible with R-134a refrigerant. An optional rock guard is available to provide additional protection in harsh operating conditions (sold separately; see model RD-4-4548-1P). A 24V version is also available for higher-voltage systems (see model R-9725-3-24P).

Product Specifications

• Manufacturer: Red Dot

• Model Series: R-9725

• Model Number: R-9725-3P

• System Type: Remote Mount Condenser

• Voltage: 12 VDC

• Cooling Capacity: 36,500 BTU/hr (9.7 kW)

• Refrigerant Compatibility: R-134a

• Condenser Coil: Copper tubing, aluminum fins, plated steel headers

• Fans: Two 9 in. (20.32 cm) diameter fans

• Total Air Flow: 900 CFM (1,529 m³/h)

• Motor Type: Single-speed sealed permanent magnet

• Current Draw: 24 amps @ 13.6 VDC

  • Includes 4 amps for A/C clutch

• Mounting Orientation: Vertical or horizontal

• Applications: Construction, mining, agriculture, specialty vehicles

• Weight: 40 lbs (18 kg)

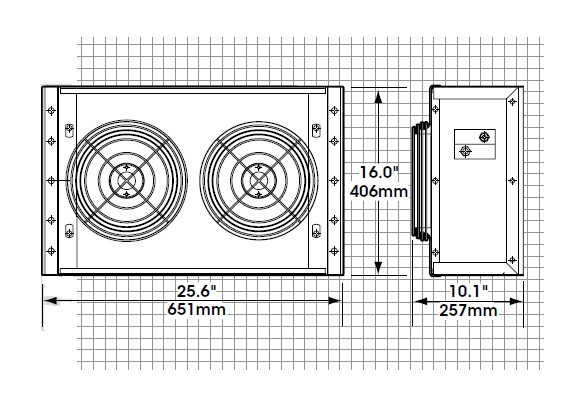

• Dimensions: See product image #2

Cross Reference Numbers

• Texas Truck A/C: 950-3200-12

• AirSource – MEI: 24016

• CoolStar – MEI: 994-9365

• Primatech: PTAC10-9365

• Red Dot: R-9725-3P

• Red Dot Aftermarket: R-9725-1

• Truck Air – MEI: 50-9365

• TruckAC+: T5325

• TTA/C: 90-9725-1

Interchange Numbers

• 4379-R97253P

• R-9725-3P

• RDTR97253P
