R-6101-0P Red Dot On-Road Rooftop Air Conditioner – 12V, R-134a

Description

The Red Dot R-6101-0P On-Road Rooftop Air Conditioner is engineered for demanding commercial truck, construction, and agricultural applications where reliable cab cooling is essential. This A/C-only rooftop unit features a styled low-profile design with a ceiling plenum that blends cleanly with interior trim while preserving headroom.

The injection-molded housing incorporates dedicated pockets for the receiver drier, blower assembly, and evaporator core, allowing for easier servicing and component replacement. Performance is driven by a 12-inch Spal condenser fan, dual-scroll / dual-inlet Spal blower, rifled-tube evaporator, and parallel-flow condenser, all working together to deliver consistent airflow and efficient heat rejection.

Operating on 12V DC power and using R-134a refrigerant, the R-6101-0P delivers 21,300 BTU/hr of cooling capacity, making it well suited for on-highway trucks and vocational equipment. A 24V version is also available (see model R-6101-0-24P) for higher-voltage systems.

Product Specifications

• Manufacturer: Red Dot

• Model Number: R-6101-0P

• Model Series: R-6101

• Application: Commercial trucks, construction, and agricultural equipment

• System Type: A/C Only

• Mounting Type: Rooftop

• Refrigerant Type: R-134a

• Voltage: 12 VDC

• Cooling Capacity:

  • 21,300 BTU/hr @ 100°F

  • 6.2 kW @ 37.8°C

• Air Flow: 299 CFM (508 m³/h)

• Current Draw: 25.7 amps @ 13.6 VDC

• Blower Control: Three-speed blower

• Housing: Injection-molded, low-profile design

• Weight: 40.0 lbs (18.1 kg)

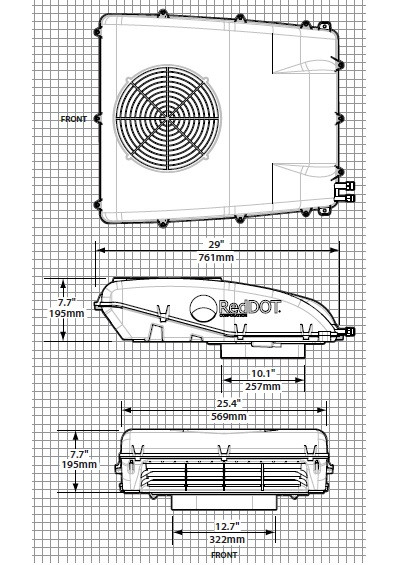

• Dimensions: See product image #2

• Installation Note: Additional components may be required to complete an A/C system installation

Cross Reference Numbers

• Texas Truck A/C: 950-1212-1-12

• Red Dot Factory: R-6101-0P

• Red Dot Factory: RD-6101-0P

• TruckAC+: T6885

Interchange Numbers

• 10-9718A

• 4379-R61010P

• R-6101-0P

• RDH R6101 0

• RDHR61010P

• RDTR61010P
