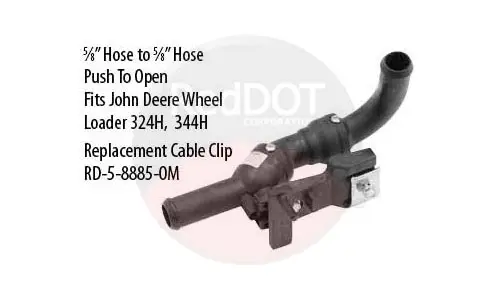

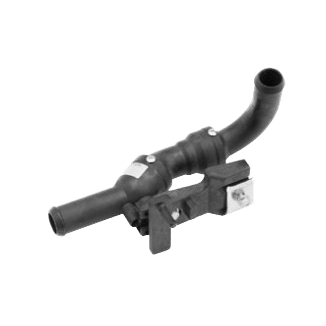

Red Dot RD-5-9224-1P Push-Open Water Valve | 72R5285 Cable-Operated Heater Valve

Description

Overview

The Red Dot RD-5-9224-1P is a compact, cable-actuated water valve designed for mobile HVAC systems. It opens when the control cable is pushed forward, which gives the operator a simple and direct method to control cabin heat. Because the valve uses an inline hose design, it installs easily in many heater applications.

---

How the Valve Works

This valve responds to push-style mechanical input from a heater control cable. As the cable pushes the actuator, the valve opens and allows coolant to flow into the heater core. When the cable retracts, the valve closes. This system is easy to service, highly reliable, and ideal for machines that operate in demanding conditions.

The durable metal construction resists vibration, corrosion, and temperature changes. As a result, it performs well in trucks, buses, agricultural machinery, and off-highway equipment.

---

When You Should Replace It

Replace the RD-5-9224-1P if you notice:

• Heat output dropping or not responding to controls

• A valve that sticks, binds, or jams

• Coolant leaking from the valve housing

• A cable that pushes freely but does not open the valve

---

Specifications

• Part Type: Cable-operated push-open water valve
• Control Method: Push-type mechanical cable actuation
• Function: Inline coolant flow control
• Material: Heavy-duty metal body
• Factory Number: RD-5-9224-1P
• Red Dot Cross: 72R5285
• Typical Use: Heater coolant flow control in Red Dot HVAC systems

---

Interchange Numbers

247-3730, 4379-RD592241P, 72R5285, ABP N83 324452, RDHRD592241P, RDT72R5285
