Red Dot RD-5-7760-1P Push-Open Water Valve | 72R5220 Cable Heater Valve

Description

Overview

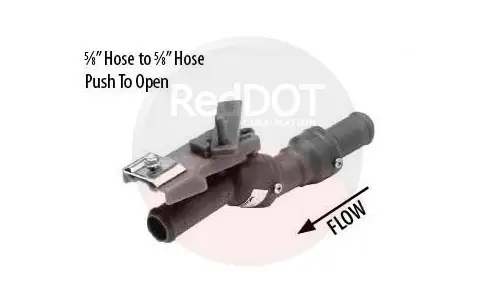

The Red Dot RD-5-7760-1P is a mechanical water valve designed for mobile HVAC heater applications. It opens when the control cable is pushed forward, allowing coolant to flow into the heater core. This simple but effective control method delivers dependable temperature regulation in demanding environments.

---

How This Valve Works

This valve uses a push-operated cable mechanism located on the inlet side. When the cable moves forward, the valve opens. When the cable retracts, the valve closes. Because it relies on a mechanical cable rather than electronic control, it remains reliable in harsh conditions such as vibration, extreme temperatures, and off-road operation.

The heavy-duty metal housing provides long service life and resists corrosion. As a result, this valve is widely used in trucks, buses, agricultural machinery, and construction equipment.

---

When to Replace It

Replace the RD-5-7760-1P if you notice:

• Temperature controls that stop responding

• A valve that binds or sticks during movement

• Coolant leaks around the housing

• A heater that no longer produces consistent warmth

---

Specifications

• Part Type: Cable-operated water valve
• Activation Type: Push-open
• Control Location: Inlet-side push mechanism
• Flow Type: Inline coolant control
• Material: Heavy-duty metal construction
• Factory Number: RD-5-7760-1P
• Red Dot Cross: 72R5220
• Typical Use: Heater coolant control in Red Dot HVAC systems

---

Interchange Numbers

10-2626, 2280, 232-8663, 250-6802, 4379-RD577601, 4379-RD577601P, 625-4205, 725-1108, 72R5220, ABP N83 324003, AT309331, HP21108, RDH RD5 7760 1, RDHRD577601P, RDT72R5220
