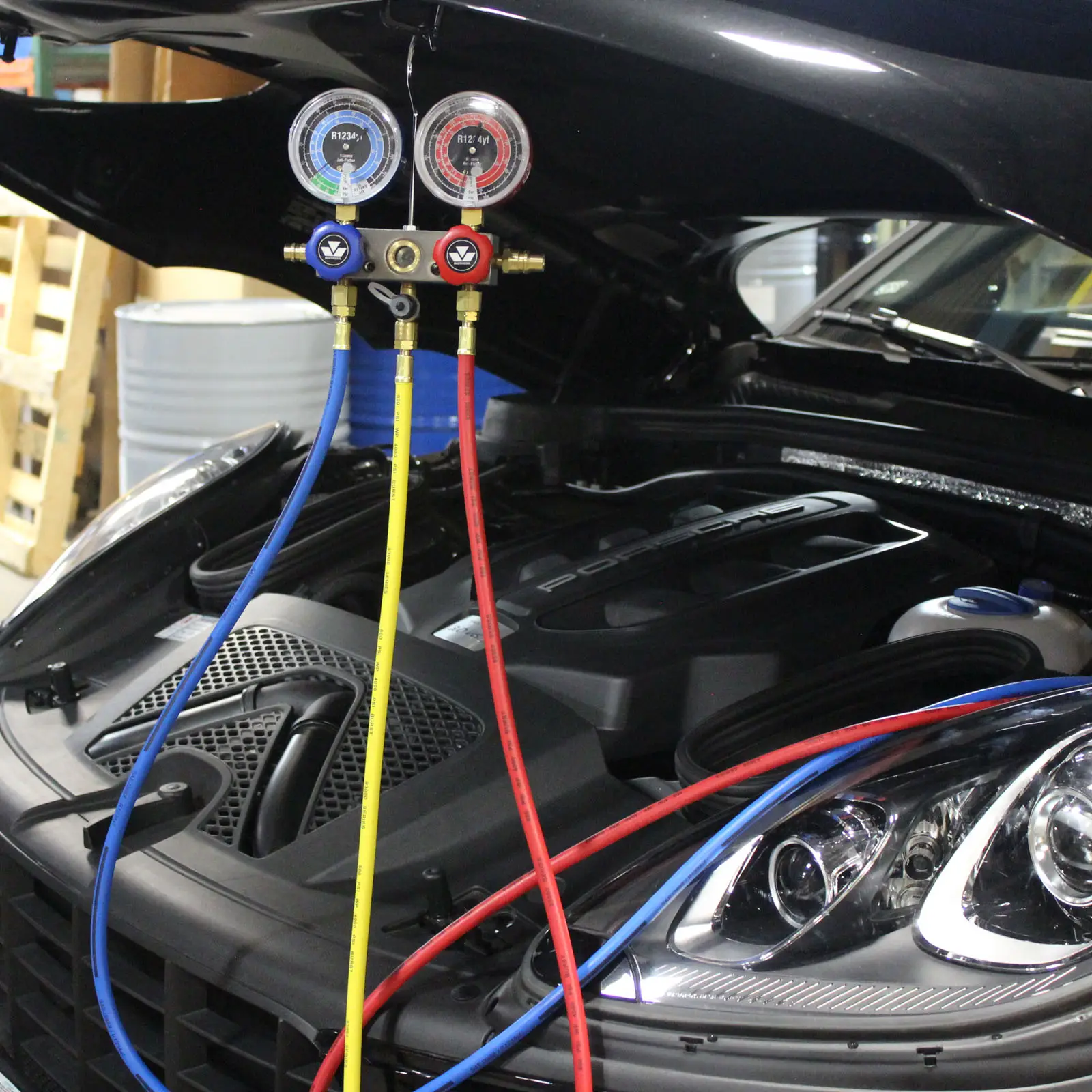

Mastercool 83272 R1234yf 2-Way Piston Valve Manifold Gauge Set

Description

The Mastercool 83272 R1234yf 2-Way Piston Valve Manifold Gauge Set is engineered for precise diagnostics, charging, recovery, and evacuation of R1234yf automotive A/C systems. Because it uses free-floating piston valves, the manifold reduces O-ring wear while providing smooth, consistent valve action during service.

This set features anti-flutter gauges that steady needle movement for easier reading. In addition, clear temperature scales on the gauge faces help technicians interpret system conditions quickly. The aluminum manifold block integrates an extra-large sight glass, allowing visual checks of refrigerant flow during service.

Designed to meet current standards, the manifold assembles with (3) 12mm-F ports and includes nylon barrier hoses with 12mm-M fittings that comply with applicable SAE requirements. R1234yf high- and low-side couplers include extended disconnect protection sleeves, helping ensure safe connection and disconnection during automotive A/C work.

---

Key Features

• 2-way free-floating piston valves reduce O-ring wear

• Anti-flutter gauges for smooth, stable readings

• Easy-to-read temperature scales on gauge faces

• Extra-large sight glass for visual refrigerant checks

• Easy-grip, front-facing control knobs

• Aluminum manifold block with (3) 12mm-F ports

• Nylon barrier hoses designed for R1234yf service

• R1234yf couplers with extended disconnect protection sleeves

---

Included Components

• Aluminum R1234yf manifold with 2-way piston valves

• 72″ R1234yf blue hose

• 72″ R1234yf red hose

• 72″ R1234yf yellow service hose (12mm on one end, 1/2″ × 16 LH ACME on the other)

• R1234yf high-side coupler

• R1234yf low-side coupler

• Low-side and high-side gauges with protective lenses

---

Applications

• Automotive A/C system diagnostics

• Refrigerant charging and recovery

• System evacuation and service

• Professional shop and mobile A/C operations

---

Specifications

• Manufacturer: Mastercool

• Part Number: 83272

• Product Type: Manifold gauge set

• Valve Type: 2-way free-floating piston valves

• Refrigerant Compatibility: R1234yf

• Manifold Material: Aluminum

• Hose Length: 72″ (blue, red, yellow)

• Manifold Ports: (3) × 12mm-F

• Service Hose Outlet: 1/2″ × 16 LH ACME

---

Serviceable / Replacement Parts

• 83834 – High-side coupler

• 83934 – Low-side coupler

• 83102 – R1234yf aluminum manifold block

• 83721 – 72″ R1234yf blue hose

• 83723 – 72″ R1234yf red hose

• 83722 – 72″ R1234yf yellow hose

• 87350 – 3-1/8″ replacement gauge (low side)

• 87500 – 3-1/8″ replacement gauge (high side)

• 98251-E – 3-1/8″ replacement lens

• 85212-R – Red control knob

• 85211-R – Blue control knob

---

Compatibility

• Automotive A/C systems using R1234yf

• R1234yf service ports and couplers

• Professional manifold gauge service workflows
