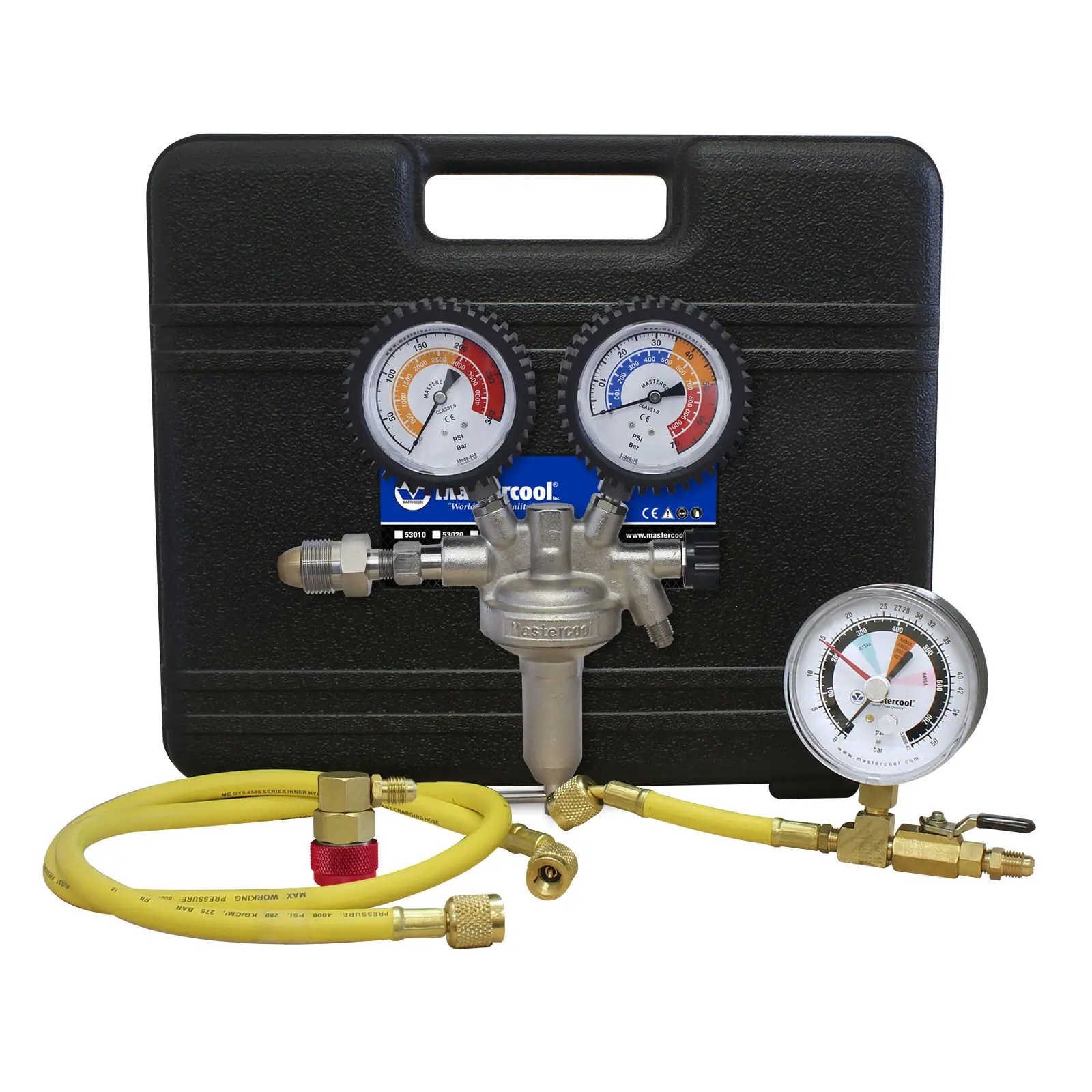

Mastercool MC-53010-AUT Automotive Pressure Testing Regulator Kit

Description

The Mastercool MC-53010-AUT Automotive Pressure Testing Regulator Kit is a professional-grade tool set designed for leak testing automotive air conditioning and HVAC systems that do not contain refrigerant. By using an inert nitrogen supply, this kit allows technicians to safely pressurize empty systems and identify leaks without introducing refrigerant.

Built around a single-stage nitrogen pressure regulator with CGA580 US standard fittings, the kit provides controlled and accurate pressure delivery. Large, easy-to-read 2½-inch gauges with protective guards display both high- and low-side pressures clearly, while the ergonomic T-handle allows smooth pressure adjustment.

Packaged in a durable blow-molded carrying case, the MC-53010-AUT kit is well suited for shop and mobile service environments. Whether performing routine maintenance or diagnosing complex leaks, this kit helps technicians deliver accurate, efficient, and safe service.

---

Key Features

• Complete automotive pressure testing regulator kit

• Single-stage nitrogen pressure regulator for leak detection

• Easy pressure adjustment with ergonomic T-handle

• Large 2½-inch gauges with protective guards

• Designed for testing systems without refrigerant

• Durable blow-molded carrying case included

• Built for professional automotive A/C and HVAC service

---

Applications

• Automotive A/C leak testing

• HVAC system pressure verification

• Nitrogen-based system testing

• Professional shop and mobile service diagnostics

---

Specifications

• Manufacturer: Mastercool

• Part Number: MC-53010-AUT

• Tool Type: Automotive pressure testing regulator kit

• Regulator Type: Single-stage nitrogen pressure regulator

• Fittings: CGA580 US standard

• Gauge Size: 2½ inches (63 mm) with guards

• High Pressure Range: Up to 4400 psig (300 bar)

• Low Pressure Range: Up to 1000 psig (70 bar)

• Charging Hose: 38″ yellow nylon barrier hose

• Adapter: Leak testing adapter included

• Coupler: R134a high-side 1/4″ FL-M × 16 mm economy coupler

• Case: Blow-molded carrying case

---

Compatibility

• Automotive air conditioning systems

• HVAC refrigerant systems (pressure testing only)

• Nitrogen-based leak detection procedures

• Service bay and field diagnostics

53010-AUT-Instructions
