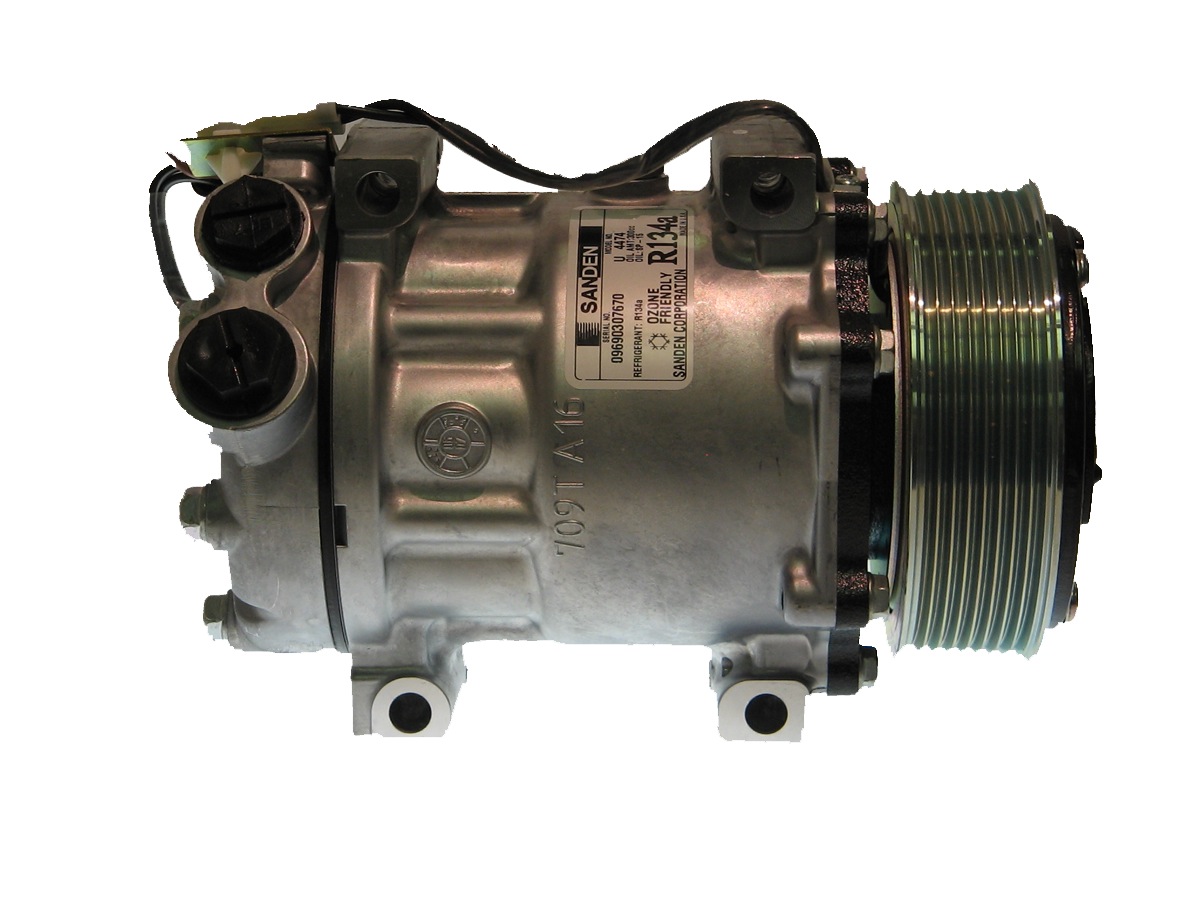

Compressor BT5-7804

Description

Interchange Numbers:
03-0421, 1401361, 1410058, 20-07804, 20-07804, 265-6958, 300-4686, 330-2884, 4379-RD5112450P, 4379-RD5112450P, 4474, 502-214A, 5770, 68575, 75R81252, 7731, 7804, ABP N83 304773, ABP N83 304773, ABP N83 304802, ABP N83 304942, ACC3884, F3HT-19D629AB, F4HT-19D629AA, RDHRD5112450P, RDT75R81252, RDT75R81252, 59-8109

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Long
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: WH
Port Angle: V
Port Clocking: 1:30
Head Port Style: 3/4X7/8 Internal Thr
Rotor Size: 119
Rotor Groove: PV8
Gauge Line
to First Groove: 36.58
Gauge Line
to Middle Groove: 49.00
Gauge Line
to End Groove: 61.50
Coil Voltage: 12
Connector: 2 Wire Ford F5TB-14A464-FA W/ Wedge
