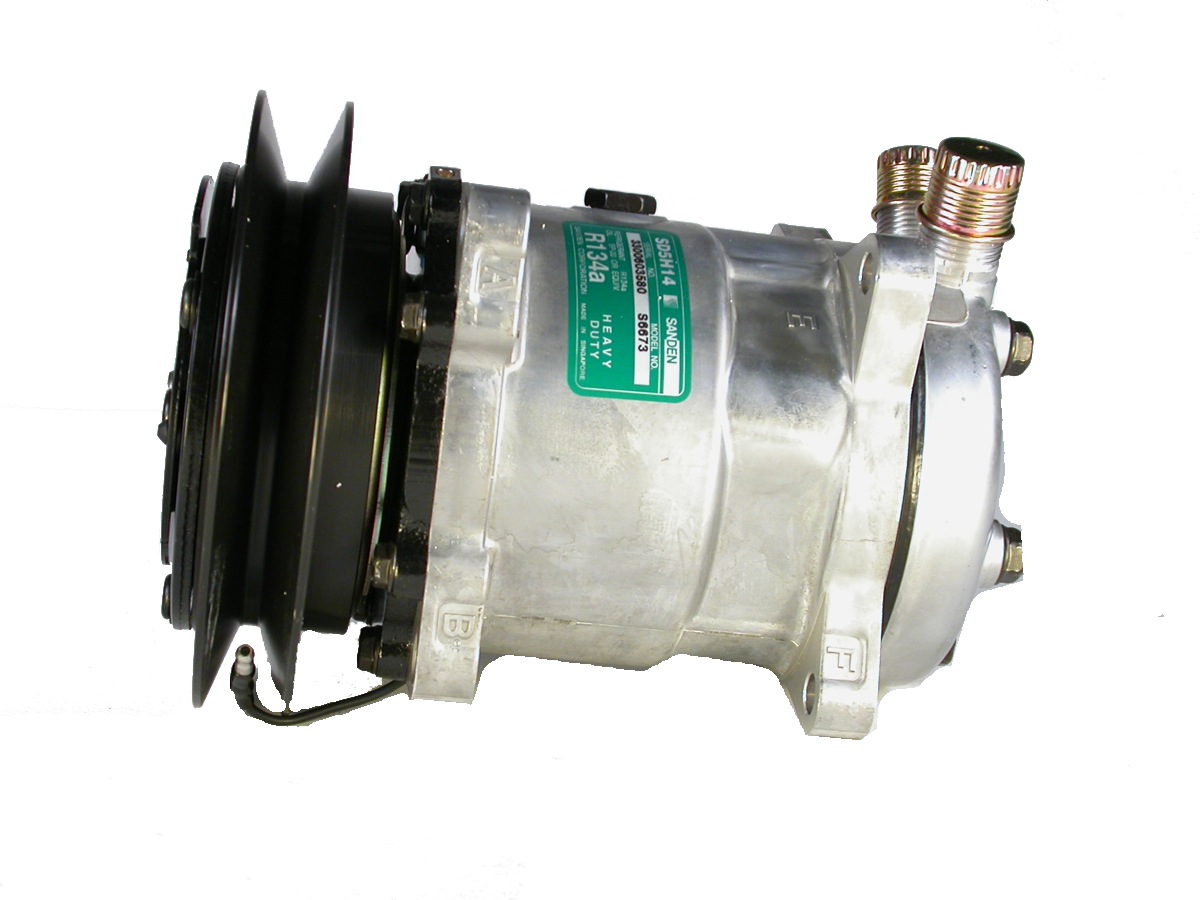

Compressor BT5-6673

Description

Interchange Numbers:
1401210, 1410051, 20-14868, 20-14868, 240-9712, 300-5500, 330-3244, 402307, 4379-RD5108930, 4379-RD5108930, 4379-RD5108930P, 4379-RD5108930P, 4746, 4746SAN, 4747, 4868, 5295, 75R89372, ABP N83 304034, ABP N83 304034, ACC4244, RDHRD5108930P, RDT75R89372, RDT75R89372, ZGG705148,

ESSENTIAL SPECIFICATIONS
Compressor Family: SD5H14
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 131.00
Rotation Direction: CW
Oil Qty (cc): 240
Cylinder Head: FL
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8
Rotor Size: 158
Rotor Groove: C1
Gauge Line
to First Groove: 39.55
Gauge Line
to Middle Groove: 39.55
Gauge Line
to End Groove: 39.55
Coil Voltage: 12
Connector: 1 Wire Male Bullet
