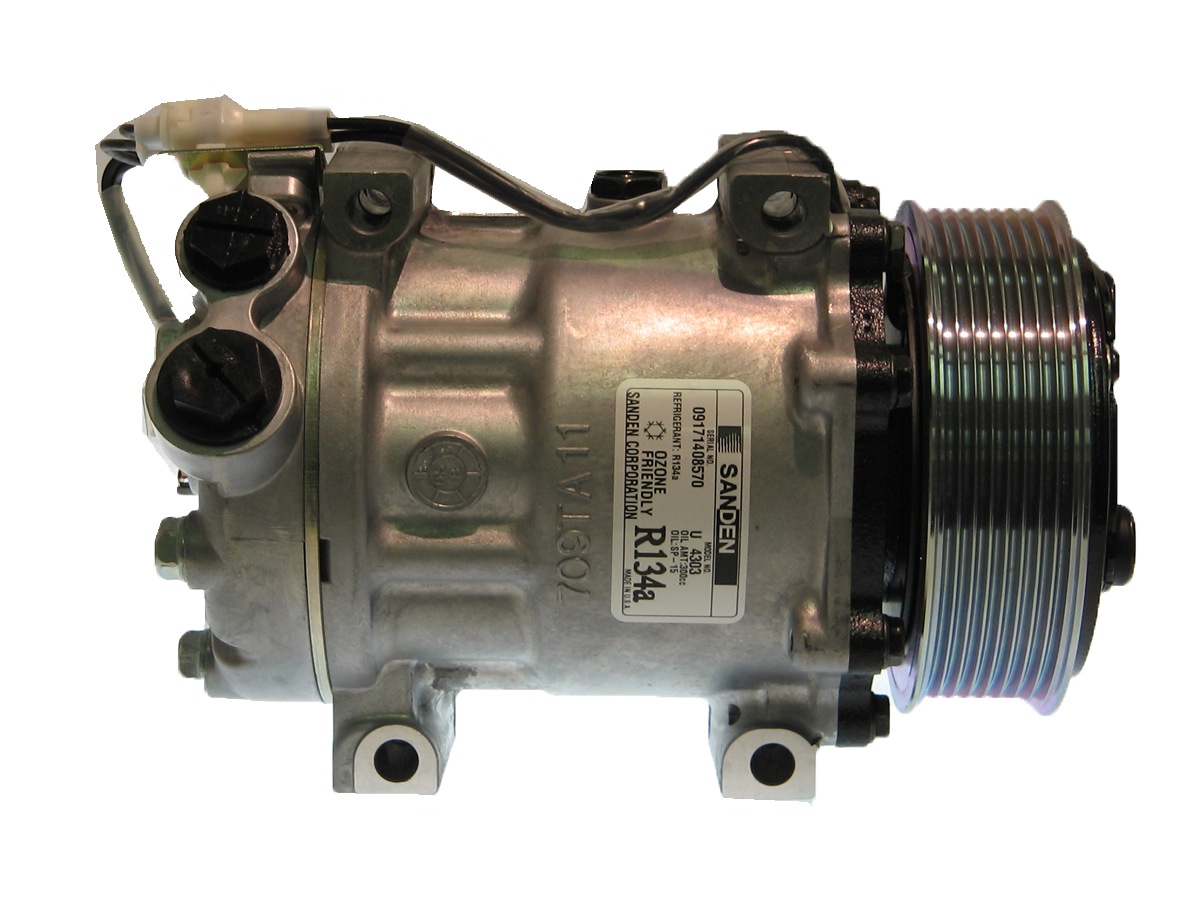

Compressor BT5-4767

Description

Interchange Numbers:
1401353, 20-04303, 265-6637, 300-4687, 330-2888, 4303, 4303SAN, 4379-RD5112370, 4379-RD5112370, 4379-RD5112370P, 4379-RD5112370P, 4422, 4767, 5322, 75R81152, A22-48973-000, ABP N83 304434, ABP N83 304434, ABP N83 304523, ACC3888, N83304523, RDHRD5112370P, RDT75R81152, RDT75R81152, 509-619

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Long
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Cylinder Head: WH
Port Angle: V
Port Clocking: 1:30
Head Port Style: 3/4X7/8 Internal Thr
Rotor Size: 119
Rotor Groove: PV8
Gauge Line
to First Groove: 36.58
Gauge Line
to Middle Groove: 49.00
Gauge Line
to End Groove: 61.50
Coil Voltage: 12
Connector: 3 Wire Delphi #15300003
