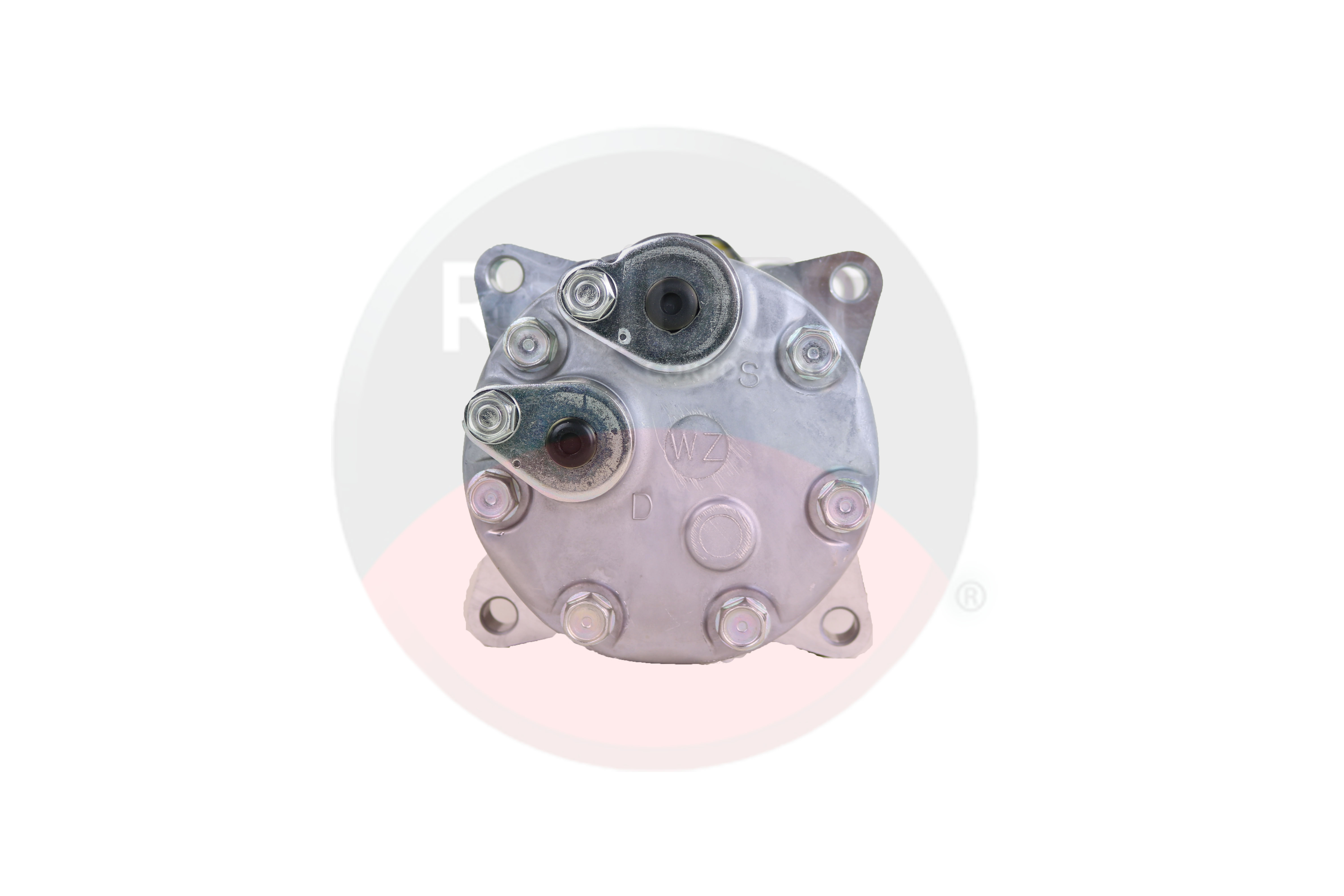

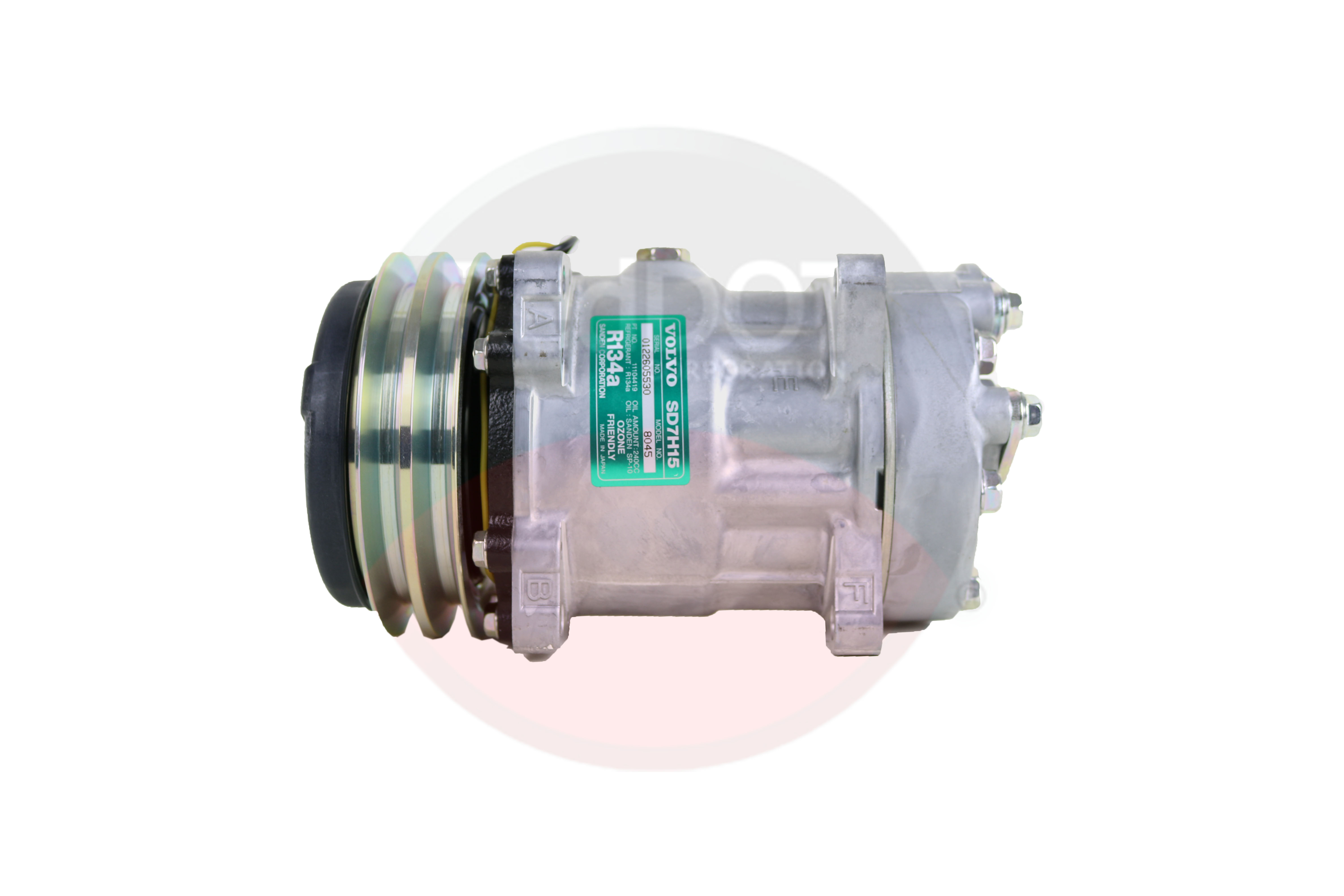

Compressor BT5-8045

Description

Interchange Numbers:
20-08045, 58045, 75R89774, 8045, ABP N83 304467, ABP N83 304467, RDHRD5132080P, 509-6154

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: SHD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 240
Cylinder Head: WZ
Port Angle: H
Port Clocking: Rear
Head Port Style: O-Ring
Rotor Size: 132
Rotor Groove: A2
Gauge Line
to First Groove: 23.80
Gauge Line
to Middle Groove: 0.00
Gauge Line
to End Groove: 39.55
Coil Voltage: 24
Connector: 1 Wire Bullet Volvo 1308436
