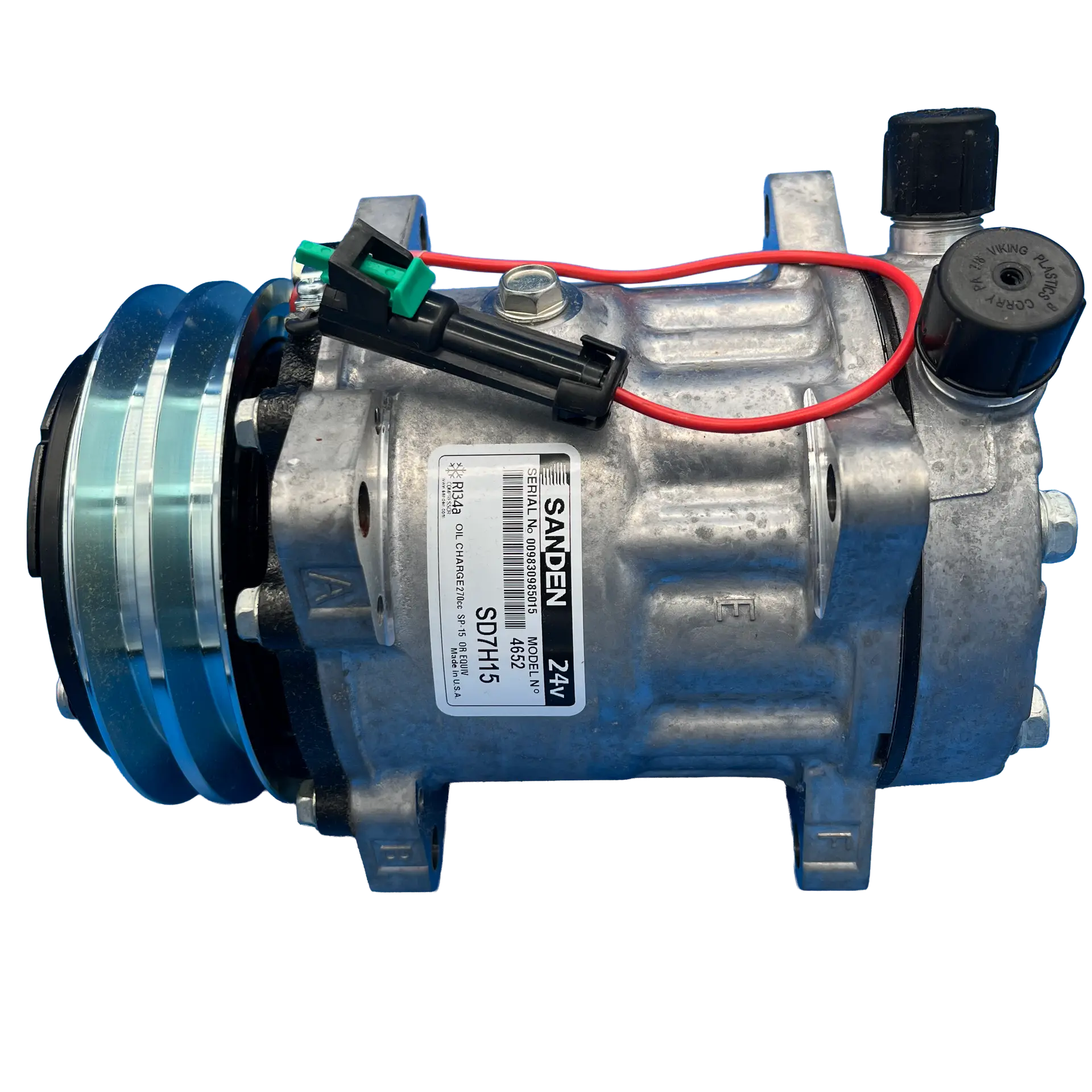

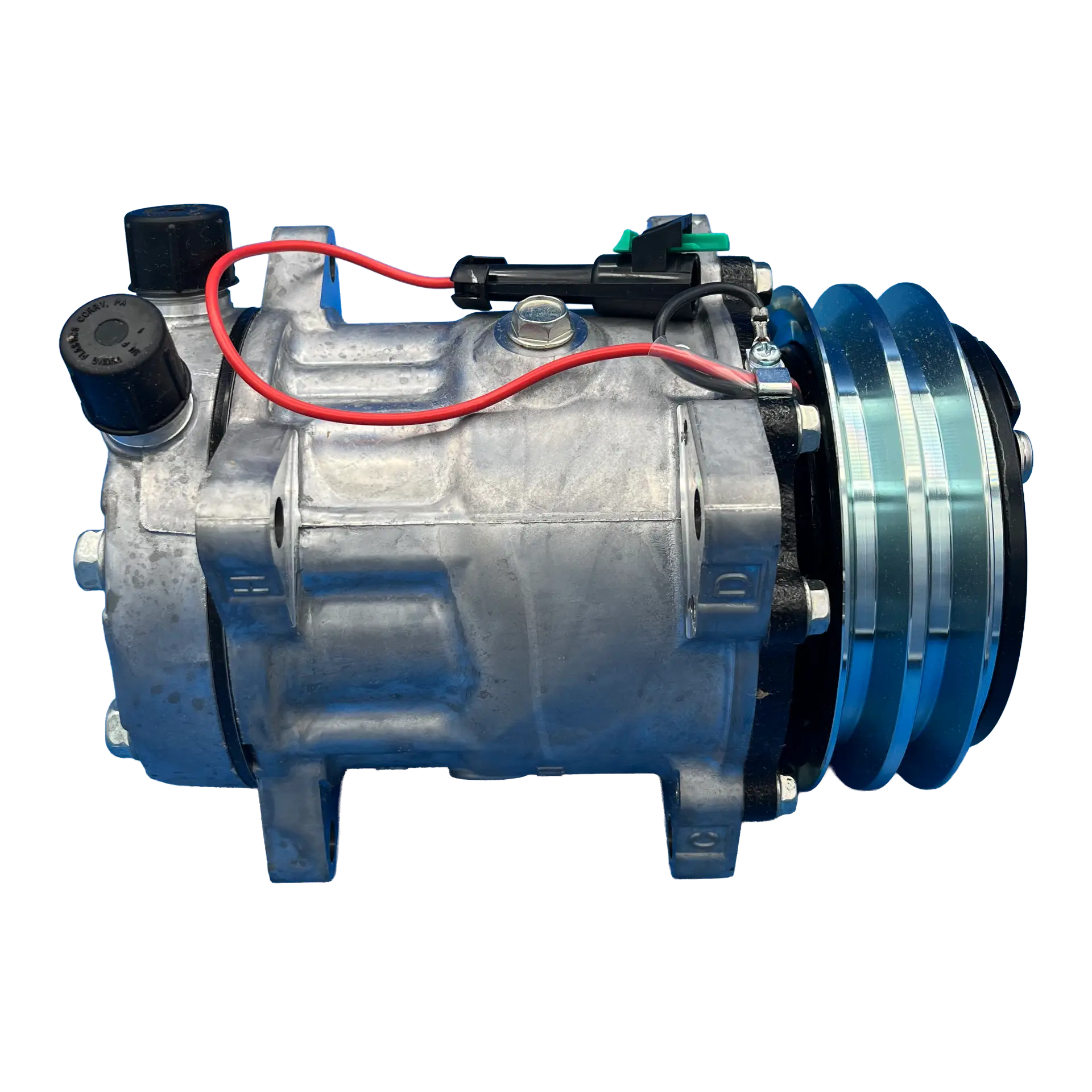

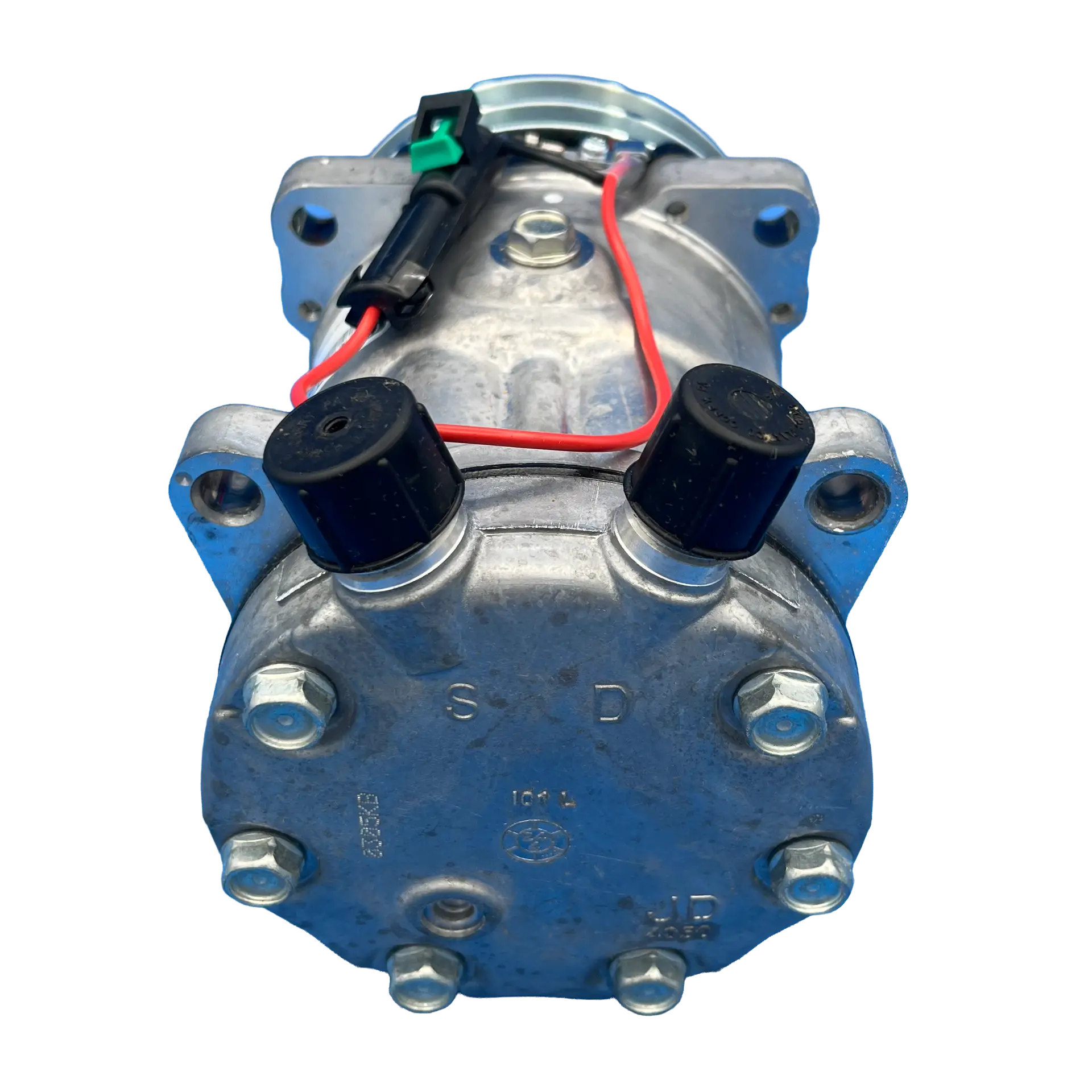

Compressor BT5-4652

Description

Interchange Numbers:
01-05652, 03-3489, 1250974H92, 1401113, 1410039, 1911505800, 20-10097, 20-10097, 20-10097-AM, 20-10097-AM, 232-9250, 300-5157, 330-1835, 402842, 406042, 4379-RD571240, 4379-RD571240, 4379-RD571240P, 4379-RD571240P, 4652, 5752, 75R8424, 815035, ABP N83 304105, ABP N83 304105, ACC2835, E-801180, PB9623, PB9623, RDHRD571240P, RDT75R8424, RDT75R8424, ZGG705177,

ESSENTIAL SPECIFICATIONS
Compressor Family: SD7H15
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 270
Cylinder Head: JD
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8
Rotor Size: 125
Rotor Groove: A2
Gauge Line
to First Groove: 23.80
Gauge Line
to Middle Groove: 0.00
Gauge Line
to End Groove: 39.55
Coil Voltage: 24
Connector: 1 Wire Male Packard #12015791 W/ Diode
