BTRAC BT7-0110 Condenser Assembly – 4 Row
$233.29
The BTRAC BT7-0110 condenser assembly is a 4-row, tube-and-fin condenser engineered for demanding mobile A/C applications. It features #6 condenser fittings, copper tubing, aluminum fins, and welded mounting studs for secure installation.
Out-of-stock items can be backordered with a typical 1–3 week lead time, which may vary by product.
In stock (can be backordered)
Description
The BTRAC BT7-0110 condenser assembly delivers dependable heat rejection in compact mobile and equipment HVAC systems. Its 4-row tube-and-fin design increases surface area, which helps the system shed heat efficiently even under sustained load.
In addition, the condenser uses smooth-bore copper tubing paired with aluminum fins, allowing consistent refrigerant flow while promoting effective airflow across the core. The 12 fins per inch spacing balances heat transfer with airflow, making the condenser suitable for a wide range of operating conditions.
For durability, the BT7-0110 includes 18-gauge galvanized steel brackets and six welded flag studs, which simplify mounting and help maintain alignment in high-vibration environments. Furthermore, the #6 condenser fittings provide a secure, leak-resistant connection when installed with new O-rings and proper torque.
Because opening the A/C system introduces moisture, always replace the receiver-drier and evacuate the system thoroughly when installing a new condenser.
Construction & Design
-
4-row tube-and-fin condenser assembly
-
Smooth-bore copper tubing
-
Aluminum fin pack
-
12 fins per inch (FPI)
-
Galvanized steel mounting brackets
Specifications
-
BTRAC Part Number: BT7-0110
-
Product Type: Condenser Assembly
-
Rows: 4
-
Tubes per Row: 9
-
Tubing Size: 0.375 in (3/8 in)
-
Fin Material: Aluminum
-
Fin Height: 9.0 in
-
Fin Thickness: 0.006 in
-
Fin Spacing: 12 FPI
-
Brackets: 18-ga galvanized steel

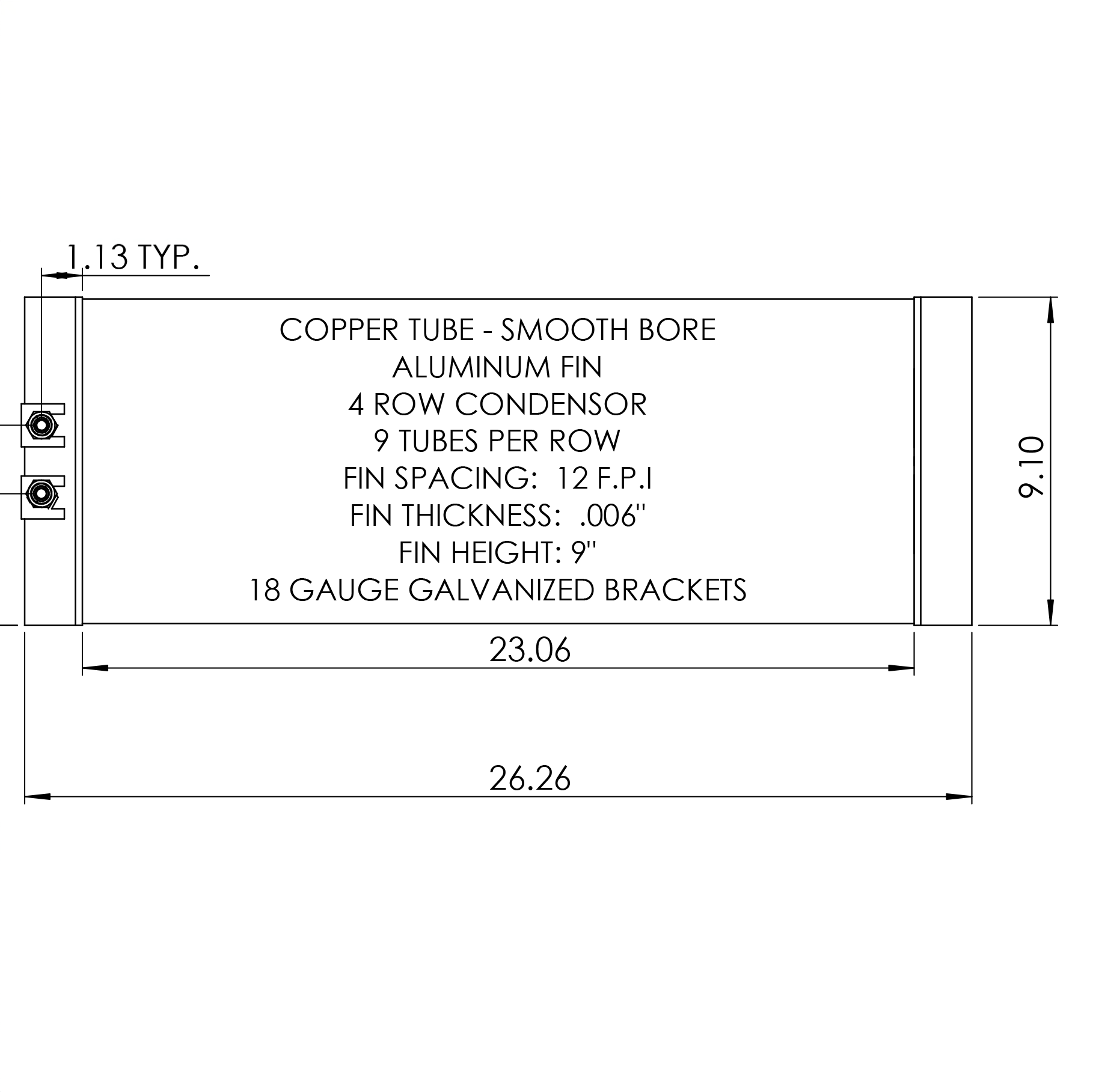

Dimensions
-
Overall Width: 26.26 in
-
Core Width: 23.06 in
-
Overall Height: 9.10 in
-
Overall Thickness: 3.00 in
Connection Details
-
Inlet / Outlet: #6 condenser fittings (×2)
-
Tube Type: Smooth-bore copper
Mounting Details
-
Mounting Studs: (6) flag studs
-
Stud Size: 5/16 in × 0.75 in
-
Bracket Material: Galvanized steel
Installation Notes
-
Ensure unobstructed airflow across the entire fin surface
-
Use new O-rings lubricated with approved refrigerant oil
-
Replace the receiver-drier whenever the system is opened
-
Confirm mounting clearances before final installation
