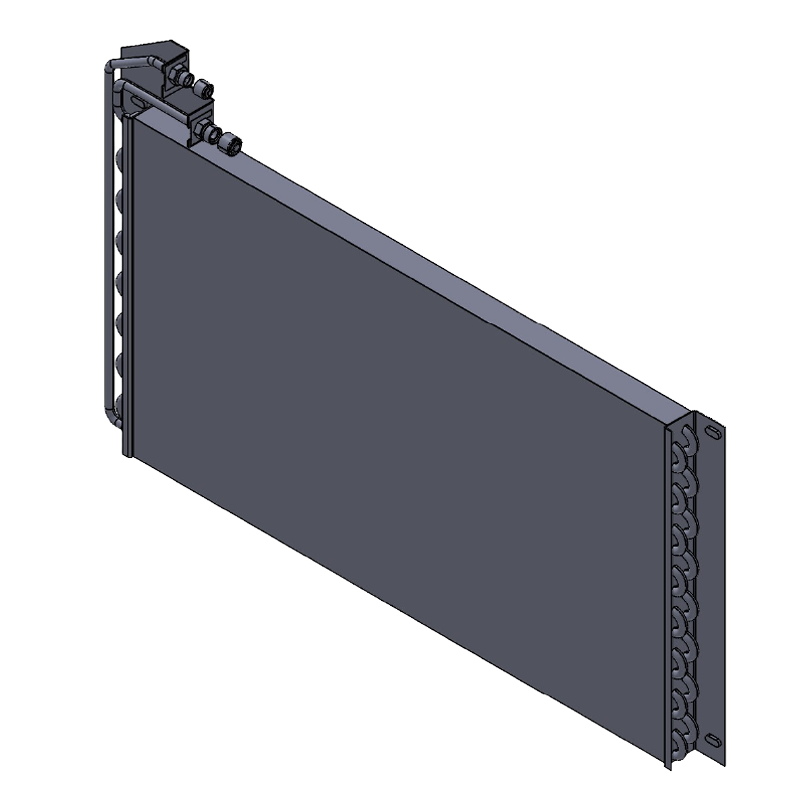

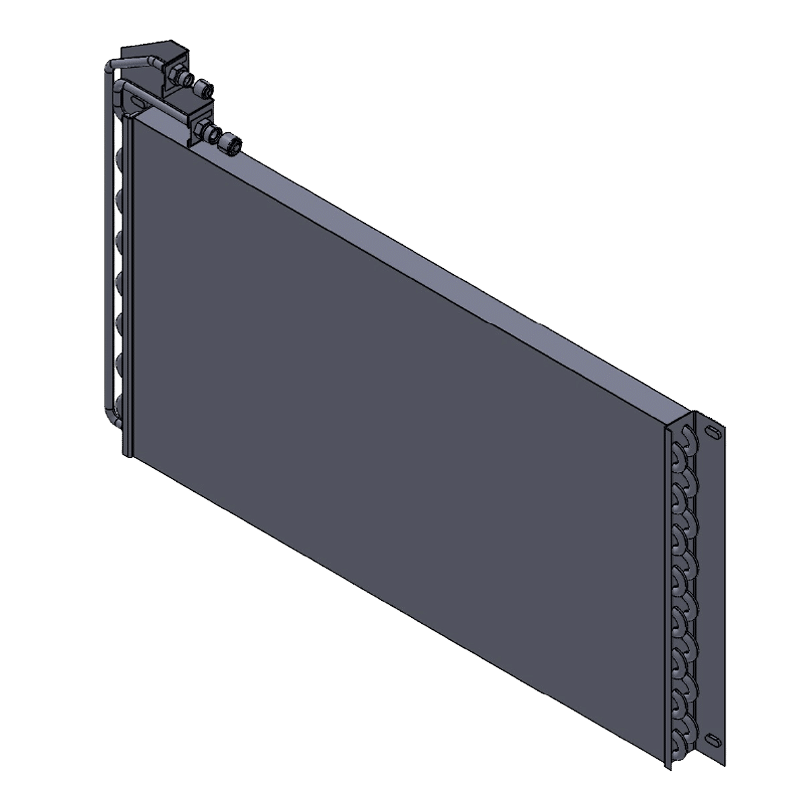

BT7-7746 Condenser – Copper Tube & Aluminum Fin, Black Powder Coat
$361.90
The BTRAC BT7-7746 Condenser is a heavy-duty condenser designed for mobile and industrial A/C systems that require robust construction and consistent heat rejection. It features copper tubing, aluminum fins, and a full black powder-coat finish for durability in harsh environments.
Out-of-stock items can be backordered with a typical 1–3 week lead time, which may vary by product.
In stock (can be backordered)
Description
The BT7-7746 condenser delivers reliable thermal performance in demanding mobile A/C applications. Because it uses copper tubing paired with aluminum fins, it balances strong heat transfer with long-term durability. As a result, this condenser performs well in systems exposed to vibration, debris, and variable operating conditions.
Additionally, the condenser features 16-gauge end plates and a full black powder-coat finish, which helps protect against corrosion and wear. Standard male insert O-ring fittings simplify hose connections, while the wide mounting footprint supports secure installation.
Moreover, the BT7-7746 is designed with serviceability in mind. Clearances around the fittings and slots allow proper hose routing while avoiding interference with mounting hardware.
Key Features
-
Copper tube and aluminum fin construction
-
Tube-and-fin condenser design
-
Entire assembly finished in black powder coat
-
Heavy-duty 16-gauge end plates
-
Standard male insert O-ring fittings
-
Built for mobile and industrial A/C systems
Dimensional Specifications
-
Overall Width: 33.50 in
-
Mounting Width: 32.25 in
-
Core Width: 30.00 in
-
Overall Height: 16.50 in
-
Core Height: 16.50 in
-
Overall Thickness: approx. 1.75 in
-
End Plate Thickness: 16 ga (0.060 in nominal)
Fin & Core Details
-
Fin Density: 4 fins per inch (FPI)
-
Fin Height: 16.5 in
-
Fin Width: 1.375 in
-
Fin Spacing: 0.25 in
-
Fin Thickness: 0.0075 in
Connection Information
-
Inlet Fitting:
-
#8 Male Insert O-Ring
-
Thread: 3/4-16 UNF-2A
-
Hex: 3/4 in
-
-
Outlet Fitting:
-
#6 Male Insert O-Ring
-
Thread: 5/8-18 UNF-2A
-
Hex: 3/4 in
-
Aluminum caps are supplied on both fittings for shipping protection.
Mounting Information
-
Slotted side mounting holes
-
Wide mounting footprint for stability
-
Designed to prevent tube interference with protruding studs or bolts
-
Supports horizontal or vertical orientation depending on application
Materials
-
Tubes: Copper
-
Fins: Aluminum
-
End Plates: Steel, 16 gauge
-
Finish: Entire assembly black powder coated
Application Notes
-
Suitable for mobile, industrial, and off-highway A/C systems
-
Ensure proper airflow across the full fin surface
-
Replace the receiver-drier whenever the system is opened
-
Verify hose routing clearance before final mounting
