BT7-0597 Condenser Coil Assembly
$494.15
The BTRAC BT7-0597 condenser coil supports mobile air conditioning systems that require a tall, narrow condenser with top-mounted fittings and a vertical airflow design. It uses an aluminum coil and defined mounting dimensions to support reliable installation in OE and custom HVAC applications.
Out-of-stock items can be backordered with a typical 1–3 week lead time, which may vary by product.
Available on backorder
Description
The BTRAC BT7-0597 condenser coil is designed for mobile air conditioning systems that require efficient heat rejection in a vertical mounting orientation. Its tall core profile allows consistent airflow across the coil surface, which helps maintain stable refrigerant pressures during operation.
Because the condenser uses #8 male fittings positioned at the top, it supports clean hose routing and simplifies installation in vertically mounted applications. In addition, the straight-through coil layout allows even refrigerant distribution from top to bottom, which helps support steady thermal performance.
The aluminum coil construction improves heat transfer while keeping overall weight manageable. As a result, the BT7-0597 performs reliably in vocational equipment, specialty vehicles, and other mobile applications where space constraints and vertical mounting are required.
Furthermore, the defined mounting slot pattern and consistent overall dimensions support repeatable fitment across builds. This consistency helps reduce installation time and ensures predictable system performance once charged and placed into service.
Specifications
Overall Dimensions
-
Overall Height: 34.63 in (ref.)
-
Overall Width: 14.00 in
-
Core Depth: 2.50 in
-
Top Offset: 1.50 in
-
Center Span: 6.75 in
Core & Construction
-
Condenser Type: Condenser coil
-
Construction: Aluminum
-
Finish: None specified (per engineering notes)
-
Orientation: Vertical airflow design
Fittings
-
Fitting Size: #8 Male
-
Port Location: Top-mounted
-
Port Orientation: Straight
Mounting Details
-
Mounting Style: Slotted side brackets
-
Slot Length: 1.88 in
-
Drill Reference: 1/4 in hole, 180° opposite side (per detail view)
Fitment Notes
-
Designed for vertical-mount mobile A/C condenser applications
-
Suitable for custom HVAC kits and OE-style systems
-
Verify hose routing and airflow direction during installation
Important Notes
-
Dimensions are in inches
-
Do not scale drawing for fabrication
-
Hose length tolerances apply per BTRAC standards

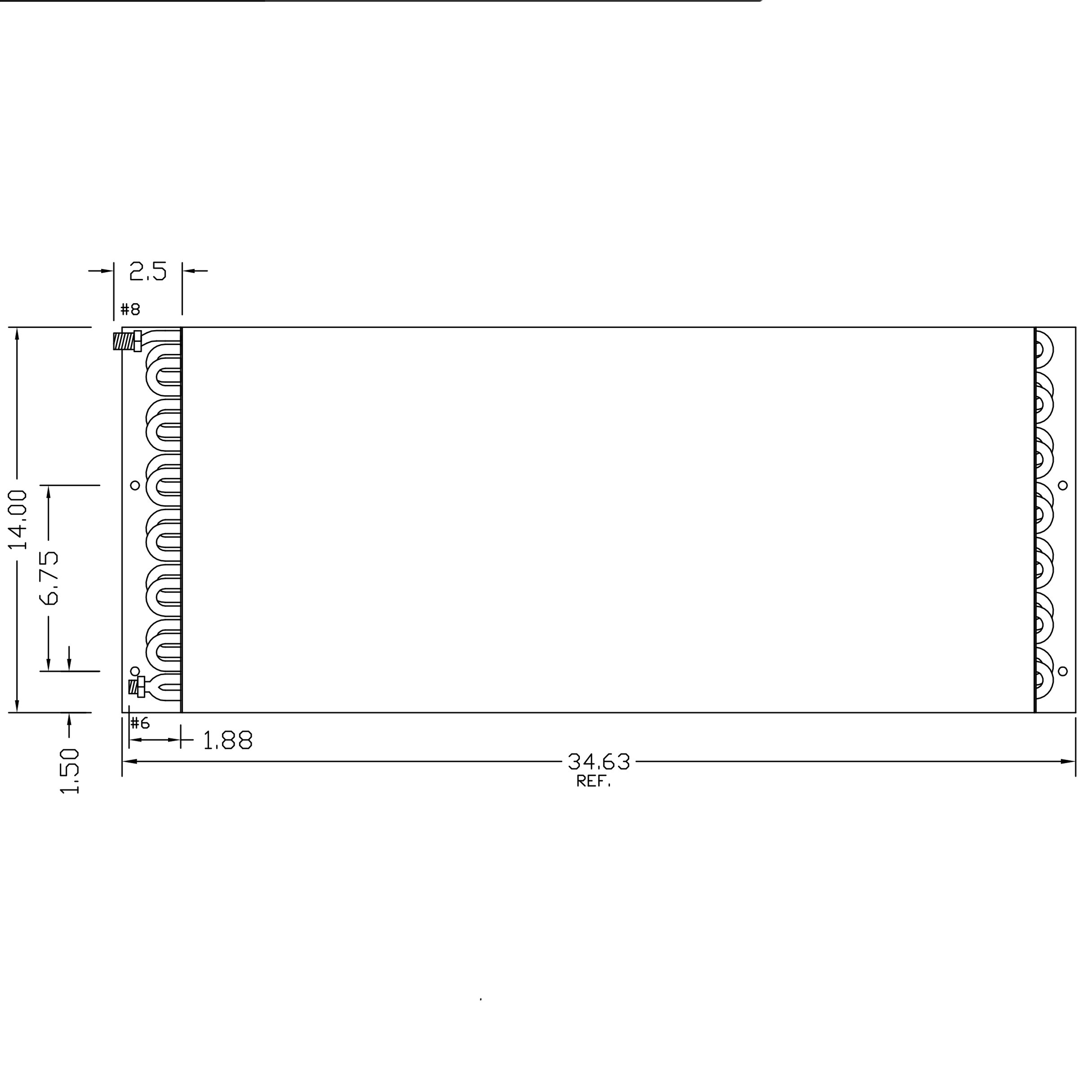

BT7-0597 Drawing
Additional information
| Weight | 3.3 lbs |
|---|---|
| Height | |
| Width | |
| Thickness | |
| Fitting Type | |
| Fitting Location |
