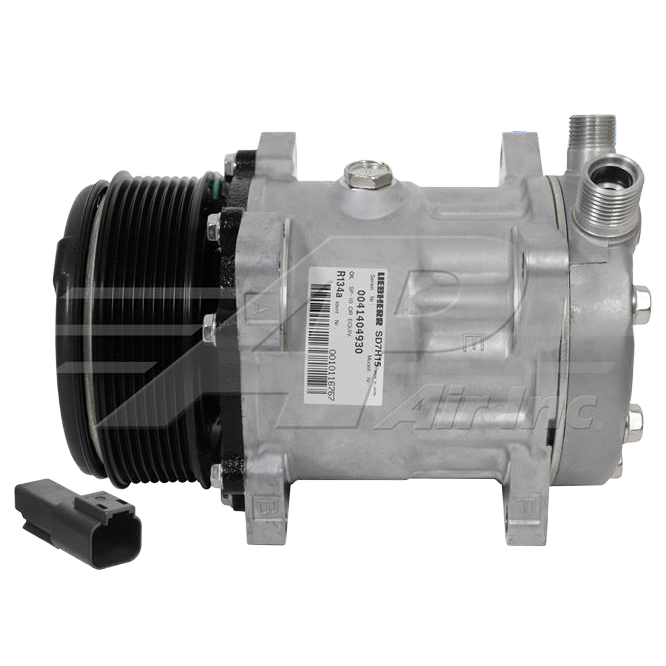

BT5-8233 Compressor – OE Sanden SD7H15 24V A/C Compressor, JE Head

Description

The BT5-8233 Sanden SD7H15 compressor delivers proven OEM reliability for equipment requiring a 24V, high-capacity serpentine drive system. Specifically, the 8-groove clutch design allows efficient torque transfer, which helps maintain consistent compressor engagement under load.

In addition, the JE head configuration supports secure hose connections and clean system routing, while the R134a PAG oil charge ensures smooth internal lubrication and long service life. Therefore, this compressor is an ideal replacement when OEM fitment, durability, and cooling consistency are required.

---

Key Features

• Genuine OE Sanden SD7H15 platform

• 24V electrical operation

• 119mm 8-groove serpentine clutch

• JE head configuration

• OEM-style oil charge and dimensions

---

Essential Specifications

• BTRAC SKU: BT5-8233

• Compressor Type: SD7H15

• Application: Heavy-Duty / Mobile HVAC

• Voltage: 24V

• Refrigerant: R134a

• Oil Type: PAG Oil

• Oil Quantity: 200cc

• Clutch Diameter: 119mm (4.68″)

• Grooves: 8

• Belt Type: Serpentine

---

Head, Drive & Mechanical Details

• Head Type: JE

• Coil Position: N/A

• Gauge Line: 46.55mm

---

OEM & Reference Numbers

AT196780
AT266646
LW10116767

---

Applications

• Heavy-duty equipment with 24V electrical systems

• Mobile HVAC systems using SD7H15 Sanden compressors

• OEM and OE-equivalent replacement installations
