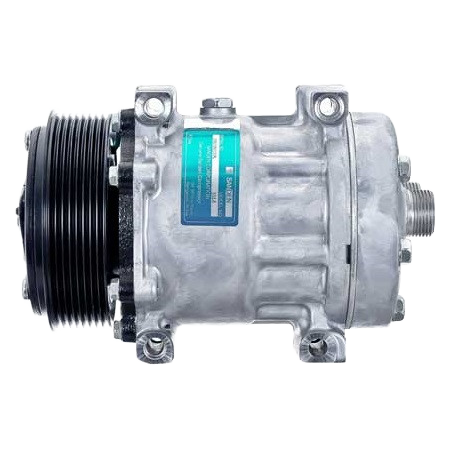

BT5-8144 Heavy-Duty A/C Compressor – Sanden SD7H15-SHD, 24V, 8-Groove

Description

The BTRAC BT5-8144 A/C compressor is built for farm and off-road HVAC systems that operate under heavy load and long duty cycles. It uses the Sanden SD7H15-SHD platform, which supports high refrigerant flow and dependable cooling in demanding conditions.

Because this compressor uses a direct-mount configuration, it installs cleanly into compatible brackets. In addition, the horizontal tube-O fittings on the MD head simplify hose routing and reduce stress at the connections. As a result, installation is more consistent and long-term reliability improves.

The BT5-8144 operates on a 24-volt electrical system and uses an 8-groove serpentine clutch with a 119 mm diameter. Therefore, it delivers smooth belt engagement and stable power transfer during continuous operation.

This unit ships with a 135 cc factory oil charge and uses PAG 100 oil for R134a refrigerant systems. Furthermore, the long key shaft, clockwise rotation, and diode-protected wiring support dependable operation in severe service applications.

---

Specifications

General

• Compressor Model: SD7H15-SHD

• Application: Farm & Off-Road

• Refrigerant Type: R134a

• Oil Type: PAG 100

• Factory Oil Charge: 135 cc

• Rotation: CW

Clutch & Drive

• Voltage: 24V

• Clutch Diameter: 119 mm

• Grooves: 8

• Belt Type: Serpentine

• Shaft Type: Long key shaft

Head & Fittings

• Head Type: MD

• Fitting Style: Tube-O 1 × 14

• Port Position: Horizontal

• O-Ring #1: 0015

• O-Ring #2: 0015

Electrical

• Wire Type: 1-wire

• Diode Protection: Yes

Mounting

• Mounting Type: Direct mount

---

Replacement Components

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: 5632

---

OEM Reference Numbers

• MEI: 58144

• Manufacturer #: 8144

• OEM #: 8500795

---

Applications & Notes

• Designed for farm and off-road HVAC systems

• 24-volt electrical platforms

• SD7H15-SHD sealed heavy-duty configuration

• MD head with tube-O fittings

• Always verify mounting, belt alignment, and electrical requirements before installation
