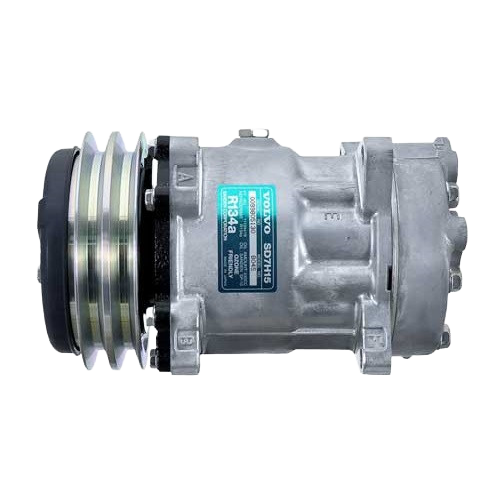

BT5-8045 Compressor – Sanden SD7H15HD 24V R134a, 132mm 2-Groove Clutch, WZ (Volvo Offset) Head

Description

Product Description

The BT5-8045 compressor is built on the proven Sanden SD7H15HD platform, a 7-cylinder, heavy-duty design widely used in agricultural, construction, and off-road equipment.

This unit operates on 24 volts and is factory charged with 240cc of PAG100 oil for R134a refrigerant systems. The WZ cylinder head features a rear O-ring pad with a Volvo off-set, top-left orientation, and a suction-over-discharge port arrangement, allowing OE-correct hose routing in Volvo off-road applications.

A 132mm 2-groove clutch, designed for two 1/2″ belts, provides reliable torque transfer under sustained load. The ear 8 long mounting configuration and long keyed shaft support compatibility across a wide range of SD7H15HD off-road installations.

---

Key Features

• Sanden SD7H15HD compressor platform

• 24V operation for farm & off-road HVAC systems

• 7-cylinder design with 9.5 cu. in. displacement

• WZ head with Volvo offset rear O-ring pad

• Suction-over-discharge port layout

• 132mm 2-groove clutch for dual 1/2″ belts

• Ear 8 long mounting configuration

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-8045

• Product Name: Compressor

• Compressor Family: SD7H15HD

• Model: SD7H15HD

• Application: Farm & Off-Road Applications

• Refrigerant Type: R134a

• Voltage: 24V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Ear 8 Long

• Shaft Type: Long Key Shaft

• Head Type: WZ

• Fitting Style: Rear Pad O-Ring

• Fitting Port Position: Horizontal

• Port Configuration: Volvo Offset – Top Left, Suction Over Discharge

• Clutch Diameter: 132mm

• Number of Grooves: 2

• Belt Type: Two 1/2″ Belts

• Factory Oil Charge: 240cc

• Oil Type: PAG100

• Wire Type: 1-Wire Bullet (Volvo 1308436)

• Diode Protection: None

---

Service & Seal Information

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: NSS

---

Cross References / OEM Numbers

MEI

• 58045

DTAC

• 01-08045

Truck Air

• 03-3513

Volvo Off-Road

• 11104419

---

Applications

• Volvo off-road and construction equipment

• Agricultural machinery HVAC systems

• Farm and industrial equipment

• 24-volt R134a mobile air conditioning systems
