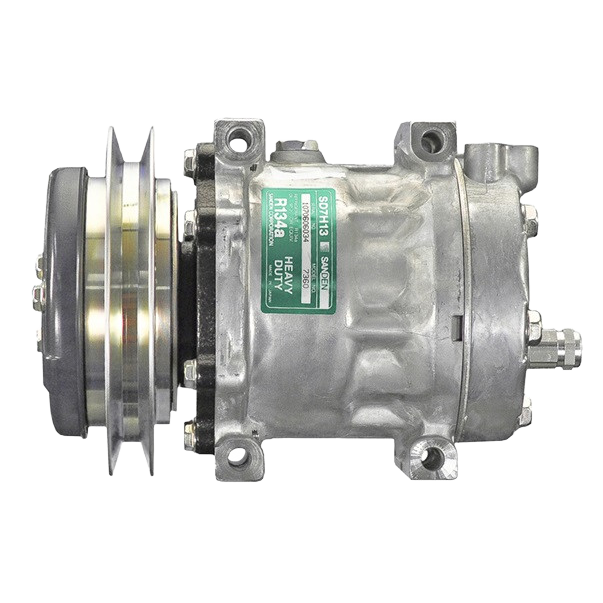

BT5-7360 Compressor – Sanden SD7H13HD 24V A/C Compressor, WL Head

Description

The BT5-7360 Sanden SD7H13HD compressor is designed to provide reliable, consistent cooling in agricultural, construction, and off-road equipment. Specifically, this unit operates on a 24V electrical system and uses a single 5/8″ belt drive, making it well suited for applications requiring higher belt load capacity.

In addition, the WL head with pad fittings supports clean hose routing and secure sealing, while the direct-mount design ensures proper alignment and simplified installation. A 135cc PAG100 factory oil charge helps promote smooth operation and long service life.

Therefore, this compressor is an excellent replacement choice when OEM fitment, durability, and performance are critical.

---

Key Features

• Heavy-duty Sanden SD7H13HD platform

• 24V operation for farm and off-road equipment

• 146mm single-groove clutch

• WL pad head configuration

• OEM-style direct SD708 / SD7H13 mounting

---

Essential Specifications

• BTRAC SKU: BT5-7360

• MEI Part No.: 57360

• Sanden Part No.: 7360

• Compressor Family: SD7H13HD

• Application: Farm & Off-Road Applications

• Voltage: 24V

• Refrigerant: R134a

• Oil Type: PAG100

• Factory Oil Charge: 135cc

• Cylinders: 7

• Displacement: 7.9 cu.in.

• Clutch Diameter: 146mm

• Grooves: 1

• Belt Type: 5/8″ Belt

• Mounting Type: Direct Mount (SD708 / SD7H13)

• Rotation: CW

---

Head, Fittings & Electrical

• Head Type: WL

• Fitting Style: Pad

• Wire Type: 1-Wire Male Bullet

• Diode Protection: None

---

Service Components

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: 50010

---

Interchange & Reference Numbers

7360,
03-3533,
TDKR151310S, TDKR151350S,
509-3991,
300-5341, 300-5341A,
YX91V00001F1, YX91V00002F2,
37-13258,
12114,
T4542

---

Applications

• Agricultural equipment

• Construction and off-road machinery

• Mobile HVAC systems requiring 24V single-belt compressors
