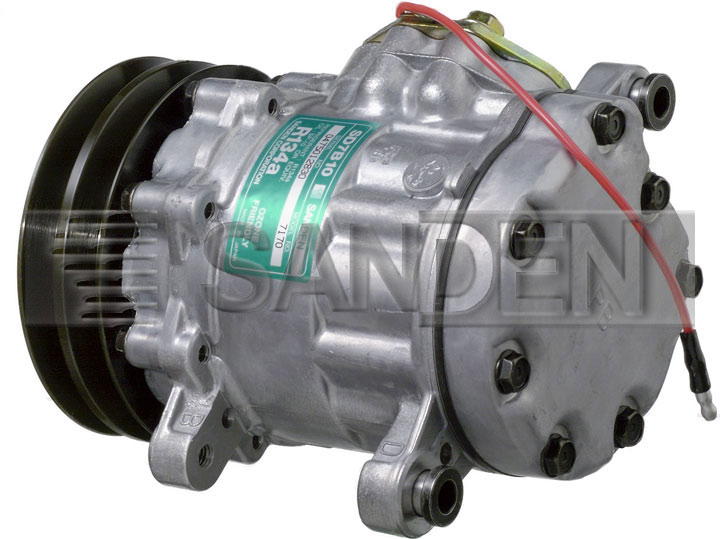

BT5-7170 A/C Compressor – SD7B10, 12V, 2-Groove

Description

The BTRAC BT5-7170 A/C compressor is designed for mobile HVAC systems that operate under steady load. It uses the SD7B10 compressor family, which supports dependable refrigerant flow in demanding conditions.

Because this unit uses a swing alternator mounting style, it installs cleanly into compatible brackets. In addition, the two-groove clutch provides stable belt engagement. As a result, power transfer remains smooth during normal operation.

The BT5-7170 is configured for R134a refrigerant and ships with the specified 100 cc oil charge. Therefore, it integrates easily into modern mobile A/C systems with minimal preparation.

Furthermore, the compressor uses a PB cylinder head with O-ring ports and a 12:00 port clocking. This layout supports clean hose routing and consistent service access.

---

Essential Specifications

General

• Compressor Family: SD7B10

• Style: STD

• Mount Type: SD7B Swing Alternator (2 Top / 2)

• Ear ID: T59 / B59

• Refrigerant: R134a

• Displacement: 99.80

• Rotation Direction: CW

Clutch & Drive

• Voltage: 12V

• Grooves: 2

• Rotor Size: 115

• Rotor Groove: A2

Oil

• Oil Quantity: 100 cc

Head & Ports

• Cylinder Head: PB

• Port Angle: T

• Port Clocking: 12:00

• Head Port Style: O-Ring

Electrical

• Coil Voltage: 12V

• Connector: 1-wire male bullet

Gauge Line Measurements

• To First Groove: 28.50

• To Middle Groove: 0.00

• To End Groove: 44.25

---

Interchange Numbers

1001323229
1401516
20-10072
57170
7170
75R90202
RDT75R90202
CO7170C
CO-2101CA

---

Applications & Notes

• Designed for 12-volt mobile A/C systems

• SD7B10 compressor configuration

• Two-groove belt drive

• O-ring port fittings with 12:00 clocking

• Always verify mounting, belt alignment, and refrigerant compatibility before installation
