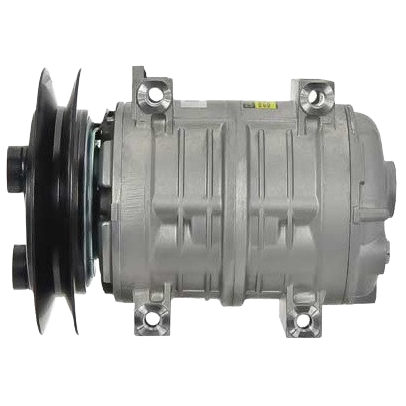

BT5-51606 Compressor – Seltec / Valeo TM16HD/HS 12V R134a, 158mm 1-Groove Variable Clutch, G Head

Description

Product Description

The BT5-51606 compressor is built on the proven Seltec / Valeo TM16HD/HS platform, commonly used across truck, bus, and specialty vehicle air conditioning systems. Its 6-cylinder design and 9.7 cu. in. displacement provide strong refrigerant flow while maintaining smooth, dependable operation.

This unit is factory-charged with 180cc of PAG46 oil and configured for R134a refrigerant. The G head uses a universal O-ring pad with horizontal port orientation, allowing adaptable hose routing across a wide range of installations. A 158mm single-groove variable clutch supports legacy belt setups requiring flexible belt widths.

Because of its direct-mount design, splined shaft, and bi-directional rotation (CW / CCW) capability, the BT5-51606 offers broad application coverage in multi-fit HVAC systems.

---

Key Features

• Seltec / Valeo TM16HD/HS compressor platform

• 12V operation for mobile HVAC systems

• 6-cylinder design with 9.7 cu. in. displacement

• G head with universal O-ring pad fittings

• 158mm single-groove variable clutch

• Direct-mount configuration

• Bi-directional rotation (CW / CCW)

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-51606

• Product Name: Compressor

• Compressor Family: TM16

• Model: TM16HD/HS

• Application: Multi-Fit Applications

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: CW / CCW

• Number of Cylinders: 6

• Displacement: 9.7 cu. in.

• Mounting Type: Direct Mount

• Shaft Type: Splined Shaft

• Head Type: G

• Fitting Style: Universal O-Ring Pad

• Fitting Port Position: Horizontal

• Clutch Diameter: 158mm

• Number of Grooves: 1

• Belt Type: Variable Groove

• Factory Oil Charge: 180cc

• Oil Type: PAG46

• Wire Type: 1-Wire Bullet

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: 5054

• Replacement Head Assembly: NSS

---

Cross References / Interchange Numbers

Seltec / Valeo

• 103-56410

• 488-46410

• 488-56410

MEI / AirSource

• 51606

Texas Truck AC

• 300-6888

Omega

• 20-46410

Primatech

• PTAC51606

Truck Air / MEI

• 03-3116T

TruckAC+

• T4801

---

Applications

• Multi-fit mobile HVAC systems

• Trucks, buses, and specialty vehicles

• Installations requiring variable-groove belt compatibility

• 12-volt R134a air conditioning systems
