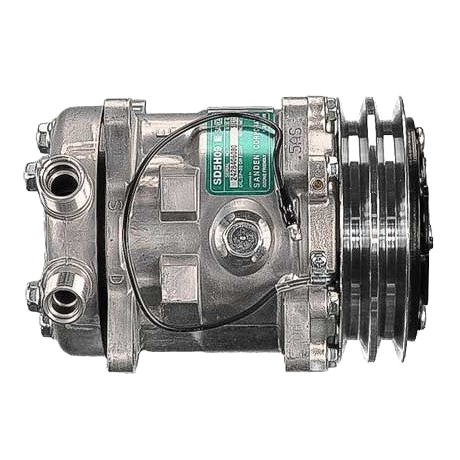

BT5-5072 Compressor – SD5H09HD 12V R134a, 125mm 2-Groove Clutch, FL Head

Description

Product Description

The BT5-5072 compressor is built on the proven Sanden SD5H09HD platform, offering a smaller footprint while maintaining dependable performance for mobile air conditioning systems. Its 5-cylinder design and 5.3 cu. in. displacement provide efficient refrigerant flow, making it well suited for lighter-duty and multi-fit applications where packaging space is limited.

Additionally, this unit is factory-charged with 100cc of PAG100 oil and configured for R134a refrigerant. The FL head features male insert O-ring #8 and #10 fittings with a vertical port orientation, supporting secure hose connections and flexible routing. A 125mm 2-groove clutch, designed for two 1/2″ belts, ensures stable power transfer.

Because of its ear-mount configuration, clockwise rotation, and simple 1-wire bullet electrical connection, the BT5-5072 is a versatile replacement option across a wide range of mobile HVAC systems.

---

Key Features

• Compact Sanden SD5H09HD compressor platform

• 12V operation for mobile HVAC systems

• 5-cylinder design with 5.3 cu. in. displacement

• FL head with vertical male insert O-ring fittings

• 125mm 2-groove clutch for dual 1/2″ belts

• Ear-mount configuration

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-5072

• Product Name: Compressor

• Compressor Family: SD5H09

• Model: SD5H09HD

• Application: Multi-Fit Applications

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: Clockwise (CW)

• Number of Cylinders: 5

• Displacement: 5.3 cu. in.

• Mounting Type: Ear Mount

• Shaft Type: Keyed Shaft

• Head Type: FL

• Fitting Style: Male Insert O-Ring #8 & #10

• Fitting Port Position: Vertical

• Fitting Size: 3/4″ × 7/8″

• Clutch Diameter: 125mm

• Number of Grooves: 2

• Belt Type: Two 1/2″ Belts

• Factory Oil Charge: 100cc

• Oil Type: PAG100

• Wire Type: 1-Wire Male Bullet

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: 5625

---

Interchange Numbers

Manufacturer / Catalog

• 5072

• 5786

Alliance

• 304622

CoolStar

• 330-1310

Eagle

• 405196

Truck Air

• 03-3400

Industry & Aftermarket

• 1401391

• 20-10062

• 232-9202

• 300-4209

• 4379-RD5103070

• 4379-RD5103070P

• 75R82102

• ABP N83 304622

• ACC2310

• RDHRD5103070P

• RDT75R82102

• TCU18904

---

Applications

• Multi-fit mobile HVAC systems

• Light-duty trucks and specialty vehicles

• Compact equipment requiring SD5H09HD compressors

• 12-volt R134a air conditioning systems
