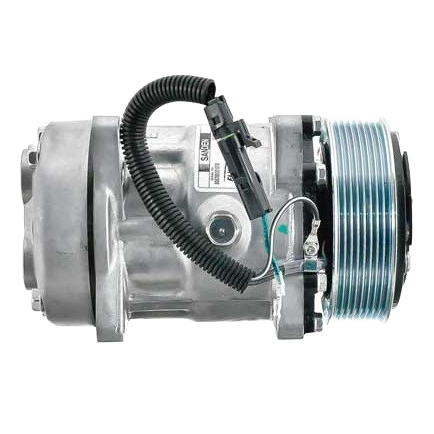

BT5-4864 Compressor – 7H15HD 12V R134a, 119mm 8-Groove Clutch, GV Head

Description

Product Description

The BT5-4864 compressor is built on the proven Sanden 7H15HD platform, making it a versatile solution for mobile air conditioning systems that require flexible mounting and broad fitment compatibility. Its 7-cylinder design and 9.5 cu. in. displacement provide smooth operation and consistent refrigerant flow under varying load conditions.

Additionally, this unit is factory-charged with 200cc of PAG100 oil and configured for R134a refrigerant. The GV head with rear universal O-ring FLX-7 pad (M10) allows adaptable hose routing across multiple vehicle platforms. A 119mm 8-groove serpentine clutch ensures dependable belt engagement and long service life.

Because of its ear-mount (8 long) configuration, clockwise rotation, and integrated diode protection, the BT5-4864 is widely used in bus, truck, and specialty vehicle HVAC systems.

---

Key Features

• Heavy-duty Sanden 7H15HD compressor platform

• 12V operation for mobile HVAC systems

• 7-cylinder design for smooth, reliable performance

• GV head with rear universal FLX-7 O-ring pad fittings

• 119mm 8-groove serpentine clutch

• Ear-mount (8 long) configuration

• Integrated diode protection

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-4864

• Product Name: Compressor

• Compressor Family: 7H15

• Model: 7H15HD

• Application: Multi-Fit Applications

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Ear 8 Long

• Shaft Type: Keyed Shaft

• Head Type: GV

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

• Fitting Size: Pad M10

• Fitting Port Position: Horizontal

• Clutch Diameter: 119mm

• Number of Grooves: 8

• Belt Type: Serpentine

• Factory Oil Charge: 200cc

• Oil Type: PAG100

• Wire Type: 1-Wire Male Packard #12015791 with Diode & Bullet Jumper

• Wire End: T3D, J1

• Diode Protection: Yes

---

Service & Replacement Components

• Replacement Clutch Assembly: 5137

• Replacement Head Assembly: 50003

---

Interchange Numbers

Alliance

• 304014

• 304154

CoolStar

• 330-3074

• 330-3490

Industry ID

• 20-14864

Manex

• 03-00848

Sanden

• 4063

• 4805

• 4864

• 4865

School Bus Manufacturers

• 1887-RR3-005

Trans Air

• 512266

Truck Air

• 03-3708

• 03-3808

Additional Industry & Aftermarket References

• 1401206

• 1410049

• 240-9709

• 300-5505

• 402303

• 4379-RD5108900

• 4379-RD5108900P

• 4522

• 4523

• 4638

• 4710

• 4710SAN

• 4737-4864

• 526374

• 5282

• 6655

• 6675

• 75R86132Q

• 75R89352

• 75R90732A

• 8103

• ABP N83 304014

• ACC4074

• RDHRD5108900P

• RDT75R89352

• ZGG705144

---

Applications

• Bus and coach HVAC systems

• Truck and specialty vehicle air conditioning

• Multi-fit mobile HVAC applications
