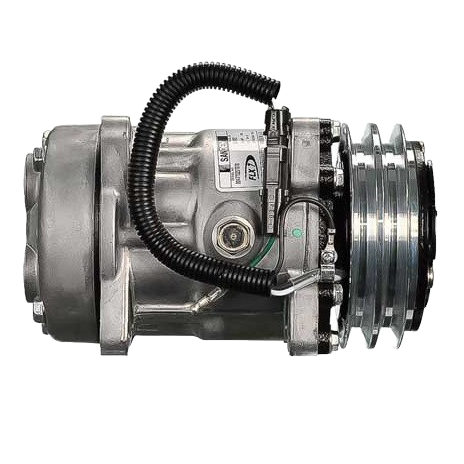

BT5-4862 Compressor – SD7H15HD-FLX7 24V R134a, 125mm 2-Groove Clutch, GV Head

Description

Product Description

The BT5-4862 compressor is built on the proven Sanden SD7H15HD-FLX7 platform, designed specifically for agricultural and off-road equipment requiring flexible mounting and dual-belt drive systems. Its 7-cylinder design and 9.5 cu. in. displacement provide smooth operation and consistent refrigerant flow during continuous-duty operation.

Additionally, this unit is factory-charged with 200cc of PAG100 oil and configured for R134a refrigerant. The GV head with rear universal O-ring FLX-7 pad (M10) allows adaptable hose routing across a wide range of equipment configurations. A 125mm 2-groove clutch, designed for two 1/2″ belts, ensures stable power transfer in demanding mechanical layouts.

Because of its ear-mount (8 long) configuration, clockwise rotation, and integrated diode protection, the BT5-4862 is a trusted replacement option across multiple farm and off-road platforms.

---

Key Features

• Heavy-duty Sanden SD7H15HD-FLX7 compressor platform

• 24V operation for farm and off-road equipment

• 7-cylinder design for smooth, reliable performance

• GV head with rear universal FLX-7 O-ring pad fittings

• Dual-belt 125mm 2-groove clutch (two 1/2″ belts)

• Ear-mount (8 long) configuration

• Integrated diode protection

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-4862

• Product Name: Compressor

• Compressor Family: SD7H15

• Model: SD7H15HD-FLX7

• Application: Farm & Off-Road Applications

• Refrigerant Type: R134a

• Voltage: 24V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Ear 8 Long

• Shaft Type: Long Key Shaft

• Head Type: GV

• Fitting Style: Rear Universal O-Ring FLX-7 Pad

• Fitting Size: Pad M10

• Fitting Port Position: Horizontal

• Clutch Diameter: 125mm

• Number of Grooves: 2

• Belt Type: Two 1/2″ Belts

• Factory Oil Charge: 200cc

• Oil Type: PAG100

• Wire Type: 1-Wire Male Packard #12015791 with Diode & Bullet Jumper

• Diode Protection: Yes

---

Service & Replacement Components

• Replacement Clutch Assembly: 5132 (see note)

• Replacement Head Assembly: 50003

---

Interchange Numbers

Alliance

• 304144

• 304582

CoolStar

• 330-1705

Sanden

• 4862

• 4863

Truck Air

• 03-3712

Additional Industry & Aftermarket References

• 1401204

• 1410048

• 20-14862

• 240-9707

• 300-5509

• 402301

• 4379-RD5108880

• 4379-RD5108880P

• 5287

• 75R89334

• ABP N83 304582

• ACC2705

• RDHRD5108880P

• RDT75R89334

• ZGG705142

---

Applications

• Agricultural equipment

• Construction and off-road machinery

• 24-volt mobile HVAC systems requiring FLX-7 compressors
