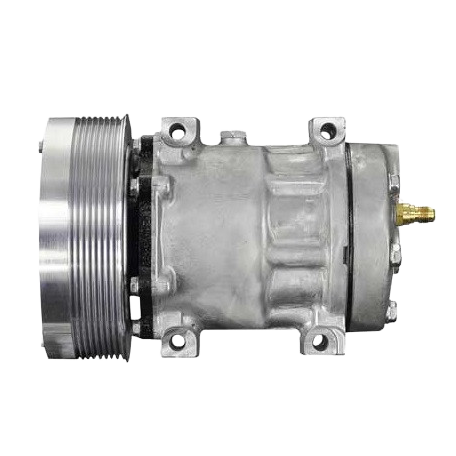

BT5-4840 Compressor – SD7H15-SHD 24V R134a, 152mm 8-Groove Clutch, GK Head

Description

Product Description

The BT5-4840 compressor is built on the rugged Sanden SD7H15-SHD platform, making it well suited for farm and off-road equipment operating in demanding conditions. Its 7-cylinder design and 9.5 cu. in. displacement provide smooth operation and consistent refrigerant flow during sustained duty cycles.

Additionally, this unit is factory-charged with 300cc of PAG100 oil and configured for R134a refrigerant. The GK head with a rear horizontal pad O-ring fitting allows clean hose routing and OE-correct installation in tight engine compartments. A 152mm 8-groove serpentine clutch ensures reliable belt engagement for high-accessory-load applications.

Because of its direct long mounting, clockwise rotation, and heavy-duty construction, the BT5-4840 is a trusted replacement solution across multiple OEM and aftermarket farm and off-road platforms.

---

Key Features

• Heavy-duty Sanden SD7H15-SHD compressor platform

• 24V operation for farm and off-road equipment

• 7-cylinder design for smooth, reliable performance

• GK head with rear horizontal pad O-ring fittings

• Large 152mm 8-groove serpentine clutch

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-4840

• Product Name: Compressor

• Compressor Family: SD7H15

• Model: SD7H15-SHD

• Application: Farm & Off-Road Applications

• Refrigerant Type: R134a

• Voltage: 24V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Direct Long

• Shaft Type: Long Key Shaft

• Head Type: GK

• Fitting Style: Rear Horizontal Pad O-Ring

• Fitting Port Position: Horizontal

• Clutch Diameter: 152mm

• Number of Grooves: 8

• Belt Type: Serpentine

• Factory Oil Charge: 300cc

• Oil Type: PAG100

• Wire Type: 2-Wire Deutsch DT04-2P-E (005, EP04, EP05)

• Diode Protection: None

---

Service & Replacement Components

• Replacement Clutch Assembly: NSS

• Replacement Head Assembly: 5602

---

Interchange Numbers

Alliance

• 304544

Case IH

• 1835106

Caterpillar

• 183-5106

CoolStar

• 330-2365

DTAC

• 01-05840

Industry ID

• 20-04302

• 20-04302-AM

Sanden

• 4302

• 4840

Truck Air

• 03-3747

Additional Industry & Aftermarket References

• 265-6621

• 300-5097

• 300-5103

• 4379-RD5112360

• 4379-RD5112360P

• 501-1179

• 5318

• 58798

• 75R81134

• ABP N83 304544

• ACC3365

• RDHRD5112360P

• RDT75R81134

---

Applications

• Agricultural equipment

• Construction and off-road machinery

• 24-volt mobile HVAC systems requiring SD7H15-SHD compressors
