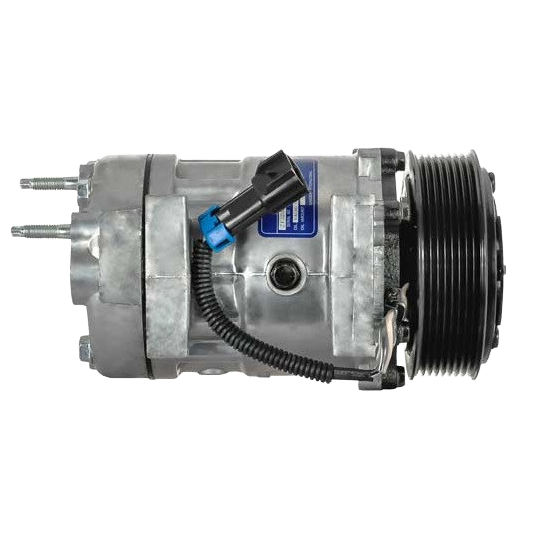

BT5-4816 Compressor – SD7H15HD 12V R134a, 119mm 8-Groove Clutch, GWA Head

Description

Product Description

The BT5-4816 compressor is built on the proven Sanden SD7H15HD platform, providing dependable performance for Navistar truck air conditioning systems operating under continuous duty cycles. Its 7-cylinder design and 9.5 cu. in. displacement ensure smooth operation and consistent refrigerant flow across varying engine speeds.

Additionally, this unit is factory-charged with 300cc of PAG100 oil and configured for R134a refrigerant. The GWA head with a rear Navistar special pad fitting allows OE-correct hose routing and proper system fitment. A 119mm 8-groove serpentine clutch supports stable belt engagement and long service life in fleet and vocational truck environments.

Because of its direct long mounting, clockwise rotation, and integrated diode protection, the BT5-4816 is a trusted replacement option for Navistar truck HVAC applications.

---

Key Features

• Heavy-duty Sanden SD7H15HD compressor platform

• 12V operation for Navistar truck applications

• 7-cylinder design for smooth, reliable performance

• GWA head with Navistar-specific rear pad fittings

• 119mm 8-groove serpentine clutch

• Integrated diode protection

• Factory oil-charged for installation readiness

---

Essential Specifications

• BTRAC SKU: BT5-4816

• Compressor Family: SD7H15

• Model: SD7H15HD

• Application: Navistar Trucks

• Refrigerant Type: R134a

• Voltage: 12V

• Rotation: Clockwise (CW)

• Number of Cylinders: 7

• Displacement: 9.5 cu. in.

• Mounting Type: Direct Long

• Shaft Type: Verify clutch shaft type before installation

• Head Type: GWA

• Fitting Style: Rear Navistar Special Pad

• Fitting Port Position: Horizontal

• Clutch Diameter: 119mm

• Number of Grooves: 8

• Belt Type: Serpentine

• Factory Oil Charge: 300cc

• Oil Type: PAG100

• Wire Type: 2-Wire Female Packard #15300002

• Diode Protection: Yes

---

Service & Replacement Components

• Replacement Clutch Assembly: 5137 / 5176 (see note)

• Replacement Head Assembly: 50004

---

Interchange Numbers

1000004871, 1401407, 20-04816, 3547917C1, 3628700C1, 4544, 4816, 5348, 5348G, 5348QS, 54544, 75R81292A, 75R81292Q, 75R91142, ABP N83 304076, RD-5-16691-0P, 59-8328AP

---

Applications

• Navistar on-road trucks

• Fleet and vocational truck HVAC systems

• 12-volt mobile air conditioning applications
